Downdraft Table vs Portable Fume Extractor: Which Is Right?

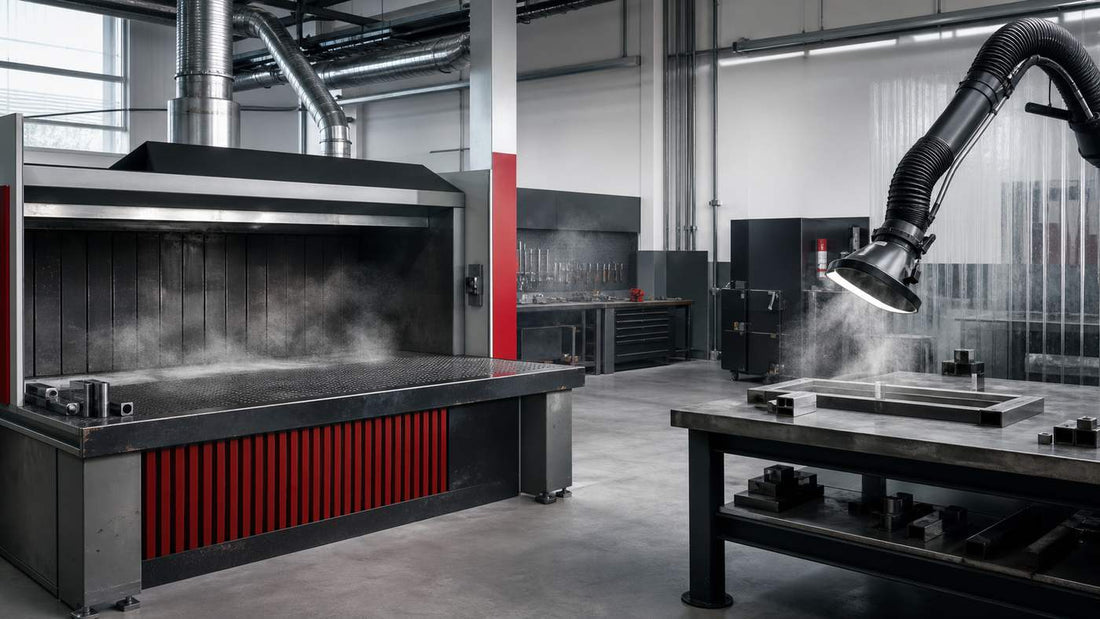

A downdraft table and a portable fume extractor both capture contaminants close to where they are generated, but they control the plume in different ways. A downdraft table pulls dust or fume down through the work surface. A portable extractor relies on an operator-positioned hood or arm near the source. The best choice depends on the process, part size, dust hazard, workstation layout and how consistently the capture device can be positioned.
Quick answer
Choose a downdraft table when work is performed over a defined surface and dust, smoke or debris can be pulled downward without the part blocking the airflow. Choose a portable fume extractor when the source moves, parts are too large for a table, or a hood can be kept close to the weld or process. For combustible metal dust, the dry-versus-wet collector decision requires a documented hazard assessment; do not select equipment from the material name alone.
Downdraft table vs portable fume extractor
| Decision factor | Downdraft table | Portable fume extractor |
|---|---|---|
| Capture method | Air moves down through an open or perforated work surface. | A movable hood or arm captures the plume close to its origin. |
| Best workstation | Repeatable bench work performed inside the active table area. | Changing stations, larger parts or work where the source moves. |
| Operator action | The part and task must stay within the effective capture zone. | The hood must be repositioned as the work moves. |
| Typical processes | Grinding, sanding, deburring and certain welding or cutting applications. | Welding, soldering and localized processes with a controllable plume. |
| Part-size limit | The part must fit without blocking too much of the capture surface. | The extractor can follow work that does not fit on a table. |
| Dust handling | Dry, wet or ducted configurations may be available for different hazards. | Filter type, spark control, dust capacity and suitability vary by unit. |
| Layout | Becomes a dedicated workstation and needs floor space. | Can serve multiple work areas if repositioning and setup remain practical. |
How a downdraft table captures dust and fume
A downdraft table combines the work surface and capture hood. The blower draws contaminated air downward through the table before the air reaches the worker's breathing zone. This can be effective for bench-scale grinding, deburring and other processes that naturally release particles near the surface.
The table is not a force field. Capture drops when the source sits outside the active area, cross-drafts carry the plume away, the filter loads, or a large part covers the open surface. CCOHS notes that large workpieces can block downdraft airflow and create high-velocity areas that may affect welding shielding gas. Table size, open area and process position must therefore be evaluated together.
How portable source capture works
A portable fume extractor places a hood near the weld or emission point and pulls the plume into a hose and filtration system. The key advantage is flexibility: the hood can follow a long seam, move between cells or reach a part that cannot sit on a downdraft table. The key limitation is the same flexibility—the extractor only works as intended when the hood stays close enough and is aimed correctly.
NIOSH evaluations of mobile welding-fume controls show that source capture can reduce exposure when the hood is positioned near the weld. In one site-specific evaluation, two tested units achieved acceptable capture readings at a 12-inch test distance while another did not. That result should not be treated as a universal spacing rule; it demonstrates why airflow and hood position need to be verified for the exact unit and process.
Which system fits welding, grinding and deburring?
Welding
A portable extractor is often the practical starting point when the weld path moves across large fabrications. An articulating arm or hood can follow the work, provided operators reposition it consistently. A downdraft welding station can reduce the need to chase the plume on repeatable small-part work, but the fixture or part must not defeat the downward airflow. Shielding gas stability also needs to be checked.
Grinding and deburring
A downdraft table is usually easier to integrate when operators grind or deburr parts over one bench. Dust is drawn away from the breathing zone and the work surface becomes a defined capture area. Review spark handling, abrasive load, filter loading and housekeeping. A welding-fume extractor should not be assumed suitable for a heavy stream of grinding dust merely because it has a flexible arm.
Mixed work and oversized parts
When jobs and part sizes change frequently, a portable extractor offers more reach. If a shop performs both repeatable bench grinding and mobile welding, the right answer may be two purpose-matched controls rather than forcing one unit to handle every process. Ambient filtration can supplement source capture, but it does not replace controlling the contaminant where it is generated.
Dry vs wet downdraft tables for metal dust
Dry tables route air through dry filtration. Wet downdraft tables use water to capture and control particulate inside equipment designed for that service. The word wet does not make every combustible-dust application automatically safe, and a self-contained dry table is not automatically acceptable for every metal dust.
OSHA has documented the recognized fire and explosion hazard of using dry downdraft equipment for combustible metal dust without suitable protection. Another OSHA case describes an employer that used an aluminum-only downdraft table with a wet collector designed for combustible metal dust. These examples reinforce a selection process: identify every alloy and process, determine whether the generated dust is combustible, review incompatibilities and obtain written confirmation that the equipment and installation match the hazard.
Do not mix materials in a collector unless the system has been specifically reviewed for that mixture. Aluminum, magnesium, titanium, steel, coatings and abrasive media can create different hazards. Housekeeping, sludge handling, water chemistry, inspection and maintenance are part of the control—not afterthoughts.
A practical selection workflow
- Define the contaminant. List every base metal, coating, consumable, abrasive and process that can enter the system.
- Map the source movement. Record whether the emission point stays over one work surface or moves across the part and shop.
- Measure the work envelope. Include the largest part, fixtures, operator access and how much of a downdraft surface could be blocked.
- Separate fume from heavy dust. Estimate generation rate and decide whether the application is mainly welding fume, grinding dust, sparks or a combination.
- Review hazards and discharge. Address combustible dust, fire and explosion protection, recirculation, make-up air and applicable regulations.
- Verify capture in use. Confirm hood position or table capture with the real process, then document filter, airflow and maintenance checks.
Source-capture equipment to evaluate
These are real Machinist's Vault catalogue products. Final selection requires process, material, duty cycle, power, airflow, filter and hazard information.
Mini DD Downdraft Table
A compact dry downdraft workstation for light-to-medium-duty applications where parts fit inside a defined bench area.
View Mini Downdraft Table
Monsoon Mini Wet Downdraft Table
A compact wet downdraft option to evaluate when the documented dust hazard calls for purpose-designed wet collection.
View Mini Wet Table
FRED Jr. Portable Fume Extractor
A movable source-capture option for welding and other compatible fume applications where the hood needs to follow the work.
View Portable ExtractorInformation to send with a recommendation request
- processes performed and number of operators or stations;
- all metals, coatings, consumables and abrasive products;
- part dimensions, weight and photos of the working position;
- hours per shift and estimated dust or fume loading;
- available voltage, floor space and ducting constraints;
- whether air will be discharged outdoors or considered for recirculation;
- existing exposure, airflow, combustible-dust or fire-risk assessments;
- desired mobility and any future capacity changes.
Downdraft table and fume extractor FAQ
Is a downdraft table better than a portable fume extractor?
Neither is universally better. A downdraft table suits repeatable work over a defined surface. A portable extractor suits moving sources, large parts and work that changes location. The better control is the one that captures the real plume consistently without creating a new process hazard.
Can a downdraft table be used for welding?
Yes, when the table is designed for the application and the part does not block effective capture. Verify that airflow prevents the plume from reaching the breathing zone and does not disturb shielding gas. Review sparks, filters, combustible dust and recirculation separately.
Should aluminum grinding use a wet downdraft table?
Aluminum dust can be combustible, but equipment selection cannot be based on the word aluminum alone. A qualified hazard assessment should address the alloy, process, dust characteristics, other materials, equipment listing or design, sludge management and applicable requirements. Do not substitute a generic dry table without written confirmation.
How large should a downdraft table be?
The active area must contain the process and support the largest workpiece without blocking too much open surface. Include fixtures and operator access, then confirm face or capture performance with the real work in place.
Can a portable welding fume extractor collect grinding dust?
Only if the manufacturer confirms the unit is suitable for the dust, loading, sparks and hazard. Heavy grinding dust can overload filters or require different collection, spark-control and disposal features than welding fume.
Does a high-efficiency filter make indoor recirculation safe?
Filter efficiency is only one factor. Recirculation also depends on contaminant type, capture performance, gas or vapour hazards, filter condition, monitoring and legal requirements. Obtain a site-specific review before returning filtered air to the workspace.
