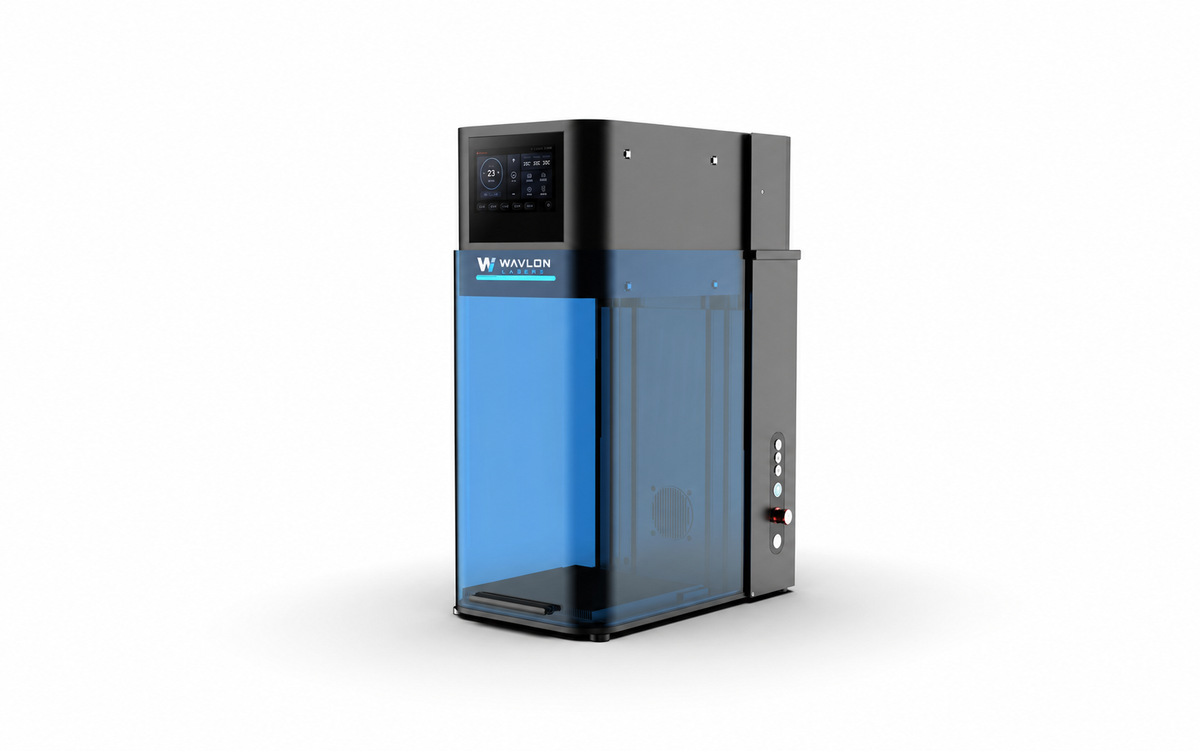

Wavlon Pulse Duo — Dual-Laser Marking Machine (Fiber + Blue)

Wavlon Pulse Duo is a dual-source laser marking machine that combines a fiber laser and a 40 W blue diode laser in a single head — one compact benchtop system that marks metals, engineered plastics and more, with color marking on the flagship MOPA tier.

  • Effective marking area: up to 320 × 320 mm (F300 field lens)
  • Max engraving speed: up to 10,000 mm/s (material dependent)
  • Marking accuracy: 0.01 mm
  • Rotary support: D50 / D60 rotary axis compatible
  • Vision: 4K monocular camera
  • Safety: Class 4 — OD6+ goggles, emergency stop, safety relay, three-color indicator included
  • Footprint / weight: 50 × 32 × 60 cm, 22 kg net

Configurations

  • Duo 30 — 30 W fiber + 20 W blue. Entry dual-laser tier.
  • Duo 50 — 50 W fiber + 40 W blue. More power for faster deep marking.
  • Duo 60 MOPA — 60 W MOPA fiber + 40 W blue. Flagship — MOPA adjustable pulse enables color marking on stainless steel and fine annealing control. GZTECH 60 W MOPA + X-Photonics 40 W blue module.

Supports BMP, JPG, DXF, AI, DST and more; Windows 7–11 & macOS. 12-month warranty.

Application configuredCanada & US deliveryCompliance confirmed on quote
Select configuration
From CAD$7,690.00
Call 905-361-7999

Final price, electrical configuration, documentation, freight and lead time are confirmed in the formal quote. Zero-dollar listings are not purchasable online.

Up to 320 × 320 mmWorking area
Fiber + blue diode; MOPA on Duo 60Laser source
Up to 10,000 mm/sProcessing speed
12 monthsWarranty reference
Technical overview

Core machine specifications

Specifications reflect the supplier documentation available for this product family. The formal quote locks the exact source, power, electrical and option configuration.

Working areaUp to 320 × 320 mm
Laser configurationFiber + blue diode; MOPA on Duo 60
StructureDual-source benchtop marker
Primary applicationsMetal, plastic, deep engraving and colour marking
Control & filesCommon vector and image formats
Supply configurationConfirmed for selected source
Complete product information

Designed for real shop work

Wavlon Pulse Duo is a dual-source laser marking machine that combines a fiber laser and a 40 W blue diode laser in a single head — one compact benchtop system that marks metals, engineered plastics and more, with color marking on the flagship MOPA tier.

  • Effective marking area: up to 320 × 320 mm (F300 field lens)
  • Max engraving speed: up to 10,000 mm/s (material dependent)
  • Marking accuracy: 0.01 mm
  • Rotary support: D50 / D60 rotary axis compatible
  • Vision: 4K monocular camera
  • Safety: Class 4 — OD6+ goggles, emergency stop, safety relay, three-color indicator included
  • Footprint / weight: 50 × 32 × 60 cm, 22 kg net

Configurations

  • Duo 30 — 30 W fiber + 20 W blue. Entry dual-laser tier.
  • Duo 50 — 50 W fiber + 40 W blue. More power for faster deep marking.
  • Duo 60 MOPA — 60 W MOPA fiber + 40 W blue. Flagship — MOPA adjustable pulse enables color marking on stainless steel and fine annealing control. GZTECH 60 W MOPA + X-Photonics 40 W blue module.

Supports BMP, JPG, DXF, AI, DST and more; Windows 7–11 & macOS. 12-month warranty.

Application-matched configuration

Power, working area, optics, table, camera, rotary and cooling options are selected around the material and throughput.

North American electrical option

120V / 60Hz single-phase production is available on referenced CO2 platforms. Exact electrical requirements are confirmed before order.

Factory and remote support

Online technical support is available for commissioning and operation, with documentation supplied for the selected configuration.

Freight planned before purchase

Machine dimensions, crate weight, destination and unloading needs are reviewed so the formal quote includes an appropriate delivery plan.

Canadian compliance notice

Wavlon/Jowuey machines do not currently carry a blanket CSA or UL certification. Available CE/FDA documentation is not a substitute for CSA/UL approval. Any required field evaluation and the final electrical/safety documentation package must be confirmed before installation. No certification claim is made unless it has been completed for the delivered configuration.

Questions before ordering

Machine selection FAQs

How is the final laser configuration selected?
We review your materials, maximum dimensions, thickness, desired mark or cut quality, production volume and electrical service. The quote then identifies the machine platform, laser source, power, table and selected options.
What is included in the quoted price?
The formal quote lists the machine configuration, included accessories, documentation, warranty terms, lead time and freight assumptions. Destination delivery and unloading requirements are confirmed separately where needed.
Can these machines be supplied for North American power?
Referenced CO2 platforms can be built for 120V / 60Hz single phase. Larger or higher-power configurations may require different service. The final electrical nameplate and plug requirements are confirmed before production.
Are these machines CSA or UL certified?
Not as a blanket product line today. We will identify available documentation and discuss any required Canadian field evaluation during quoting. A machine is never represented as certified unless certification has been completed for that supplied configuration.
Can I add a rotary, camera or upgraded table?
Available options vary by platform. Common options include rotary axes, camera systems, honeycomb tables, Wi-Fi control and autofocus upgrades. Include your application details in the quote request so compatible options can be specified.

Configure Wavlon Pulse Duo — Dual-Laser Marking Machine (Fiber + Blue)

Tell us what you cut, engrave, mark, weld or clean. We’ll prepare the right machine configuration and delivery quote.
