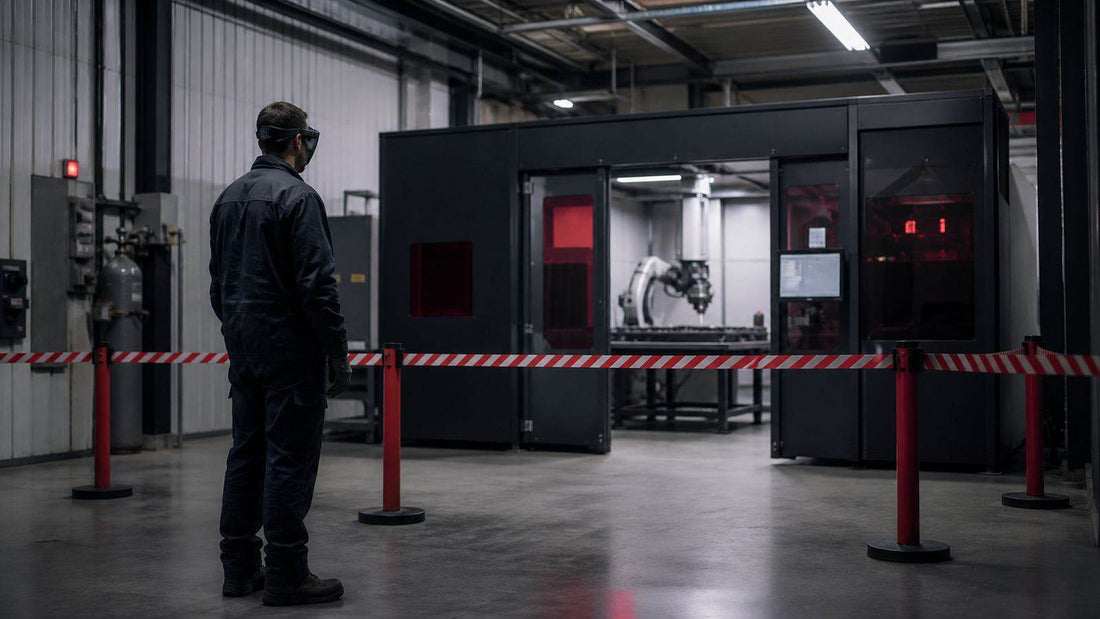

Controlled industrial laser work area with operator outside the guarded cell — representative illustration

How to Choose Laser Safety Glasses: Wavelength, OD & Fit

Laser safety glasses must be selected for the actual laser hazard—not by lens colour, machine wattage or a generic “fiber laser” label. The required protection depends on every emitted wavelength, operating mode, accessible exposure, maximum permissible exposure and the optical density calculated for the task. Fit, coverage and visible light transmission matter only after the correct wavelength and OD protection are established.

Controlled industrial laser work area with operator outside the guarded cell — representative illustration
Editorial guide header — representative illustration. It does not depict a specific Machinist's Vault product or an approved safety layout.

Quick answer

Obtain the laser's wavelength or wavelength band, continuous-wave or pulsed operating mode, maximum output and task geometry. Have the required optical density and controlled-area plan determined by the facility's Laser Safety Officer or another qualified person. Then choose eyewear whose permanent label covers every required wavelength at or above the calculated OD, with suitable visible light transmission, side coverage, impact protection, fit and condition.

Critical safety boundary: This guide does not calculate optical density, maximum permissible exposure or nominal hazard distance and does not approve PPE for a laser. Eyewear is the last line of defence. Enclosures, interlocks, beam stops, restricted access, procedures, training and fume controls remain necessary. Never use a product because its colour or marketing description “looks right.”

What optical density means

Optical density (OD) describes how strongly a filter attenuates radiation at a specified wavelength. It is logarithmic: OD 3 corresponds to a thousand-fold reduction and OD 6 to a million-fold reduction at the stated wavelength. That does not make OD 6 universally safer than OD 3. A filter can have high OD in one wavelength band and little useful attenuation outside it.

OSHA's laser guidance states that eyewear must be labelled with the optical density and wavelengths for which protection is provided. It also identifies laser wavelength, power or pulse energy, exposure conditions, required OD, visible transmission, fit, peripheral protection and material condition as selection factors.

Conceptual laser protection layer stopping energy before the protected zone — representative illustration
Conceptual attenuation and selection factors — representative illustration. It is not an OD calculation or product certification.

The six inputs needed before choosing eyewear

Input Why it matters Where to verify it
Wavelength(s) A filter protects only in its documented wavelength band; systems can emit more than one wavelength Laser nameplate, manual, manufacturer data and hazard assessment
Operating mode Continuous-wave, pulsed and Q-switched exposures are evaluated differently Laser specification and process settings
Maximum accessible output Power, pulse energy, duration, repetition and beam size affect the required protection Manufacturer data and measured or assessed worst-case condition
Exposure geometry Direct, specular and diffuse paths create different hazards Task-specific hazard analysis and controlled-area review
Required OD The selected filter must meet or exceed the calculated attenuation at every required wavelength Laser Safety Officer or qualified calculation using the current standard
Other hazards Impact, spatter, fumes, electrical hazards and poor visibility may require additional protection Workplace hazard assessment and applicable PPE program

Why laser wattage alone is not enough

Two systems with the same rated wattage can have different wavelengths, beam delivery, pulse characteristics, enclosures and accessible exposure. Conversely, eyewear labelled for 1064 nm is not automatically suitable for every fiber-laser welding task. The required OD is calculated from the credible exposure and maximum permissible exposure, not copied from another shop or selected from a wattage chart.

Visible light transmission, colour and task visibility

Visible light transmission (VLT) indicates how much visible light passes through the filter. Lower VLT can make the work area darker, increase eye fatigue and obscure hazards, so lighting and task visibility must be assessed. However, a brighter lens is never a substitute for the required OD. OSHA explicitly notes that adequate optical density at the laser wavelength must not be sacrificed for higher visible transmission.

Lens colour is a consequence of filter technology, not a safety rating. Read the wavelength and OD markings rather than choosing by tint.

Frame coverage and prescription glasses

The filter must protect the credible viewing directions, including peripheral exposure. The frame should remain secure during the task and should not open side gaps when the operator turns or looks down. Workers who wear prescription glasses need a compatible over-spec frame or properly specified prescription laser eyewear; ordinary clear safety glasses underneath do not add laser attenuation.

Inspection, cleaning and replacement

  1. Read the marking before each use. Confirm the eyewear ID, wavelength band and OD against the task authorization.
  2. Inspect the filter. Remove eyewear from service if it shows cracks, crazing, pitting, deep scratches, coating damage or heat damage.
  3. Inspect the frame. Check side protection, hinges, strap, prescription insert and any path that could permit peripheral exposure.
  4. Clean as directed. Use materials compatible with the filter and coating; aggressive solvents or abrasives can damage protection.
  5. Control storage. Keep eyewear in a labelled case away from heat, chemicals and mixed laser stations.
  6. Reassess after change. A new source, wavelength, optic, power, pulse setting or task requires a fresh hazard review.

Laser safety eyewear to evaluate

These are real catalogue products. They are not interchangeable. Confirm the product's current certificate, wavelength/OD label and frame choice against a documented hazard assessment before ordering or use.

P5K01 laser safety glasses for fiber laser welding

P5K01 Laser Safety Glasses

Catalogue-listed OD 7+ at 1000–1100 nm, with direct-wear and over-prescription frame options.

View P5K01 Details
P5M02 grey laser safety glasses for fiber laser welding

P5M02 Laser Safety Glasses

Grey polycarbonate filter with broader catalogue-listed wavelength coverage and 25% visible light transmission.

View P5M02 Details
P1P23 laser welding face shield

P1P23 Laser Welding Face Shield

Face-shield option listed for higher-coverage laser-welding applications; confirm whether additional eyewear or PPE is required.

View Face Shield
Request an Eyewear RecommendationBrowse Laser & Welding PPE

Information to send with a request

  • laser manufacturer, model and manual;
  • every emitted wavelength or wavelength band;
  • continuous-wave or pulsed mode, maximum power or pulse parameters;
  • required OD from the LSO or qualified hazard assessment;
  • process type, accessible exposure and controlled-area layout;
  • prescription-glasses requirement and preferred frame style;
  • impact, spatter, face, respiratory and visibility requirements.

Laser safety glasses FAQ

What optical density do I need for laser safety glasses?

The required OD must be calculated for the actual wavelength, maximum credible exposure, operating mode, beam parameters and maximum permissible exposure. It should be specified by the facility's Laser Safety Officer or another qualified person, not chosen from laser wattage alone.

Are OD 7 laser glasses better than OD 6?

Only within the wavelength band stated on the label, and only if the product and exposure conditions support that rating. Higher OD can also reduce visible light transmission. The correct choice meets the calculated OD at every required wavelength while preserving safe task visibility.

Can I use fiber laser glasses for a CO2 laser?

Not unless the permanent label and certification explicitly cover the CO2 laser wavelength at the required OD. Fiber lasers and CO2 lasers operate in very different wavelength regions, so eyewear for one should never be assumed to protect against the other.

Do regular welding helmets protect against fiber lasers?

Do not assume they do. Welding shades are designed around arc-welding hazards, while laser protection is wavelength- and OD-specific. Use only equipment documented and approved for the laser hazard, with any additional welding and impact protection required by the task.

Can laser safety glasses replace an enclosure?

No. Engineering controls such as enclosures, interlocks, beam stops and restricted access receive priority. Eyewear is supplementary protection when a hazardous exposure remains possible.

When should laser safety glasses be replaced?

Remove them from service when the filter or frame is damaged, markings are unreadable, coatings are degraded, fit or peripheral protection is compromised, or the laser/task changes beyond the approved specification. Follow the manufacturer and PPE program requirements.
