Made in Italy
Core punches and dies produced by experienced Italian tooling specialists.
Precision Press Brake Tooling
Amada Style 1V Insert Press Brake Die 88° — V20, 100 T/m (3164)

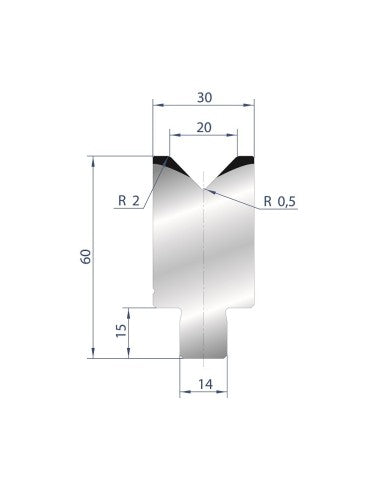

This product is the 3164 - Die - 88°, a 1V Insert die used in press brake tooling for precise bending operations. It is suitable for use with Amada style press brakes. The die is made from quenched C45 steel, ensuring durability and strength. The height of the die is 60 mm with an angle of 88°. It features 1 cavity and a V opening of 20 mm. Length options available are 835 mm, 805 mm, and a fraction length of 415 mm. For any questions or additional assistance, please contact our knowledgeable staff. Product details include a maximum tonnage of 100 T/m. A DXF file is available for download to facilitate tooling setup.
Italian-made tooling, selected for production confidence
Our core punches and dies are manufactured in Italy from premium tool steel, with hardened and precision-ground working profiles that support repeatable bending and dependable setup.
Quantity
Overall Product Specifications
- Material: Core punches and dies are manufactured in Italy from premium hardened tool steel for durability and wear resistance
- Precision: CNC-ground working surfaces for accurate, repeatable bends
- Compatibility: Available for common North American and European press brake tooling systems
- Formats: Full-length, segmented, and custom configurations are available
Shipping
Press brake tooling is coordinated through our vendor network. Standard and custom lead times are confirmed with your quotation based on profile, length, segmentation, interface, and application requirements.
Engineered for Repeatable Bending
The Gold Standard in Press Brake Tooling
See the manufacturing quality behind our press brake tooling program. Core punches and dies are made in Italy from premium tool steel, then hardened and precision-ground for wear resistance, consistent bend geometry, and confident production setup.
Premium Tool Steel
Material and heat treatment selected for strength, wear life, and demanding forming cycles.
Precision-Ground Profiles
Accurate working geometry supports repeatable bend angles, radii, and part quality.
Application-Matched Support
Tooling interface, tonnage, material, length, and bend geometry reviewed before quoting.
Complete Your Tooling Setup
You May Also Like
Got Questions?
Frequently Asked Questions
Get practical guidance on compatibility, tooling selection, custom configurations, materials, and lead times.
What types of press brake tooling do you offer?
We supply punches, dies, adapters, holders, radius tooling, joggle tooling, adjustable dies, cabinets, and supporting accessories for common press brake systems.
Are your tools compatible with all press brake machines?
Compatibility depends on the tooling interface, machine clamping system, working height, tonnage, and geometry. Share your press brake make, model, and existing tooling dimensions so our team can confirm the correct fit.
Can you supply custom press brake tooling?
Yes. Custom punches, dies, special profiles, segmented lengths, and application-specific tooling can be quoted from a drawing, sample, or forming requirement.
What are your tooling products made from?
Our core punches and dies are manufactured in Italy from premium tool steel. Material grade and heat treatment are selected for the tooling profile and application, with hardened and precision-ground working surfaces supporting repeatable bending and wear resistance.
Do you offer support for selecting the right tooling?
Yes. We can review material thickness, tensile strength, bend angle, inside radius, part geometry, press capacity, and tooling interface to recommend a suitable configuration.
What is your lead time and shipping policy for tooling?
Press brake tooling is supplied through our vendor network. Standard and custom lead times are confirmed with your quotation based on profile, length, segmentation, interface, and application requirements.
