3230 - 1V Dies - 84°
3230 - 1V Dies - 84°
3230 - 1V Dies - 84°

3230 - 1V Dies - 84°

Length
Height
Angle

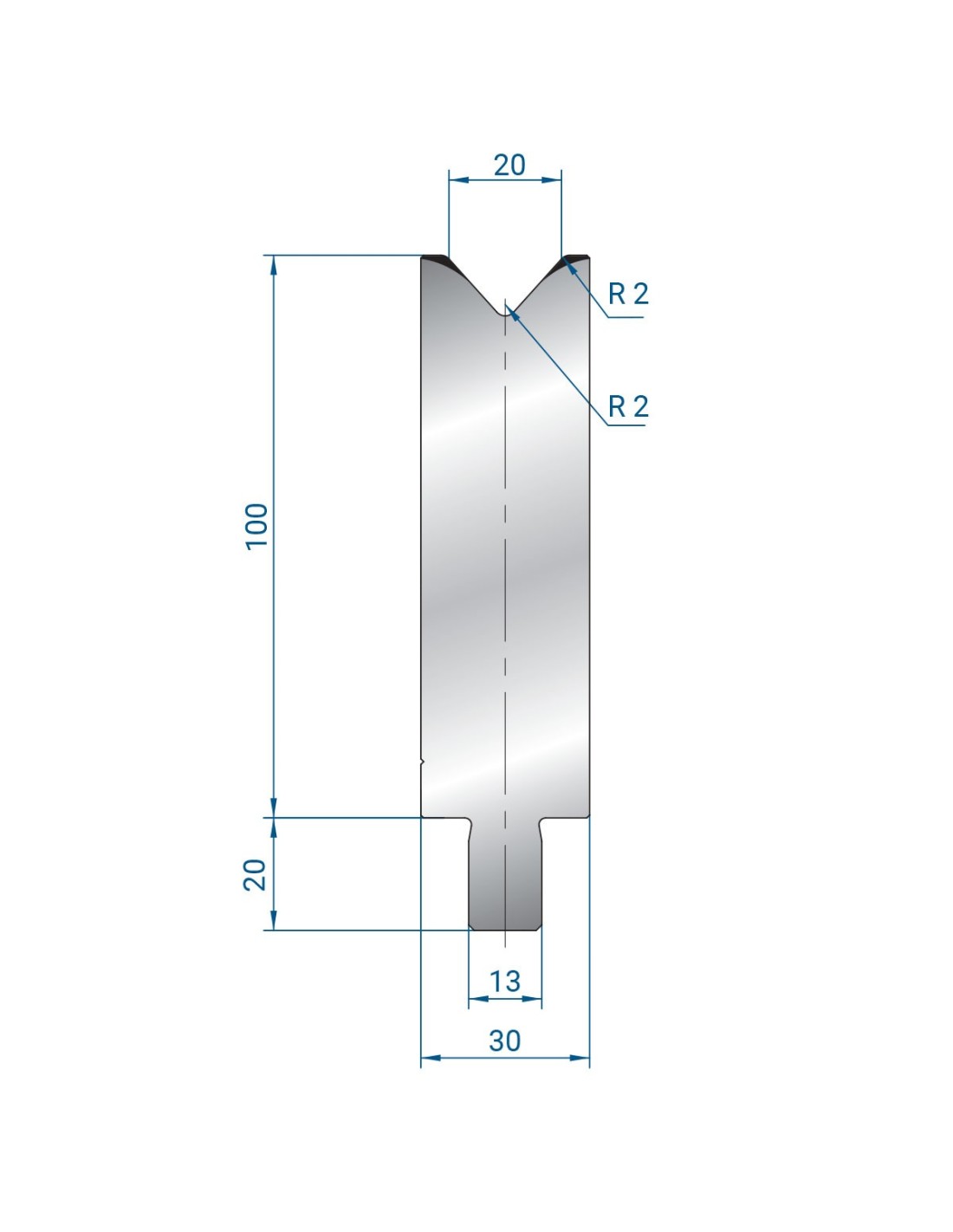

The 3230 - 1V Dies - 84° is a press brake tooling die designed for precision bending applications. It features a height of 100 mm and an angle of 84°. This tooling is made from tempered 42CrMo4 material, ensuring durability and high performance. It is specifically manufactured for use with Trumpf press brake machines. Available length options include 500 mm, 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, 50 mm, 100 mm, 200 mm, 300 mm, 550 mm, and multiple fractional lengths (Fraz. 1050, 1250, 2050, 2550, 3050, 4050). For any questions or additional information, please contact our support team. A downloadable DXF file of the product is available for convenience.

Overall Product Specifications

Material: High-grade hardened tool steel (42–48 HRC) for durability and wear resistance

Precision: CNC ground surfaces with ±0.01 mm tolerance for repeatable accuracy

Heights: Standard tooling heights (100–120 mm) with options for custom sizes

Form: Available in full-length or segmented pieces for easy setup and changeover

Shipping

Orders for press brake tooling ship within 1–2 weeks, depending on stock availability. In-stock items are dispatched quickly our warehouses, while custom or backordered items may take longer with lead times confirmed after purchase.

The Gold Standard in Press Brake Tooling

Eurostamp Tooling, a leading Italian manufacturer of high-quality press brake tooling, has partnered with Machinist’s Vault to offer precision punches, dies, and adapters across North America. This collaboration ensures fast local access to professional Press Brake tooling with expert support and reliable fulfillment.
Poster

Press Brake Tooling That Delivers

High-quality press brake tooling is essential for precision bending and long-term performance. Crafted from premium steel, induction hardened to 55–60 HRC, and finished with fine grinding, these punches, dies, and adapters are built for durability and accuracy. Now available through Machinist’s Vault, a full range of European-style press brake tooling is ready to ship across North America. Whether you need standard or custom solutions, you’ll get expert-backed support, fast fulfillment, and tooling you can trust for every bend.

You May Also Like

Available both online & offline
1293 - Punch - 60°
1293 - Punch - 60°

1293 - Punch - 60°
1412 - Punch 26°

1412 - Punch 26°
1412 - Punch 26°

1412 - Punch 26°
1412 - Punch 26°

1412 - Punch 26°
$0.00

Got Questions?

Frequently Asked Questions

What types of press brake tooling do you offer?

We carry a wide range of punches, dies, adapters, and accessories—including European Style (ESO) tooling. Our inventory includes standard profiles and specialty tools for air bending, bottom bending, hemming, and more.

Are your tools compatible with all press brake machines?

Our tools are designed to fit most European-style press brakes. We carry a wide range of standard profiles, including Amada/Promecam, Trumpf, Bystronic, Wila, ESH, and LVD styles. If you’re unsure about compatibility, simply send us your machine specs—we’ll confirm fitment or recommend the right adapter. We also offer custom tooling solutions tailored to your specific machine and forming needs.

Can you supply custom press brake tooling?

Yes, we work with trusted tooling partners to offer custom punches and dies based on your design or application. Lead times vary based on complexity. Contact us to get a quote.

What are your tooling made from?

All of our press brake tools are made from high-grade tool steel, induction hardened to 55–60 HRC, and precision-ground for consistent accuracy and long life.

Do you offer support for selecting the right tooling?

Yes. Whether you’re forming aluminum, stainless steel, or mild steel, we can guide you on punch and die selection, tonnage requirements, and bend radius considerations.

What’s your lead time and shipping policy for tooling?

We stock many tools in our warehouse for fast shipping across North America. For custom or out-of-stock items, we’ll provide an estimated lead time at checkout or by email.
