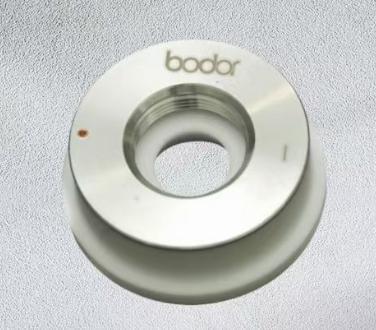

Bodor® Compatible Ceramic Rings for Fiber Laser Cutting Heads Bodor Style Ceramic Rings

Bodor® Compatible Ceramic Rings for Fiber Laser Cutting Heads

Name: Bodor® Compatible Ceramic Rings for Fiber Laser Cutting Heads
Brand: Machinist's Vault
SKU: MV-BD-CR-D32-M14
Price: 21.0 CAD
Availability: InStock

Machinist’s Vault Bodor® compatible ceramic rings provide electrical insulation and structural support between the laser head and nozzle assembly.

Manufactured from high-strength ceramic material, these rings are designed to withstand high temperatures and electrical loads in industrial fiber laser cutting systems.

Available in D28 M11, D31 M11, and D32 M14 configurations to match Bodor cutting head specifications.

Benefits

High thermal resistance
Electrical insulation stability
Precision fit for Bodor® cutting heads
Durable under high-power operation

Bodor® Compatible Ceramic Rings for Fiber Laser Cutting Heads

Built for Heat & Industrial Use

Protects Cutting Head Components

Supports Stable Cutting Performance

Precision OEM-Compatible Fit

$21.00

Per Ring

Choose Your Size

Title

Size (mm)/Thread - OEM Ref

D32 M14

D28 M11

D31 M11

Receive Bulk Discount

Title

1 Ring

(No Discount)

$21.00

($27.96 per lens)

2 Rings

(10% Discount)

$21.00

($31.50 per lens)

Fiber Laser Rings for Cutting Head Performance & Protection

Engineered to maintain alignment, sealing integrity, and component stability in industrial fiber laser systems.

Thermal & Mechanical Resistance

Designed to withstand heat, vibration, and continuous cutting cycles.

Operational Stability

Supports stable cutting conditions by maintaining proper component positioning.

Precision Fit & Alignment

Manufactured to tight tolerances for consistent installation and reliable performance.

Extended Service Life

Smooth internal surfaces help reduce spatter buildup, supporting longer nozzle life and more consistent cutting quality over time.

OEM-compatible fiber laser nozzles.
Brand references are used for compatibility identification only.

WHAT ARE FIBER LASER RINGS?

Fiber laser rings are critical internal components used inside laser cutting heads to perform key functions such as:

Electrical insulation
Gas sealing
Nozzle and component retention
Alignment stability
Vibration resistance

Each ring type serves a specific purpose, but together they ensure consistent cutting quality, reduced downtime, and protection of high-value cutting head components.

Ceramic Rings

(Insulating Rings)

Electrically isolates nozzle
Prevent electrical arcing
Support nozzle alignment under heat

Used for: Electrical insulation & Stability

O-Rings

(Sealing Rings)

Create gas-tight seals
Maintain assist gas pressure
Prevent leaks and contamination

Used for: Gas sealing & pressure stability

Locking Rings

(Retention Rings)

Secure nozzles and components
Prevent loosening from vibration
Maintain concentric alignment

Used for: Mechanical retention & stability

FAQs

Got questions? We’ve got answer.

Still unsure which ring you need?

Contact our team with a photo, part number, or cutting head model and we’ll help you find the correct replacement quickly.

Which type of ring do I need?

The correct ring depends on its function:

Ceramic rings provide electrical insulation and thermal stability

O-rings create gas-tight seals and maintain assist gas pressure

Locking rings secure nozzles and internal components in place

If you’re unsure, send us a photo or part number and we’ll help identify the correct ring.

How often should fiber laser rings be replaced?

Rings should be inspected during routine maintenance or nozzle changes and replaced if you notice cracking, deformation, leaks, thread wear, or alignment issues. Proactive replacement helps prevent cutting head damage and downtime.

Do worn rings affect cut quality?

Yes. Damaged or worn rings can cause gas leaks, nozzle misalignment, electrical arcing, and unstable cutting conditions, leading to poor edge quality and inconsistent kerf width.

Are these rings compatible with major fiber laser cutting heads?

Yes. Machinist’s Vault rings are designed to be compatible with cutting heads from major manufacturers such as Precitec®, Raytools®, Amada®, Trumpf®, Bodor®, and Bystronic®. Always verify dimensions for your specific model.

Are these original OEM parts?

No. These are OEM-compatible replacement rings designed to meet or exceed original equipment specifications. They offer the same fit and performance without OEM pricing.
