Protects critical optics
Acts as a replaceable barrier against spatter, smoke, dust and process debris.

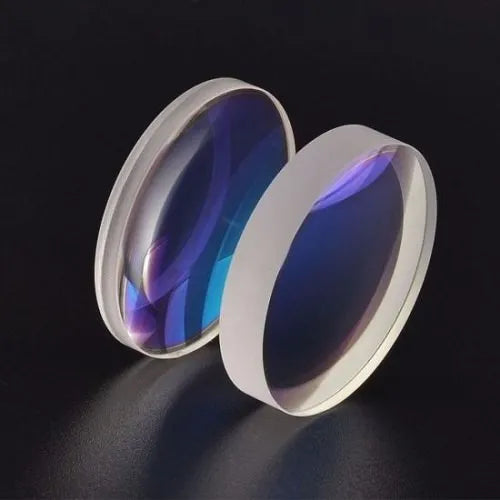

Precision-Crafted Protective Windows for Fiber Laser Cutting, Welding, and Cleaning Heads
Protect your investment and maintain beam integrity with Machinist’s Vault Fiber Laser Protective Windows — engineered for high-performance laser systems across cutting, welding, and cleaning applications. Built from premium Fused Silica, each circular window is AR coated for maximum transmission in the 900-1100nm range, ideal for fiber laser operations.
✅ Key Specifications:
- Material: Fused Silica
- Shape: Circular
- Roundness: ≤0.02mm
- Bevel Angle: 0.3-0.5mm
- Optical Finish: 40-20
- AR Coating Range: 900-1100nm
- Transmittance: 99.98%
- Diameter Tolerance: -0.1mm
- Thickness Tolerance: ±0.1mm
🔧 Cutting head compatibility
Find your window size below, then choose the power rating that matches your laser source.
| Window size (mm) | Compatible cutting heads |
|---|---|
| 21.5 x 2 | Precitec LightCutter, ProCutter 1.0 · Bodor |
| 22.35 x 4 | Precitec HPSSL |
| 24.4 x 2 | Precitec ProCutter 2.0, ProCutter ZOOM · Bodor |
| 24.9 x 1.5 | Raytools BM110, BM111, BM06K, BS06K, BS12K, BS20K, BS30K, BS40K (incl. 3D) · Bodor |
| 27.9 x 4.1 | Raytools BM110, BM111, BM110-3D, BM111-3D, BD04K-3D · Bodor |
| 30 x 5 | Precitec LightCutter · Trumpf · Bodor |
| 34 x 5 | Trumpf |
| 37 x 7 | Precitec ProCutter 1.0, ProCutter 2.0, ProCutter ZOOM · Raytools BM06K, BS06K, BS12K, BS20K, BS30K, BS40K (incl. 3D) · Bodor |
| 38.1 x 1.6 | Bodor |
Higher power ratings fit progressively more head models. Additional sizes (25.4 x 4, 38.1 x 6.35, 42 x 9, 46 x 10, 50 x 8, 55 x 9) are stocked for other OEM heads.
Not sure which window your machine takes? Send us your cutting head model and we’ll confirm the correct size and power before you order.
OEM-COMPATIBLE PROTECTIVE WINDOWS
Machinist’s Vault Fiber Laser Cutting Protective Window
- Optical-grade fused silica construction
- High-transmittance anti-reflection coating
- Protects critical cutting-head optics
- Stable beam quality and repeatable cutting
PROTECTIVE OPTICS FOR PRODUCTION CUTTING
Precision materials. Proven performance.
Optical-grade protective windows help shield cutting-head optics, preserve beam quality and reduce avoidable downtime.
High optical efficiency
High-transmittance coatings help preserve beam power and cutting quality.
Precision fit and alignment
Controlled dimensions support correct seating, sealing and repeatable installation.
Extended service life
Quality materials reduce contamination-related lens failures and unplanned downtime.
Anatomy of a high-performance protective window
Multi-layer anti-reflection coatings and optical-grade fused silica protect the laser head while preserving beam integrity.
A sacrificial optical barrier
The protective window isolates more expensive internal optics from spatter and debris. Correct size, coating range, cleanliness and installation are essential to reliable cutting performance.
“Engineered with precision materials to protect optics, preserve beam quality and reduce downtime.”
INSTALLATION GUIDANCE
General protective-window installation
Follow the cutting-head manufacturer's instructions for the exact model, window position and sealing arrangement.Prepare
Power down the machine, allow the cutting head to cool and clean the service area before opening the optics assembly.
Remove in order
Remove the retaining ring and seals carefully, then lift the existing protective window without touching optical surfaces.
Install cleanly
Confirm the diameter, thickness and coating orientation. Handle only by the edge and reinstall seals in the specified order.
Verify
Check seating and sealing, then run the manufacturer's inspection or low-power test before returning to production.
Installation notice: component order, coating orientation and torque requirements vary by cutting-head model. Brand references identify compatibility only; these are not represented as original branded parts.
PROTECTIVE-WINDOW SUPPORT
Questions, answered.
Practical guidance for selection, inspection and replacement.How often should I replace a protective window?
Inspect it during routine cutting-head maintenance and replace it when contaminated, scratched, pitted, discoloured or no longer delivering consistent cut quality.
What if the anti-reflection coating is scratched?
Replace the window. Coating damage can increase absorption, heat and reflected energy, reducing beam quality and risking damage to internal optics.
Can I use a protective window from any laser brand?
No. Match diameter, thickness, optical material, coating wavelength, power rating and cutting-head position to the listed compatibility.
What happens if I cut without a protective window?
Spatter and process debris can reach expensive focusing or collimating optics, causing contamination, poor cutting performance and premature optical failure.
Are these original OEM parts?
No. These are OEM-compatible protective windows. Brand names are used only to identify intended compatibility.
Can you help confirm compatibility before ordering?
Yes. Send the cutting-head model, existing part number and measured diameter and thickness so our team can help identify the correct replacement.
