Finished Part
3D-Printed Foam Shoe
Surface smoothing of additively manufactured foam geometry while preserving the part profile.
Polar Finishing Equipment
Polar Small Series Vibratory Tub
Reliable batch tub finishing for small-to-mid volume production
Polar FMT-03, FMT-05 and FMT-06 Small Series tubs deliver consistent vibratory finishing for fabrication shops and contract manufacturers running regular batches of sheet metal, stampings and machined components.
Capacity
3–6.5 cu ft
Capacity Range
1–3 HP
Motor
110–440V
Power Options
6–10 Wks
Lead Time ARO
Key Features & Benefits
Bottom Discharge Door
- 5" bottom door for fast controlled unloading
- Parts and media discharge together at cycle end
- No manual scooping — reduces cycle turnaround time
Heavy Steel Frame Construction
- Robust welded steel frame throughout
- Full urethane lining protects parts and tub
- Built for daily production-level throughput
Compound Recirculation System
- Integrated recirculation keeps chemistry consistent
- Minimizes compound consumption over long runs
- Drains and collects used compound automatically
Optional Noise Cover
- Available factory-installed noise reduction cover
- Significantly reduces ambient dB on the shop floor
- Suitable for open-floor shop environments
Technical Specifications
Polar Small Series vibratory tubs provide compact, production-ready mass finishing for deburring, edge radiusing, descaling, polishing and surface preparation.
Choose the 3.0 cu ft FMT-03 for smaller batches, the 5.0 cu ft FMT-05 for a mid-capacity workflow, or the 6.5 cu ft FMT-06 for higher throughput. FMT-05 configurations are quoted to match the required electrical service and process.
Built for repeatable batch finishing
- Heavy steel construction with a rust-resistant finish
- Durable urethane-lined processing chamber
- Five-inch discharge door for controlled unloading
- Built-in compound recirculation system
- Optional dividers for part separation
Model reference
- FMT-03: 3.0 cu ft, 1 HP, 110/220V single phase
- FMT-05: 5.0 cu ft, 1.5 HP, 220/440V three phase — request a configured quote
- FMT-06: 6.5 cu ft, 3 HP, 220/440V single or three phase
Tell our finishing team your part material, geometry, batch size and desired finish. We will recommend the machine, media, compound and cycle starting point.
See vibratory mass finishing in action
Finished Part Examples
See the range of deburring, smoothing and polishing results possible with a properly matched Small Series tub, finishing media and process compound.
Finished Part
Copper Stationary Contact
Controlled deburring for conductive copper components and precision contact surfaces.
Finished Part
Steel Frying Pan
Edge deburring and surface refinement on a formed steel production part.
Finished Part
Steel Rifle Receiver
Automated surface polishing for a complex machined steel component.
Finished Part
CNC Aluminum Pistol Grip
Automated deburring and surface finishing across machined contours and recessed features.
Finished Part
3D-Printed Titanium Finger Rings
Polishing of intricate titanium forms for a smoother, more uniform final surface.
Applications & Finishing Examples
Application

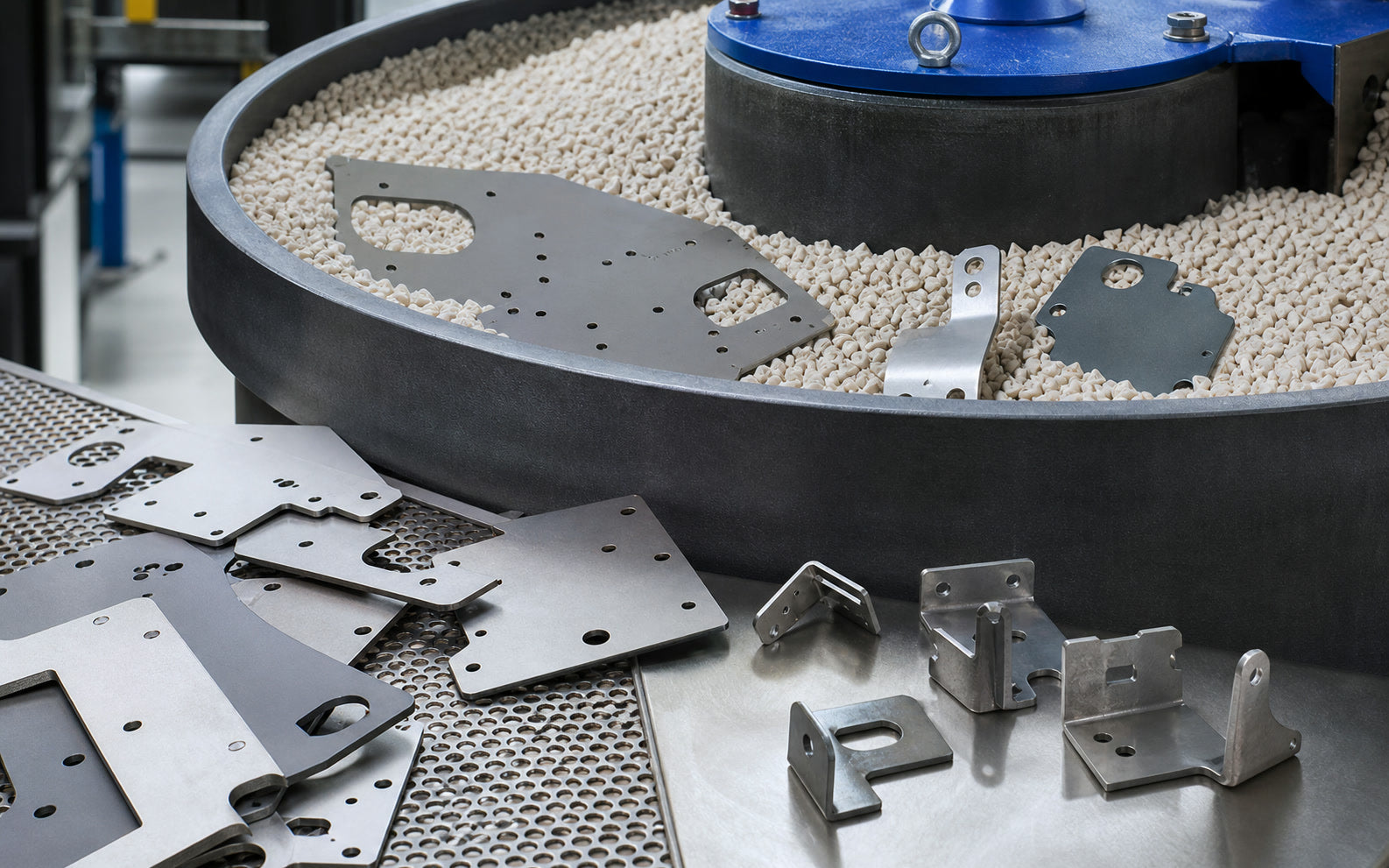

Sheet Metal Deburring
Remove punch-press burrs and laser-cut edges from sheet metal blanks and formed parts before assembly or coating.
Application

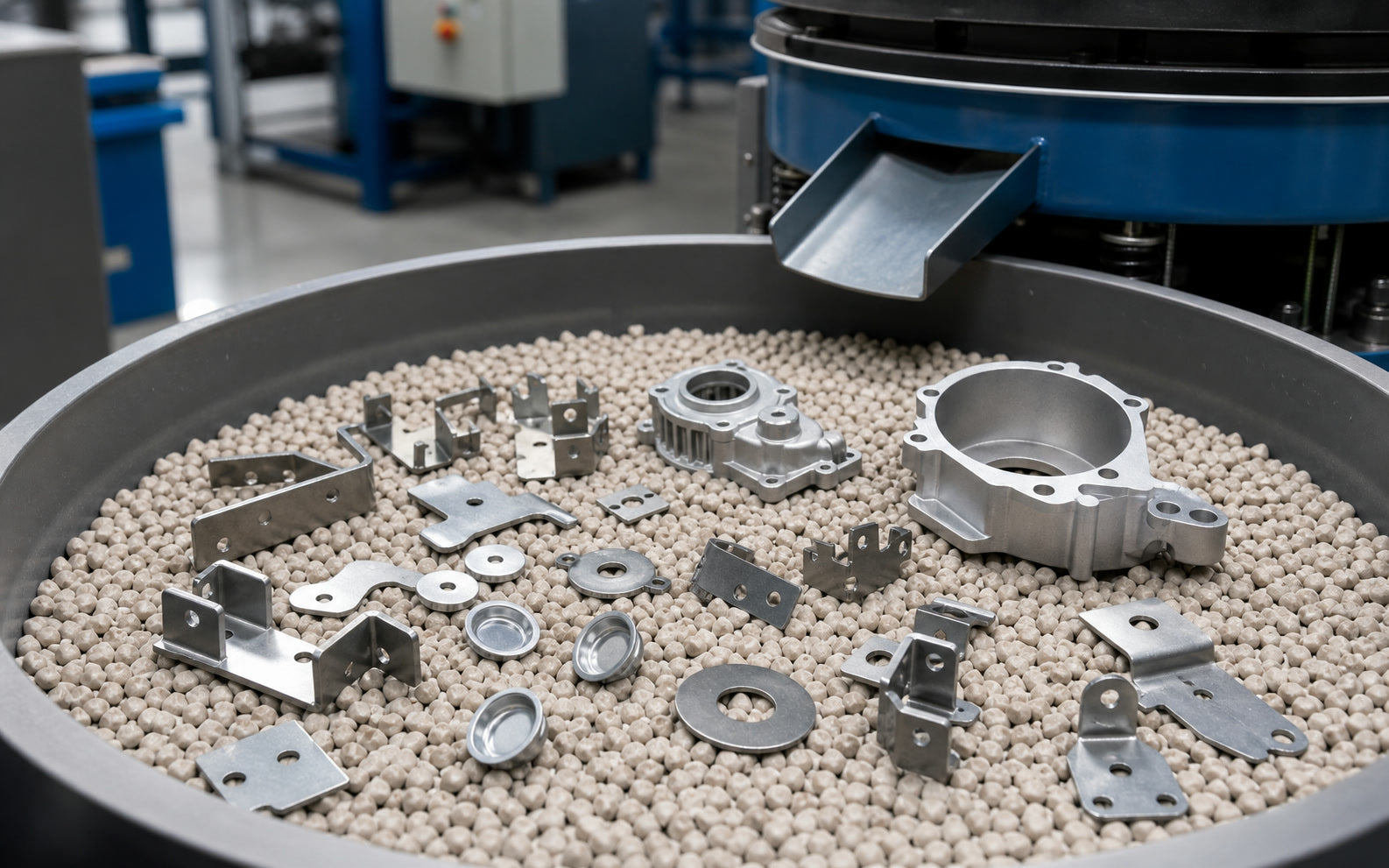

Stampings & Die Castings
Batch finish stamped metal parts and die castings to remove flash, burrs, and sharp edges. Consistent results before powder coat or plating.
Application

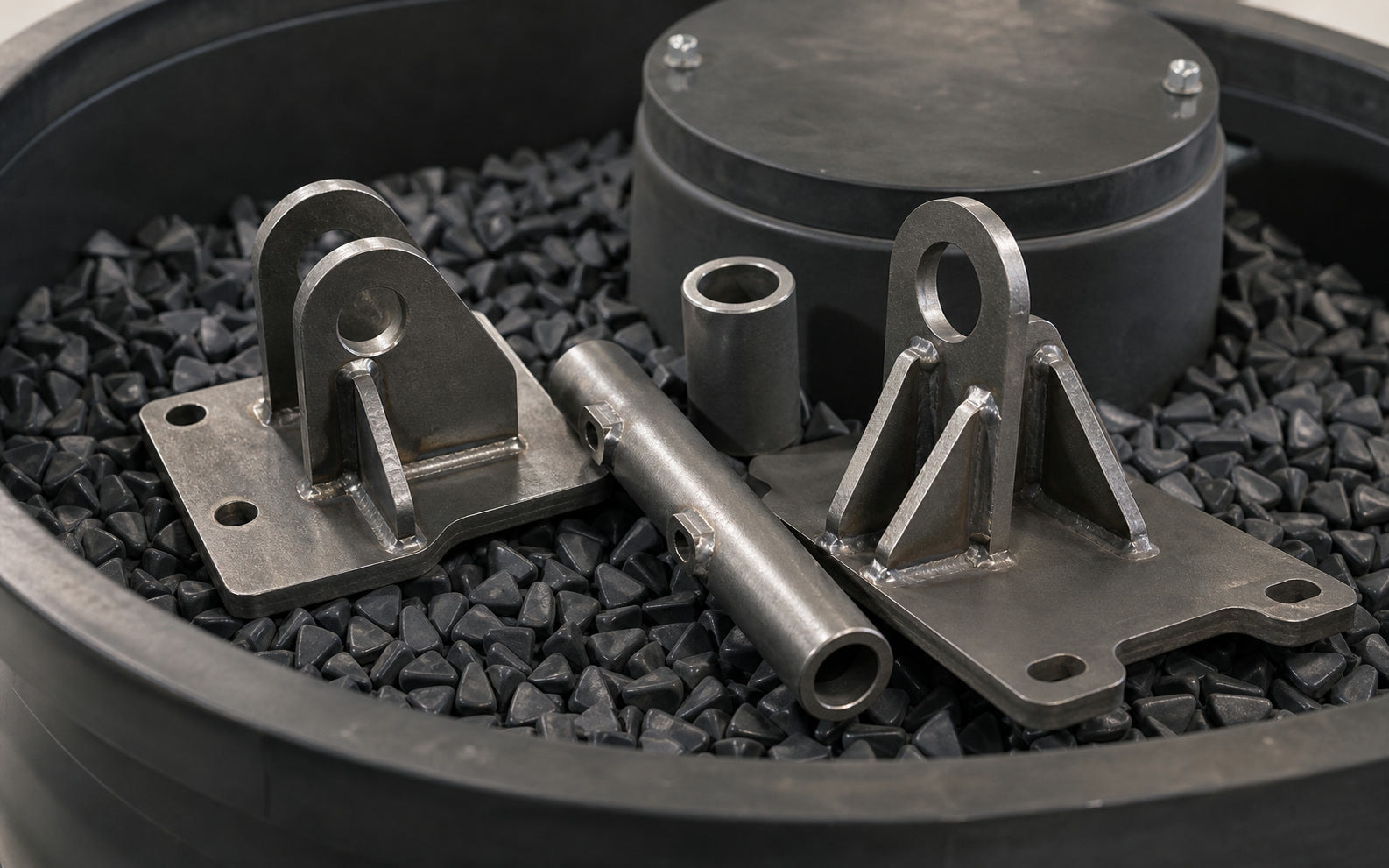

Weld Spatter & Scale Removal
Remove light weld spatter and mill scale from welded fabrications ahead of powder coat, paint, or assembly.
Complete Your System
Tumbling Media & Finishing Compounds
Plastic, ceramic, and steel media matched to your parts and required surface finish. Compound dosing systems and replacement items also available.
Shop Tumbling Media & Accessories
Polar FMT Small Series Vibratory Tub — Production Deburring for Fabrication Shops
The Polar FMT small series vibratory tub covers the FMT-03 (3 cubic feet) and FMT-06 (6.5 cubic feet) — purpose-built for fabrication shops, stamping operations, and contract manufacturers that run regular finishing batches on sheet metal, castings, and machined components.
Both models feature a durable urethane-lined steel tub, bottom discharge door, and compound recirculation. The FMT-03 suits smaller batch volumes on a single-phase supply; the FMT-06 handles higher throughput and is configurable for single or three-phase power.
Machinist's Vault supplies Polar small series tubs to Canadian shops with quote-based pricing and full application support. Contact us to configure the right model and media package for your production requirements.
Frequently Asked Questions
The FMT-03 operates on 110 or 220V single-phase. The FMT-06 can be configured for single-phase (220V) or three-phase (440V). Confirm your available electrical service when requesting a quote so we can configure the correct motor and drive.
For laser-cut or punched sheet metal, medium-cut ceramic media is the most common starting point. Plastic media is preferred for painted or pre-coated parts to avoid surface damage. We recommend media type, shape, and size based on your alloy, part geometry, and required edge radius.
Yes. The FMT-03 and FMT-06 handle stainless steel, mild steel, aluminum, brass, and most fabrication metals. Media type, compound chemistry, and cycle time are adjusted for stainless to prevent contamination and achieve the required finish.
The tubs include an integrated compound recirculation system. A separate compound dosing/drip dispenser can be added as an option — contact us to include this in your quote if automated compound feed is required.
