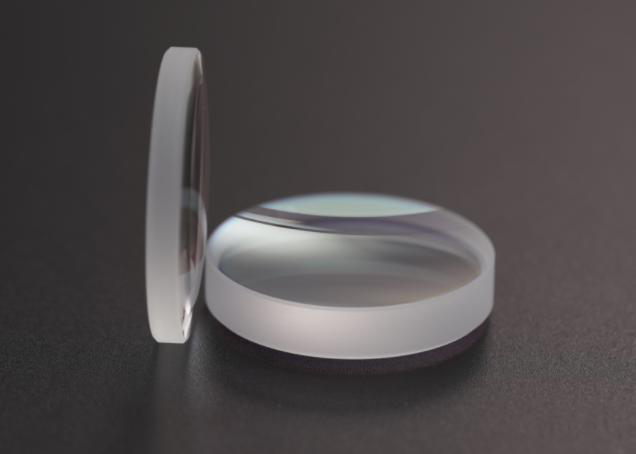

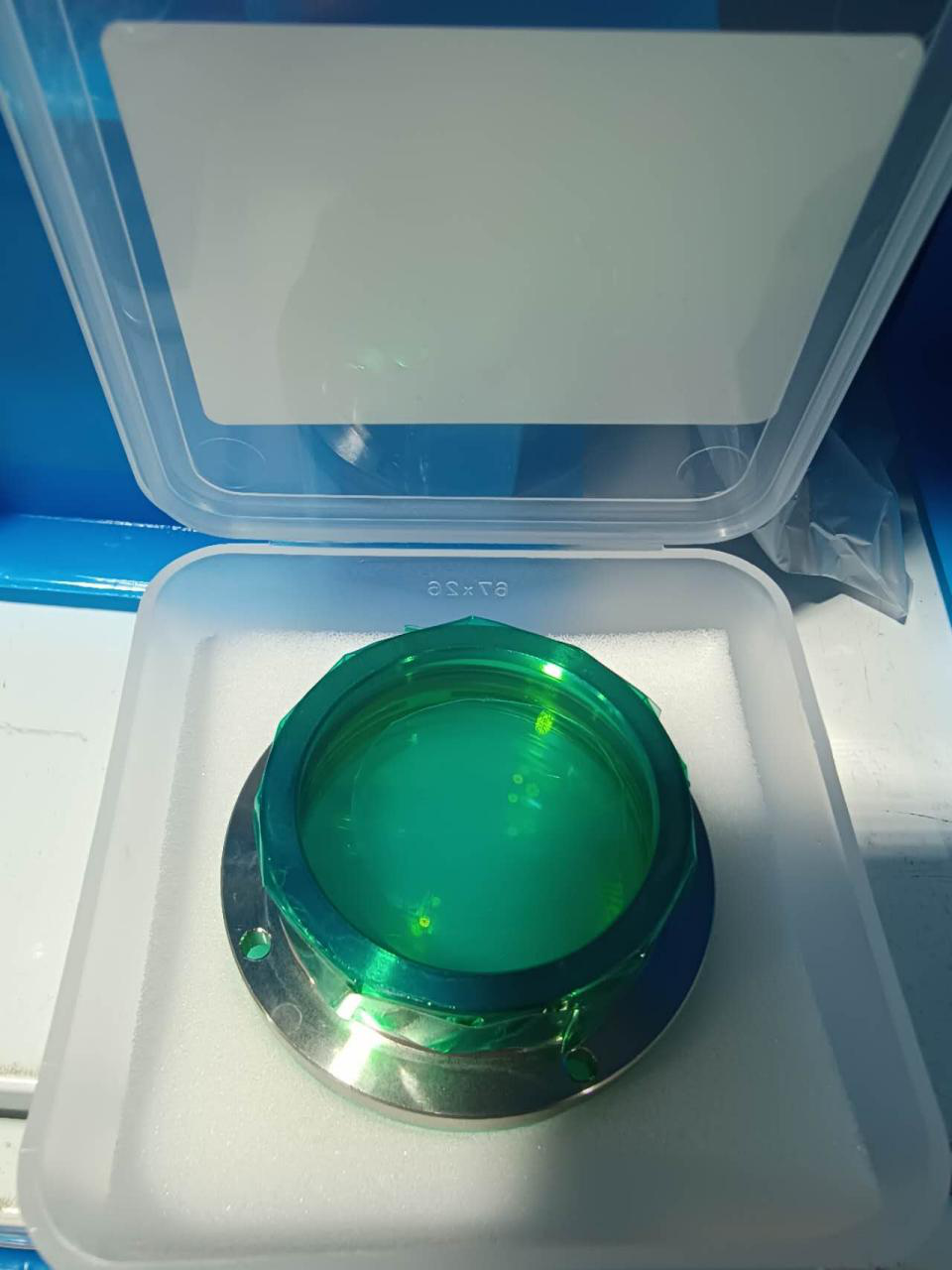

Compatible-grade focusing and collimating optics for Raytools fiber laser cutting heads — biconvex and meniscus sets, bare or pre-mounted in a holder.
- φ30 F100 — BM110, BM111 (incl. 3D)
- φ30 F125/F155/F200 — BM111-3D, BD04K-3D
- φ37 F100 — BM06K, BS12K (incl. 3D)
- φ37 F150/F200 — BD08K-3D, BS12K-3D

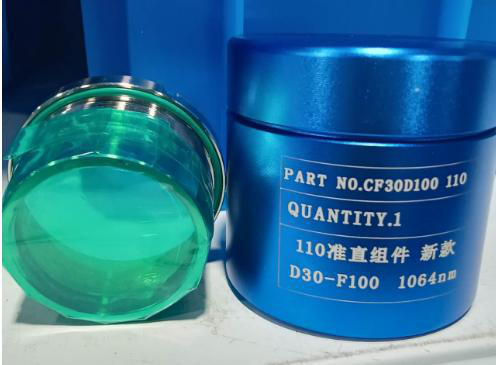

With-holder versions arrive mounted and collimated — the fastest swap after lens contamination. CAD pricing, ships from Canada. Send your head model and focal length before ordering if unsure.
