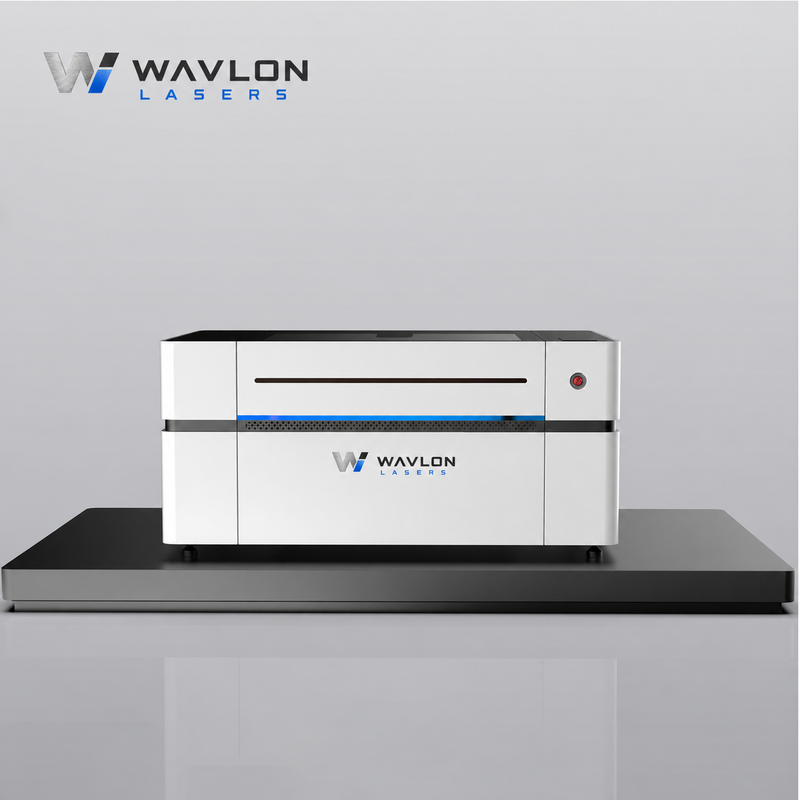

Wavlon Crest 24 — Desktop CO2 Laser Cutter (24"×16")

Wavlon Crest 24 is a 600×400 mm (24″×16″) integrated desktop CO₂ laser cutter built on Jowuey's 6040 platform — an aluminum-bed machine with a U-axis 22 cm lift table, fisheye camera and magnetic feed ports for rotary and pass-through work.

  • Working area: 600 × 400 mm (23.6″ × 15.75″)
  • Bed: aluminum machine bed, blade table (honeycomb optional)
  • Lift table: U-axis enclosed 22 cm lift — ideal for rotary-axis work
  • Vision: fisheye camera; magnetic front/rear feeding ports; push drawer
  • Engraving speed: up to 1300 mm/s

Coming soon — contact us to register interest and receive a quote.

Application configuredCanada & US deliveryCompliance confirmed on quote
Configured quote
Call 905-361-7999

Final price, electrical configuration, documentation, freight and lead time are confirmed in the formal quote. Zero-dollar listings are not purchasable online.

600 × 400 mm / 24 × 16 inWorking area
CO2 — final power pending supplier quoteLaser source
Up to 1,300 mm/s engravingProcessing speed
24 months machine; component terms applyWarranty reference
Technical overview

Core machine specifications

Specifications reflect the supplier documentation available for this product family. The formal quote locks the exact source, power, electrical and option configuration.

Working area600 × 400 mm / 24 × 16 in
Laser configurationCO2 — final power pending supplier quote
StructureIntegrated desktop, aluminum bed
Primary applicationsWood, acrylic, leather, paper and textiles
Control & filesRuida control; LightBurn compatible
Supply configurationConfirmed for selected source
Complete product information

Designed for real shop work

Wavlon Crest 24 is a 600×400 mm (24″×16″) integrated desktop CO₂ laser cutter built on Jowuey's 6040 platform — an aluminum-bed machine with a U-axis 22 cm lift table, fisheye camera and magnetic feed ports for rotary and pass-through work.

  • Working area: 600 × 400 mm (23.6″ × 15.75″)
  • Bed: aluminum machine bed, blade table (honeycomb optional)
  • Lift table: U-axis enclosed 22 cm lift — ideal for rotary-axis work
  • Vision: fisheye camera; magnetic front/rear feeding ports; push drawer
  • Engraving speed: up to 1300 mm/s

Coming soon — contact us to register interest and receive a quote.

Application-matched configuration

Power, working area, optics, table, camera, rotary and cooling options are selected around the material and throughput.

North American electrical option

120V / 60Hz single-phase production is available on referenced CO2 platforms. Exact electrical requirements are confirmed before order.

Factory and remote support

Online technical support is available for commissioning and operation, with documentation supplied for the selected configuration.

Freight planned before purchase

Machine dimensions, crate weight, destination and unloading needs are reviewed so the formal quote includes an appropriate delivery plan.

Canadian compliance notice

Wavlon/Jowuey machines do not currently carry a blanket CSA or UL certification. Available CE/FDA documentation is not a substitute for CSA/UL approval. Any required field evaluation and the final electrical/safety documentation package must be confirmed before installation. No certification claim is made unless it has been completed for the delivered configuration.

Questions before ordering

Machine selection FAQs

How is the final laser configuration selected?
We review your materials, maximum dimensions, thickness, desired mark or cut quality, production volume and electrical service. The quote then identifies the machine platform, laser source, power, table and selected options.
What is included in the quoted price?
The formal quote lists the machine configuration, included accessories, documentation, warranty terms, lead time and freight assumptions. Destination delivery and unloading requirements are confirmed separately where needed.
Can these machines be supplied for North American power?
Referenced CO2 platforms can be built for 120V / 60Hz single phase. Larger or higher-power configurations may require different service. The final electrical nameplate and plug requirements are confirmed before production.
Are these machines CSA or UL certified?
Not as a blanket product line today. We will identify available documentation and discuss any required Canadian field evaluation during quoting. A machine is never represented as certified unless certification has been completed for that supplied configuration.
Can I add a rotary, camera or upgraded table?
Available options vary by platform. Common options include rotary axes, camera systems, honeycomb tables, Wi-Fi control and autofocus upgrades. Include your application details in the quote request so compatible options can be specified.
