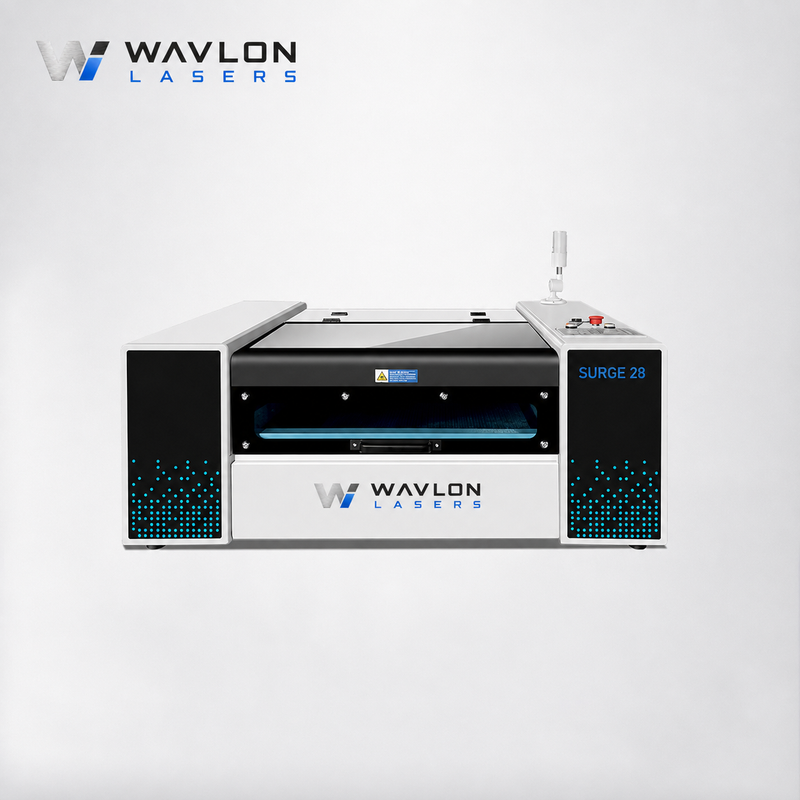

Wavlon Surge 28 — Tabletop CO2 Laser Cutter (28"×20")

Wavlon Surge 28 is a 700×500 mm (28″×20″) compact tabletop CO₂ laser cutter built on Jowuey's 7050-M7S platform, with a milled iron bed and pen-type autofocus.

  • Working area: 700 × 500 mm (27.6″ × 19.7″)
  • Laser power: 50 W standard, 60–80 W extended
  • Bed: milled iron machine bed, honeycomb table
  • Autofocus: pen-type
  • Materials: wood, acrylic, leather, paper, textiles and other non-metals

Coming soon — contact us to register interest and receive a quote.

Application configuredCanada & US deliveryCompliance confirmed on quote
Configured quote
Call 905-361-7999

Final price, electrical configuration, documentation, freight and lead time are confirmed in the formal quote. Zero-dollar listings are not purchasable online.

700 × 500 mm / 28 × 20 inWorking area
50W standard; 60–80W optionalLaser source
Up to 800 mm/s engravingProcessing speed
24 months machine; component terms applyWarranty reference
Technical overview

Core machine specifications

Specifications reflect the supplier documentation available for this product family. The formal quote locks the exact source, power, electrical and option configuration.

Working area700 × 500 mm / 28 × 20 in
Laser configuration50W standard; 60–80W optional
StructureMilled iron bed, tabletop cabinet
Primary applicationsDetailed engraving and compact-part cutting
Control & filesRuida control; LightBurn compatible
Supply configurationConfirmed for selected source
Complete product information

Designed for real shop work

Wavlon Surge 28 is a 700×500 mm (28″×20″) compact tabletop CO₂ laser cutter built on Jowuey's 7050-M7S platform, with a milled iron bed and pen-type autofocus.

  • Working area: 700 × 500 mm (27.6″ × 19.7″)
  • Laser power: 50 W standard, 60–80 W extended
  • Bed: milled iron machine bed, honeycomb table
  • Autofocus: pen-type
  • Materials: wood, acrylic, leather, paper, textiles and other non-metals

Coming soon — contact us to register interest and receive a quote.

Application-matched configuration

Power, working area, optics, table, camera, rotary and cooling options are selected around the material and throughput.

North American electrical option

120V / 60Hz single-phase production is available on referenced CO2 platforms. Exact electrical requirements are confirmed before order.

Factory and remote support

Online technical support is available for commissioning and operation, with documentation supplied for the selected configuration.

Freight planned before purchase

Machine dimensions, crate weight, destination and unloading needs are reviewed so the formal quote includes an appropriate delivery plan.

Canadian compliance notice

Wavlon/Jowuey machines do not currently carry a blanket CSA or UL certification. Available CE/FDA documentation is not a substitute for CSA/UL approval. Any required field evaluation and the final electrical/safety documentation package must be confirmed before installation. No certification claim is made unless it has been completed for the delivered configuration.

Questions before ordering

Machine selection FAQs

How is the final laser configuration selected?
We review your materials, maximum dimensions, thickness, desired mark or cut quality, production volume and electrical service. The quote then identifies the machine platform, laser source, power, table and selected options.
What is included in the quoted price?
The formal quote lists the machine configuration, included accessories, documentation, warranty terms, lead time and freight assumptions. Destination delivery and unloading requirements are confirmed separately where needed.
Can these machines be supplied for North American power?
Referenced CO2 platforms can be built for 120V / 60Hz single phase. Larger or higher-power configurations may require different service. The final electrical nameplate and plug requirements are confirmed before production.
Are these machines CSA or UL certified?
Not as a blanket product line today. We will identify available documentation and discuss any required Canadian field evaluation during quoting. A machine is never represented as certified unless certification has been completed for that supplied configuration.
Can I add a rotary, camera or upgraded table?
Available options vary by platform. Common options include rotary axes, camera systems, honeycomb tables, Wi-Fi control and autofocus upgrades. Include your application details in the quote request so compatible options can be specified.

Configure Wavlon Surge 28 — Tabletop CO2 Laser Cutter (28"×20")

Tell us what you cut, engrave, mark, weld or clean. We’ll prepare the right machine configuration and delivery quote.
