Fiber Laser Nozzle Guide: Type, Size & Maintenance
A fiber laser nozzle must fit the cutting head physically and match the approved cutting process. Select it in this order: cutting-head family, thread and installed dimensions, single- or double-layer construction, orifice diameter, then coating and condition. Choosing by machine brand or appearance alone can produce a nozzle that threads on but does not seat, sense height or direct gas correctly.
Quick fiber laser nozzle selection answer
- Fitment comes first: match the exact cutting-head model, thread, body diameter, overall height and seating geometry.
- Layer follows the process: many high-pressure nitrogen and air processes use single-layer nozzles; many oxygen carbon-steel processes use double-layer designs. Exceptions are common, especially on high-power systems.
- Diameter follows validated cut data: smaller orifices reduce flow demand and are less tolerant of centering error; larger orifices deliver more flow but require more gas capacity.
- Installation finishes the job: clean the seat, inspect the ceramic, tighten correctly, calibrate height and verify beam centering.
Always let the machine builder's parameter library and cutting-head documentation win over a generic chart.

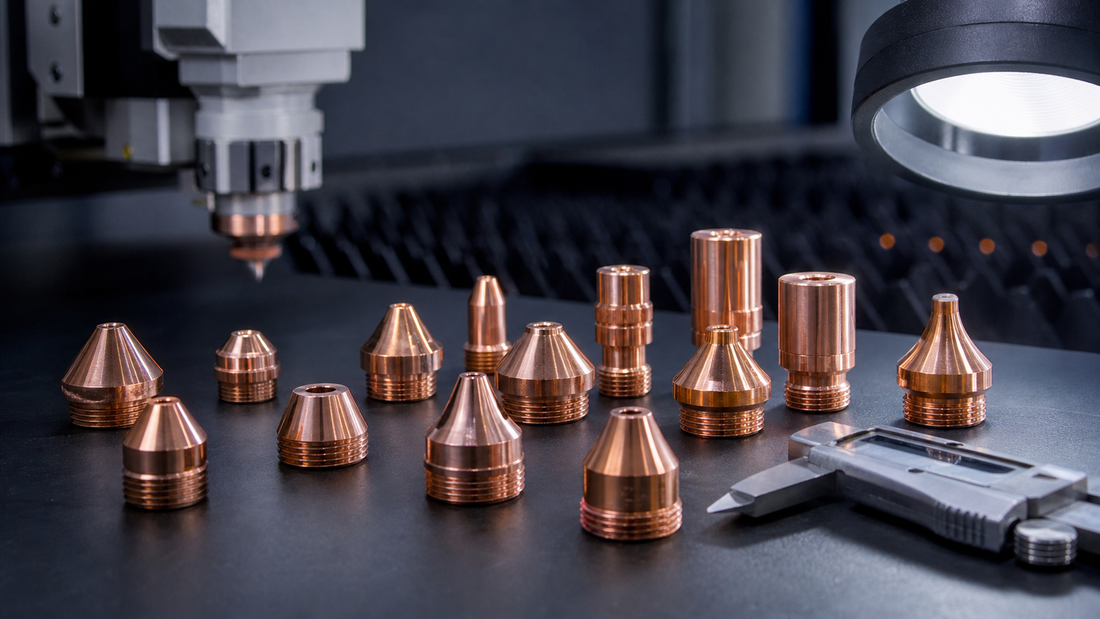

1. Identify the cutting head before the machine
Nozzles attach to the cutting head, not to the machine frame. Two machines from the same builder can carry different head generations, power packages or retrofit systems. Start with the cutting-head nameplate and current nozzle part number. Then photograph the installed nozzle and its seat square-on.
Record these fitment details
- Cutting-head manufacturer and complete model number
- Current nozzle part number and every engraved marking
- External body diameter and total installed height
- Thread type, diameter and pitch
- Seating shoulder, taper or flange geometry
- Single-layer or double-layer construction
- Orifice diameter and tip shape
- Bare copper, plated or other approved surface finish
- Laser power and the approved material/gas process
Do not infer thread or pitch from diameter alone. Similar-looking nozzles may differ in thread form, reference height, sensing behaviour or internal gas path. A poor seat can leak gas, tilt the orifice and destabilize capacitive height sensing.
2. Single-layer vs double-layer laser nozzles
A single-layer nozzle uses one primary gas passage. A double-layer nozzle adds an outer annular path around the central passage. The actual internal geometry varies by nozzle family, so “double layer” describes architecture, not a universal gas-flow pattern.
| Selection factor | Single-layer starting point | Double-layer starting point |
|---|---|---|
| Common process association | High-pressure nitrogen or air fusion cutting on many systems | Low-pressure oxygen cutting of carbon steel on many systems |
| Gas-path concept | One primary passage directs the assist-gas jet | Central passage plus an outer annular path |
| Typical goal | Strong melt ejection and, with nitrogen, an oxide-free edge | Stable oxygen delivery for the reactive cutting process |
| Important exception | Some high-power oxygen and specialty processes also use single-layer designs | Not every carbon-steel program or head uses double layer |
| Decision authority | The approved cut chart for the exact cutting head, power, material, thickness and gas | |
The familiar shortcut—single layer for nitrogen/air and double layer for oxygen carbon steel—is useful for recognizing a process family, but it is not enough to place an order. Modern high-power systems may use specialized nozzles and focus strategies that reverse the shortcut.
3. Choose the nozzle orifice diameter
Orifice diameter changes the flow area at the nozzle exit. A smaller opening generally requires less total flow and produces a tighter gas footprint, but it becomes more sensitive to beam centering, contamination and damage. A larger opening supports more flow and is often used as thickness increases, but it demands greater gas-delivery capacity and can waste gas when oversized.
The following bands are a purchasing and inventory framework, not cutting parameters. Confirm the exact value in the machine's validated job library.
| Common orifice band | How shops often use it | Main verification |
|---|---|---|
| Ø1.0-1.2 mm | Fine or thin-sheet processes with controlled flow demand | Beam centering, pierce spatter and the exact gas/process chart |
| Ø1.5-2.0 mm | General thin-to-medium work across many nozzle families | Layer, gas type, head pressure and corner quality |
| Ø2.5-3.0 mm | Higher-flow or thicker-material processes where specified | Regulator/line capacity, gas consumption and cut-through margin |
| Ø3.5 mm and larger | Machine-specific thick-plate and high-power processes | Exact head, power, focus strategy and manufacturer-approved data |
Do not assume a larger orifice will make the machine cut faster. Cutting speed comes from the complete energy and gas process. An oversized nozzle can increase gas cost, enlarge the affected area and reduce small-feature quality; an undersized nozzle can restrict melt removal and leave dross.
4. Match material, assist gas and cutting strategy
| Material/process | Common nozzle starting point | What to confirm |
|---|---|---|
| Carbon steel with oxygen | Double-layer designs are common; specialized single-layer processes also exist | Positive/negative focus strategy, power level, pressure and approved nozzle family |
| Stainless steel with nitrogen | Single-layer nozzle is common | Required flow, purity, pressure at the head and diameter for thickness |
| Aluminum with nitrogen | Single-layer nozzle is common | Back-reflection controls, high-flow capacity and head-specific chart |
| Thin carbon steel with nitrogen | Single-layer fusion-cut process may be used for an oxide-free edge | Gas cost, pressure capacity and downstream finishing requirements |
| Shop air cutting | Single-layer nozzle is common | Pressure at the head, dryness, oil removal and acceptable edge oxidation |
| High-power thick plate | Highly head- and strategy-specific | Use only the current parameter library and approved consumable part number |
Thickness alone cannot choose a nozzle. The same sheet may use different nozzle types and diameters when cut with oxygen, nitrogen or air. Gas chemistry changes the cutting mechanism, while available pressure and flow determine whether the nozzle can clear molten material from the kerf.
5. Standoff, ceramic condition and beam centering
A correct nozzle can still cut poorly when it sits at the wrong height. Too little standoff increases collision and spatter risk. Too much allows the assist-gas jet to disperse before entering the kerf. The target is job-specific and depends on the cutting head, nozzle and process.
Standoff depends on the height-sensing chain. A cracked ceramic, contaminated contact surface, loose nozzle or warped sheet can create a false reading. Inspect the complete assembly and run the approved height calibration after changing a nozzle or sensor component.
Beam centering matters just as much. An offset beam restricts one side of the gas passage and can create direction-specific dross, taper or small-hole defects. Use the cutting-head manufacturer's low-power centering method after a nozzle change, collision or unexplained directional fault.
How to install and prove a replacement nozzle
- Stop and make the system safe. Follow the machine's service and lockout procedure before touching the head.
- Compare old and new parts. Check part number, thread, height, layer, orifice and seating geometry.
- Inspect the ceramic and seat. Look for cracks, debris, damaged threads and contamination that could tilt the nozzle or affect sensing.
- Install with the approved tool and torque. Do not grip or distort the precision tip.
- Calibrate height sensing. Verify capacitance or the applicable sensing system before cutting.
- Perform the approved centering test. Use only the specified power, target and adjustment sequence.
- Run a known coupon. Use validated material, gas and parameters, then inspect every edge and feature.
- Record the result. Log nozzle part, orifice, layer and date so future troubleshooting starts from evidence.
Nozzle inspection and replacement
Inspect nozzles at the start of a shift, after a pierce event that produces unusual spatter, after any collision and whenever cut quality changes. There is no responsible universal replacement interval: workload, power, piercing strategy, material scale, collision history and operator handling vary too much.
| Condition | Action | Reason |
|---|---|---|
| Orifice is oval, nicked or visibly enlarged | Replace | Gas flow and beam clearance are no longer controlled. |
| Tip is bent, cracked or heavily burned | Replace and inspect the cause | A collision, severe spatter or reflected energy may have affected the assembly. |
| Loose spatter on the exterior | Clean only with the approved non-damaging method, then inspect | Scraping the bore can change precision geometry. |
| Thread or seating face is damaged | Replace; inspect the holder | The nozzle may leak, tilt or produce an unstable height signal. |
| Directional dross after installation | Check seating and beam centering | The new part may be correct but off-axis. |
| No visible damage, but a known-good nozzle restores quality | Quarantine the suspect nozzle | Small concentricity or internal damage may not be obvious by eye. |
How to read nozzle markings
Markings vary, but a nozzle may show a family code, layer designation and orifice diameter. Treat the engraving as one part of identification. A “1.5” marking usually describes a 1.5 mm orifice, yet it says nothing by itself about thread, height or cutting-head compatibility.
When markings are incomplete, send a clear top, side and bottom photograph beside a ruler or caliper, plus the cutting-head nameplate. Do not choose from colour or cone shape alone.
Fiber laser nozzles and related consumables
These are genuine catalogue products and images. Confirm the complete cutting-head specification and active process before ordering.
D28 H15 M11 Laser Nozzles
Single- and double-layer options across common orifice diameters for compatible heads.
View Nozzle Options
D28 M11 Laser Nozzles
Choose layer and diameter only after confirming the thread, height and head family.
View Nozzle Options
Fiber Laser Protective Windows
Pair nozzle inspection with an optics check when cut quality drops unexpectedly.
View Protective WindowsInformation to send for a nozzle recommendation
- Machine make, model, year and laser power
- Cutting-head manufacturer and full model number
- Current nozzle part number and clear photographs from all sides
- Thread diameter/pitch, body diameter and overall height
- Single- or double-layer construction and current orifice diameter
- Material grade, thickness range and assist gas
- Whether the process uses standard or specialized high-power parameters
- Any cut-quality issue, collision history or height-sensing fault
Fiber laser nozzle FAQ
What is the difference between single-layer and double-layer laser nozzles?
A single-layer nozzle has one primary gas passage. A double-layer nozzle adds an outer annular path. Many nitrogen and air processes use single-layer nozzles, while many oxygen carbon-steel processes use double-layer designs, but the approved head-specific chart must confirm the choice.
How do I choose a fiber laser nozzle size?
First match the cutting head and physical interface. Then use the validated material, thickness, gas and power program to choose the layer and orifice diameter. Smaller openings demand precise centering; larger openings require more gas-flow capacity.
Does a larger nozzle make a fiber laser cut faster?
No. A larger orifice increases potential gas flow, but speed depends on laser power and the complete validated process. Oversizing can waste gas and reduce small-feature quality.
Why does a new laser nozzle still produce dross?
The nozzle may be the wrong specification, incorrectly seated, off-centre, at the wrong standoff or paired with unstable gas delivery. Verify the complete part, inspect the ceramic, calibrate height and centre the beam using the approved procedure.
When should a laser cutting nozzle be replaced?
Replace it when the orifice is oval, nicked or enlarged; the tip is bent, cracked or heavily burned; the seat/thread is damaged; or a known-good matching nozzle restores quality. Inspect after collisions and unusual pierce events.
Can I identify a replacement nozzle from a photograph?
A photograph helps, but it is not enough by itself. Confirm the cutting-head model, thread, body diameter, height, seating geometry, layer construction and orifice marking before ordering.
Continue learning: diagnose dross and rough edges with six checks for poor laser cutting quality, review the complete fiber laser consumables guide, or visit the Education & Product Guides hub.
