Fiber Laser Consumable Replacement Intervals

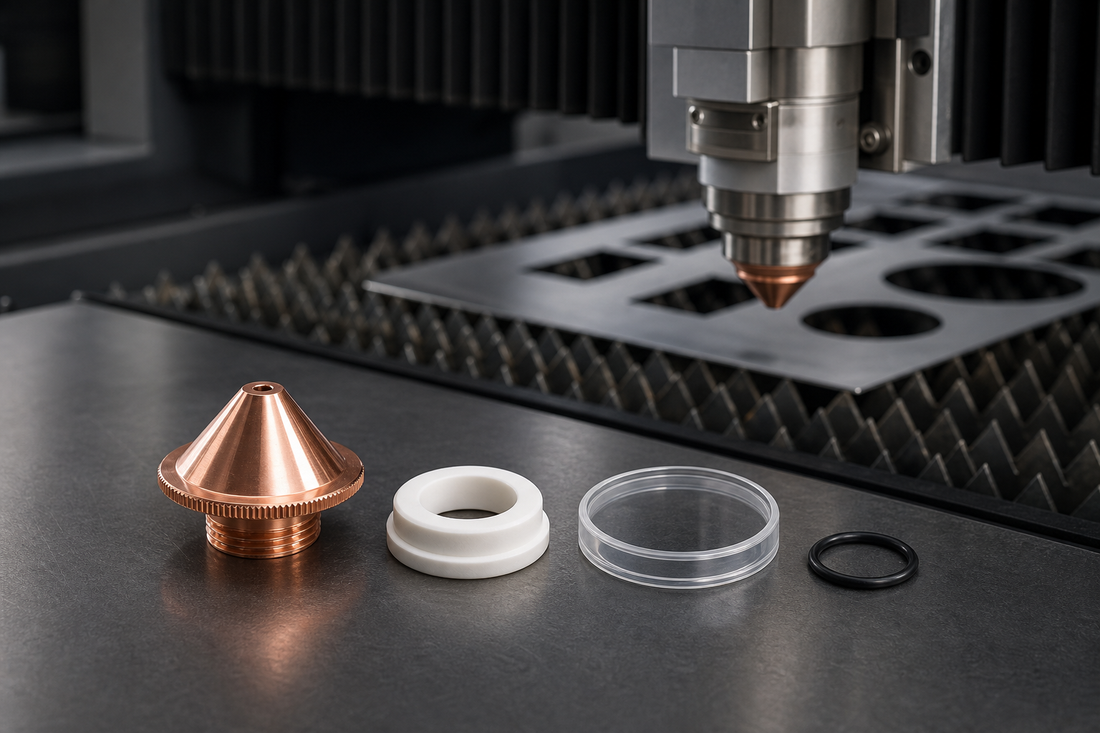

Replacing fiber laser consumables on a fixed calendar sounds simple, but it can be expensive in both directions. Change parts too early and you waste usable life. Change them too late and a damaged nozzle, contaminated protective window, or cracked ceramic ring can reduce cut quality, increase gas use, or expose more expensive cutting-head components to damage.

Quick answer: inspect the nozzle and protective window every shift, inspect the ceramic ring weekly and after every collision, inspect seals whenever a cartridge or holder is opened, and service internal focusing or collimating optics only according to the cutting-head procedure or a clear fault indication. Replace parts based on condition, alarms, and cut-quality changes rather than relying on one universal hour limit.

This guide explains practical fiber laser consumable replacement intervals, the warning signs operators should record, and how to build a maintenance schedule around your actual machine, materials, assist gas, power level, and production mix.

Fiber laser consumable replacement interval chart

Important: this table is an inspection schedule, not a guaranteed service-life promise. The machine builder's maintenance instructions and cutting-head manual take priority. Condition monitoring, cut tests, and a clean maintenance log provide a more reliable replacement point than elapsed time alone.

Why one replacement interval does not fit every fiber laser

Two identical machines can consume parts at very different rates. A shop cutting clean thin sheet with nitrogen may see long consumable life, while a machine performing frequent thick-plate pierces can expose the nozzle and lower protective window to far more spatter in a single shift.

The main variables are:

• Material and surface condition: scale, oil, coatings, rust, and protective film can change smoke and spatter levels.
• Piercing strategy: thick plate, short pierce standoff, or poorly tuned pierce parameters can send molten material toward the nozzle.
• Assist gas quality: moisture, oil, particles, or unstable pressure can contaminate optics and disturb the cut.
• Laser power: contamination absorbs beam energy. The thermal consequences can become more severe as power increases.
• Nozzle alignment and standoff: off-center gas flow or incorrect height increases dross and collision risk.
• Handling during service: opening an optical cavity in a dusty environment can introduce the contamination the service was meant to remove.

Bystronic's maintenance guidance recommends daily inspection of optics and the nozzle, with nozzle replacement when wear or damage is found. That condition-based approach is more useful than assuming every nozzle or window will last the same number of hours.

When to replace a fiber laser protective window

The lower protective window is a sacrificial optical barrier. It helps keep spatter, smoke residue, and process contamination away from the focusing lens. TRUMPF describes the protective glass as both a pressure window for cutting gas and a barrier that protects the lens from process contamination.

Inspect the window in a clean area with the beam disabled and according to the cutting-head instructions. Use good lighting and examine both surfaces without touching the clear aperture. Replacement is the safer choice when you find:

• a dark or rainbow-colored heat mark;
• haze across the optical path;
• pits or embedded spatter;
• a scratch or coating defect in the beam area;
• contamination that remains after the permitted cleaning procedure;
• repeated head-temperature or protective-window alarms.

Loose dust may be removable with approved optical supplies and the method in the equipment manual. A burned coating, pit, embedded particle, or heat-affected area is not a cleaning problem. Continuing to run can increase absorption and transfer heat toward the focusing optics.

When to replace a fiber laser nozzle

A nozzle can look acceptable from a distance and still produce a distorted assist-gas jet. Check the tip face and orifice under magnification. The bore should remain round, centered, clean, and free of impact damage.

Replace the nozzle when the orifice is no longer round, the tip is dented or pitted, spatter cannot be removed without altering the surface, or a known-good cut program suddenly develops one-sided dross. Replace it after a collision if there is any uncertainty about its geometry.

A new nozzle still needs correct centering and standoff calibration. If problems remain after replacement, check beam centering, capacitive height control, gas pressure, material condition, and the protective window. Use the fiber laser nozzle selection guide to confirm layer type and diameter before changing cut parameters around the wrong nozzle.

When to replace a ceramic ring

The ceramic ring electrically isolates the nozzle assembly and supports capacitive height sensing. It also acts as a sacrificial mechanical component during many head collisions. A small crack can create intermittent behavior that is difficult to diagnose from cut quality alone.

Inspect the ring after every collision and during the weekly maintenance check. Replace it if you find a crack, chip, loose threaded insert, burned contact, damaged wire connection, or heavy spatter that affects electrical isolation. Symptoms can include unstable follow height, false plate detection, sudden Z-axis movement, capacitance calibration failure, or inconsistent nozzle-to-sheet distance.

After installation, perform the machine's required capacitance calibration and confirm nozzle centering. Ceramic rings are cutting-head specific, so match the exact head model through the brand compatibility guide instead of ordering from appearance alone.

When to replace O-rings and cutting-head seals

Seals are inexpensive, but they control gas pressure and help keep contamination outside the optical path. Inspect each O-ring whenever its joint is opened. Do not reuse a seal that is flattened, cut, swollen, hardened, twisted, dirty, or difficult to seat correctly.

A leaking or poorly seated seal can cause inconsistent assist-gas pressure, contamination at the protective-window drawer, or unexplained cutting variation. Use only the size and material specified for the holder or cartridge; a visually similar seal can fit the groove while failing under pressure or temperature.

Focusing and collimating lenses are not routine operator consumables

The protective window is designed to be serviced more frequently so the internal optics do not have to be exposed. Do not open the focusing or collimating lens assembly simply because a calendar date has arrived. Unnecessary access can introduce dust, fingerprints, fibers, or cleaning residue.

Escalate to the machine's approved service procedure when a clean protective window and known-good nozzle do not correct power loss, focus drift, abnormal kerf width, thermal warnings, or cut-quality changes. Some cutting-head designs restrict internal-optics work to trained personnel. Follow the head manufacturer's instructions and laser safety procedures before removing any optical component.

Match symptoms to the first consumable to inspect

A practical fiber laser maintenance schedule

At the start of every shift

• Inspect the nozzle face and orifice.
• Review protective-window or head-temperature monitoring.
• Inspect the protective window if required by the manual, alarm history, or recent process conditions.
• Confirm assist-gas pressure and check air-quality equipment when using compressed air.
• Record unexplained changes in dross, kerf, piercing, or corner quality.

After a collision or abnormal pierce

• Stop and inspect the nozzle, ceramic ring, and holder before resuming production.
• Check the protective window if spatter may have entered the bore.
• Re-center the nozzle and complete the required height-sensing calibration.
• Run a controlled test cut before returning to a full sheet.

Every week

• Inspect the ceramic ring, contacts, nozzle holder, and accessible seals.
• Review the consumable log for parts being replaced more often than normal.
• Check gas filtration, moisture control, and maintenance items specified by the machine builder.
• Verify that required spare parts are available for the next production week.

Build replacement intervals from your own maintenance log

A simple log turns general advice into a reliable shop standard. For every change, record the machine, date, cutting hours, material mix, assist gas, part number, reason for replacement, alarm code, and a photo of the removed part when useful.

After several replacement cycles, calculate your typical usage by part and machine. Set the reorder point to cover average usage during supplier lead time plus a buffer for one abnormal event, such as a collision or difficult plate job. This is more accurate than stocking the same quantity for every cutting head.

Keep parts sealed, labeled, and matched to the exact head model. Store optical components in a clean cabinet away from grinding dust, moisture, and open shop traffic. For a complete parts overview, visit the fiber laser consumables and parts guide.

Frequently asked questions

How often should a protective window be replaced?

There is no universal number of shifts or hours. Inspect it every shift or according to the machine's monitoring system, and replace it when haze, pitting, embedded spatter, coating damage, heat marks, or persistent contamination appears.

Should a nozzle be replaced after every collision?

Inspect it after every collision and replace it whenever the tip or orifice may be deformed. A small geometry change can distort assist-gas flow even when the nozzle still threads into the holder normally.

Can a protective window be cleaned and reused?

Only contamination that the equipment manufacturer's approved procedure permits you to remove should be cleaned. Replace a window with burned coating, scratches, pits, embedded spatter, or a heat-affected area.

Do high-power fiber lasers need more frequent consumable checks?

Higher power does not create one fixed replacement interval, but contamination can absorb more energy and thermal faults can become serious quickly. Follow the monitoring system and consider more frequent checks after heavy piercing or unusually dirty work.

What consumables should a shop keep in stock?

At minimum, keep the protective windows, nozzle sizes, ceramic rings, and seals needed to recover from a routine replacement and one unexpected event. Base quantities on actual consumption, lead time, machine count, and the cost of downtime.
