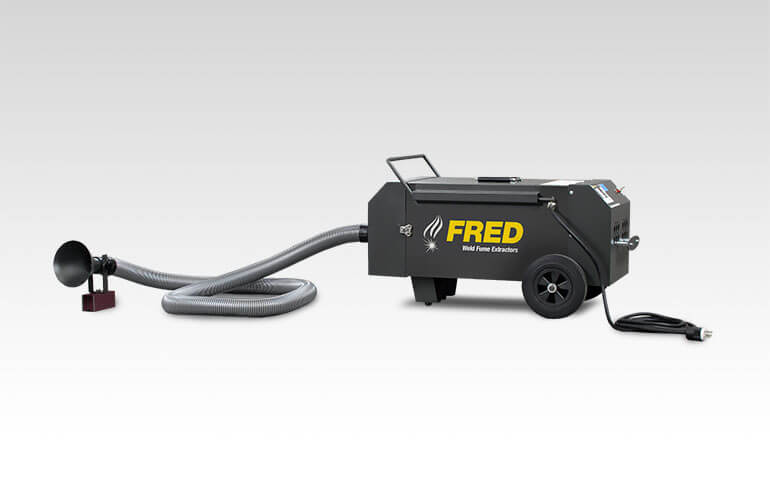

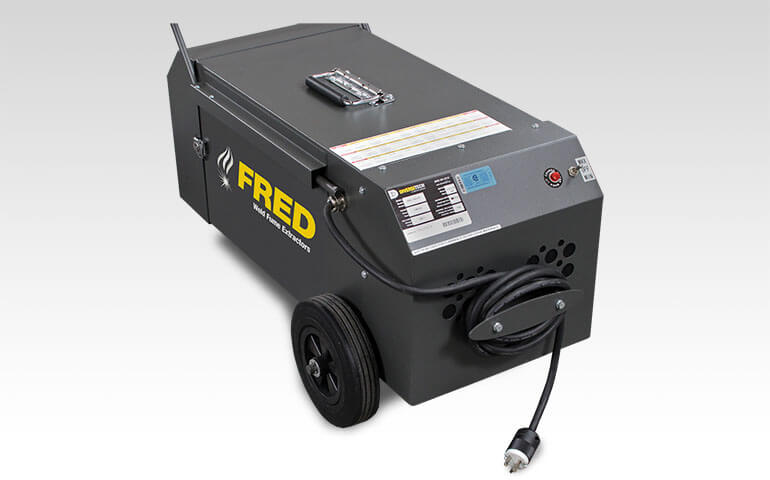

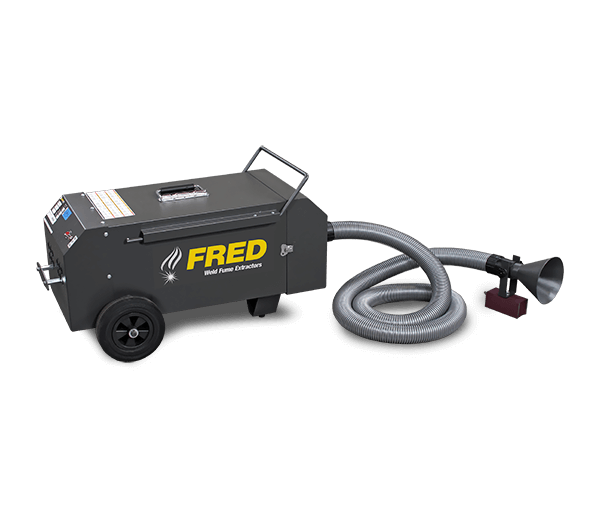

The FRED Mini-Vac II from Diversitech is engineered to be the industry’s most powerful, reliable, and convenient portable fume extraction system. Whether you're doing light or medium duty welding, grinding, deburring, or soldering, it delivers.

It features dual motors so you can switch between low mode (one motor) for quieter, lighter operations or high mode (both motors running) for greater capture range when you need it.

Built for real-world use in fields or confined spaces, the Mini-Vac II is portable, effective, and easy to use. Key features include a Nanofiber MERV-15 filter cartridge, magnetic nozzle base for secure positioning, and filter service indicator so you know exactly when attention is needed.

Recommended for: welding, grinding, deburring, soldering.
Not ideal for: sanding or painting operations.

Why choose Mini-Vac II?

  • Protects your breathing zone by filtering harmful weld fumes with high-efficiency nanofiber technology.

  • Meets or exceeds North American safety standards (including OSHA) for weld fume capture at source.

  • Compact, lightweight, designed for portability.

  • Options available (HEPA primary filter; washable spunbond polyester; gun auto on/off kit) let you tailor it for your needs.

Recommended Applications

The FRED Mini-Vac II from Diversitech is engineered to be the industry’s most powerful, reliable, and convenient portable fume extraction system. Whether you're doing light or medium duty welding, grinding, deburring, or soldering, it delivers.

It features dual motors so you can switch between low mode (one motor) for quieter, lighter operations or high mode (both motors running) for greater capture range when you need it.

Built for real-world use in fields or confined spaces, the Mini-Vac II is portable, effective, and easy to use. Key features include a Nanofiber MERV-15 filter cartridge, magnetic nozzle base for secure positioning, and filter service indicator so you know exactly when attention is needed.

Recommended for: welding, grinding, deburring, soldering.
Not ideal for: sanding or painting operations.

Why choose Mini-Vac II?

  • Protects your breathing zone by filtering harmful weld fumes with high-efficiency nanofiber technology.

  • Meets or exceeds North American safety standards (including OSHA) for weld fume capture at source.

  • Compact, lightweight, designed for portability.

  • Options available (HEPA primary filter; washable spunbond polyester; gun auto on/off kit) let you tailor it for your needs.

  • Free Delivery

    Free delivery and returns

  • Worry-Free Trial

    60-Day easy returns

  • Warranty

    1-Year warranty policy

  • After-Sale Service

    24/7 support
Quantity

  • Overview

  • Technical Specifications

  • Product Services

What's Included

  • VR Headset

  • 2 Touch Controllers

  • Charging Cable

  • Power Adapter

  • Glasses Spacer

Technical Specifications

Diversitech‑Air

FRED Mini‑Vac II — Technical Specifications

Portable fume extractor — Dual motor, multiple filter options
Model family: MINI‑VAC2

Performance & Electrical

Model Motor (H.P.) Air Flow (CFM) Phase / Volts / Hz / Amps Net Wt (lbs) Noise @ 5 ft (dB)
MINI‑VAC2‑010N1 1.0 HP × 2 210 1 / 120V / 60Hz / 16A 21.77 —
MINI‑VAC2‑010S1 1.0 HP × 2 210 1 / 120V / 60Hz / 16A 21.77 —
MINI‑VAC2‑010H1 1.0 HP × 2 210 1 / 120V / 60Hz / 16A 21.77 —

Dual‑motor configuration — switchable low/high modes for noise & capture control.

Dimensions & Physical

Model Filter Type Cord Length (ft) Hose Length (ft) W × H × L (in)
MINI‑VAC2‑010N1 NanoTech (MERV 15) 6 10 16.5 × 18.5 × 35.5
MINI‑VAC2‑010S1 PolyTech (Spunbond Polyester, MERV 11) 6 10 16.5 × 18.5 × 35.5
MINI‑VAC2‑010H1 HEPA (MERV 17) 6 10 16.5 × 18.5 × 35.5

Hose and nozzle options available. Magnetic nozzle base included on standard units.

Cartridge Filter Specifications

Filter Type Part # Filter Area (sq ft) Efficiency Reusable
NanoTech (standard) S‑MV2‑0001 55 ~99.99% @ 0.5 µm Yes
PolyTech (Spunbond Polyester) S‑MV2‑0002 -- MERV 11 (lower) Yes (washable)
HEPA (optional) S‑MV2‑0003 40 ~99.97% @ 0.3 µm No

Choose filter based on application: NanoTech for welding fumes, HEPA for highest particulate capture, PolyTech where washable economy is desired.

Variants, Accessories & Notes

Variant / Part Filter Key Differences
MINI‑VAC2‑010N1 NanoTech (MERV 15) Standard, reusable nanofiber cartridge
MINI‑VAC2‑010S1 PolyTech (MERV 11) Washable spunbond polyester; cost‑effective
MINI‑VAC2‑010H1 HEPA (MERV 17) Highest filtration; disposable HEPA cartridge
Accessories — Auto on/off gun kit; spare cartridges; replacement hoses & nozzles

Specifications compiled for Shopify product pages and marketing sheets. Confirm part #'s with official Diversitech documentation before printing labels.
