Fiber Laser Nozzle Problems: When to Replace It
Fiber laser maintenance guide
A nozzle can look usable and still distort assist-gas flow. This guide shows how collision damage, an oval bore, adhered spatter, poor centering and damaged seating surfaces affect the cut—and when replacement is safer than cleaning.
Seven signs the nozzle needs attention
Direction-dependent cut
One direction cuts acceptably while another produces more dross or roughness. Off-centering or an asymmetric bore can be a cause, but optics and machine alignment must also be checked.
Sudden dross increase
A collision, adhered spatter or damaged tip can change gas delivery immediately. Compare against the last known-good setup before editing parameters.
Unstable height signal
Spatter on the nozzle surface, a loose nozzle, damaged ceramic or an impact can interfere with reliable stand-off control.
Off-center test result
If the approved centering routine cannot be completed or the result drifts after adjustment, inspect the nozzle, holder and ceramic components.
Visible tip deformation
A bent, flattened, cracked or tilted tip is a replacement condition. Do not attempt to straighten it.
Gas use rises
An incorrect, enlarged or damaged bore can disturb gas flow. Also check leaks and verify the installed nozzle matches the process table.
Four common fiber laser nozzle failure modes
1. Collision damage
A nozzle can contact a tipped-up part, warped sheet, slag accumulation or a feature that was not avoided by the programmed path. Even a minor bump can change nozzle centering. A stronger impact can bend the tip, damage the thread or transfer load into the ceramic ring and holder.
Do not restart by changing speed, focus or gas pressure. First inspect the nozzle for tilt, cracks, dents and looseness. Then check the ceramic ring or nozzle holder, complete the manufacturer's centering and height-calibration routine, and make a controlled test cut. Replace any mechanically damaged component rather than forcing it back into shape.
2. Oval, enlarged or nicked orifice
The nozzle bore sets part of the outlet geometry for the assist-gas jet. If the opening is no longer round, the jet can become asymmetric. A small nick can make the process sensitive to travel direction; a burned or enlarged opening can change gas demand and weaken control of the kerf.
Use magnification and a known-good nozzle for comparison if the defect is difficult to see. If roundness, edge condition or size is questionable, replace the nozzle. Filing, drilling, reaming or polishing the bore changes the geometry and can create a false sense of repair.
3. Spatter and slag adhesion
Spatter can adhere to the tip during piercing, unstable cutting or a failed cut. Accumulation may disturb gas flow and can affect capacitive distance regulation. Smooth, consistent nozzle surfaces are important because they reduce slag adhesion and support reliable sensing.
Clean only with the method and tools permitted by the machine or cutting-head manufacturer. Avoid abrasive methods that change the surface or bore. If residue cannot be removed safely, the surface is pitted or heat-damaged, or the cut remains unstable after cleaning and centering, install a known-good nozzle.
4. Off-centering and poor seating
The laser beam and nozzle opening must be aligned according to the cutting-head procedure. A nozzle that is not centered can create uneven gas flow around the beam. Damaged threads, debris on a seating face, a loose retainer or a compromised ceramic ring can also prevent the nozzle from running true.
Many modern machines automate nozzle inspection and centering. Others provide a model-specific manual routine. Use the procedure in the machine manual; do not copy a generic tape or beam test from another machine.
What to inspect after a nozzle collision

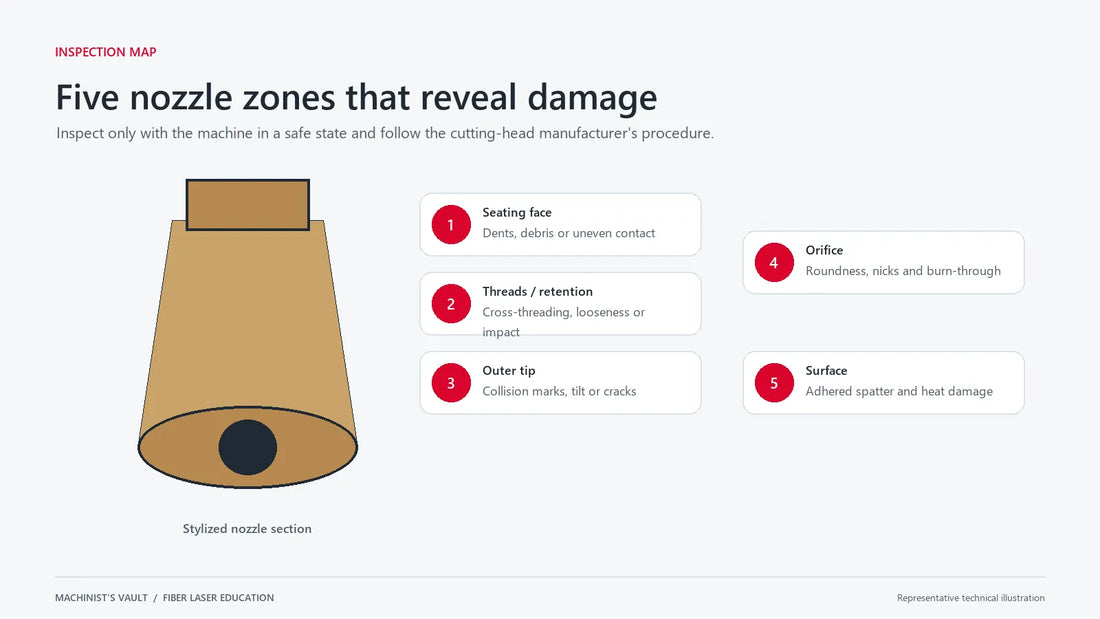

- Nozzle tip and bore: look for dents, cracks, flattening, ovality, nicks, enlargement and adhered spatter.
- Threads and seating face: confirm the nozzle installs smoothly and seats as intended without force or looseness.
- Ceramic ring or nozzle holder: inspect for cracks, chips, looseness, electrical damage or displaced contact surfaces.
- Centering and height control: complete the approved centering, capacitive calibration and stand-off checks.
- Protective window: if the event included a failed cut, heavy spatter or abnormal process light, inspect the protective optic using the OEM procedure.
- Controlled test cut: use a known material and approved parameter set before returning the machine to unattended or high-value production.
Clean, recenter or replace?
| Condition | Recommended action | Do not |
|---|---|---|
| Loose removable residue; no visible damage | Clean by the approved method, inspect, recenter and test | Use aggressive abrasive tools |
| Oval, nicked, enlarged or burned bore | Replace the nozzle | File, drill, ream or polish the orifice |
| Bent, cracked or tilted tip | Replace and inspect the holder/ceramic | Straighten and reuse |
| Cross-threading or damaged seating face | Replace; inspect the mating component | Force the nozzle into place |
| Good appearance but failed centering | Try a known-good nozzle; inspect ceramic, holder and head | Compensate with gas pressure |
| Known-good nozzle but cut remains poor | Continue system diagnosis: gas, optics, focus, height, motion and material | Assume every cut defect is a nozzle problem |
When the nozzle is not the root cause
A new nozzle will not fix every laser-cutting defect. If a correctly matched, centered and calibrated nozzle produces the same symptom, move to the rest of the process instead of replacing more nozzles.
Gas delivery
Check the approved gas, pressure and flow under load, supply capacity, leaks and contamination. Use the assist-gas guide.
Optics and focus
Inspect the protective window by the approved method and confirm focus position, lens condition and parameter selection.
Material and motion
Confirm grade, thickness, surface condition, nesting, sheet support, speed, piercing and machine motion before changing hardware.
Live nozzle and ceramic-ring options
These are genuine catalogue images and live product families. Match the cutting-head model, thread, body diameter, height, layer construction and orifice before ordering.
D28 H15 M11 nozzle family
Single- and double-layer options with multiple orifice sizes for compatible cutting heads.
View D28 nozzles
17 mm nozzle sets
Multiple single- and double-layer variants for compatible heads. Confirm the current part marking.
View 17 mm nozzles
Ceramic rings and holders
Inspect the ceramic component after a collision or unstable capacitive-height signal.
View ceramic ringsNeed help identifying the replacement?
Send the cutting-head brand and model, nozzle marking, thread/body dimensions and clear photos of the current nozzle and ceramic ring. We will help narrow the compatible family.
Fiber laser nozzle problems FAQ
Can a bent fiber laser nozzle be straightened?
No. A bent nozzle may no longer seat, center or deliver gas correctly. Replace it and inspect the ceramic ring or holder and height-control calibration after the collision.
Can I clean laser-nozzle spatter with sandpaper?
Do not use an abrasive method unless the machine builder explicitly permits it. Abrasion can change the nozzle surface or orifice geometry. Follow the OEM cleaning procedure and replace the nozzle if residue or damage remains.
What does an off-center nozzle do to cut quality?
It can make assist-gas flow asymmetric around the beam, which may create direction-dependent dross, roughness or instability. Complete the approved centering procedure and inspect the nozzle, ceramic ring and holder.
How often should a fiber laser nozzle be replaced?
There is no universal hour or shift interval. Replace by condition, process stability and the manufacturer's maintenance criteria. Collision frequency, piercing, material and contamination all affect service life.
Should I increase gas pressure when a nozzle is damaged?
No. Pressure cannot restore a round, centered nozzle or repair mechanical damage. Install and center the correct nozzle, then use the approved process parameters.
What else should be checked after a nozzle collision?
Inspect the ceramic ring or holder, threads and seating, complete nozzle centering and height calibration, and inspect the protective window if the event involved a failed cut or heavy spatter.
