Fiber Laser Assist Gas: Oxygen vs Nitrogen vs Air

Fiber laser process guide

The right assist gas is not simply the cheapest gas or the gas that cuts fastest. It is the gas that produces the required edge on your material, using a parameter set and delivery system approved for your machine.

Quick answer: Which assist gas should you use? Use oxygen when the approved process relies on an active, heat-producing reaction, commonly for mild steel. Use nitrogen when an oxide-free edge is the priority, especially on stainless steel and aluminum. Use compressed air only when the machine builder supports it and the air system can deliver the required flow, pressure, dryness and cleanliness. Always start with the OEM cutting table rather than a universal pressure or thickness chart.

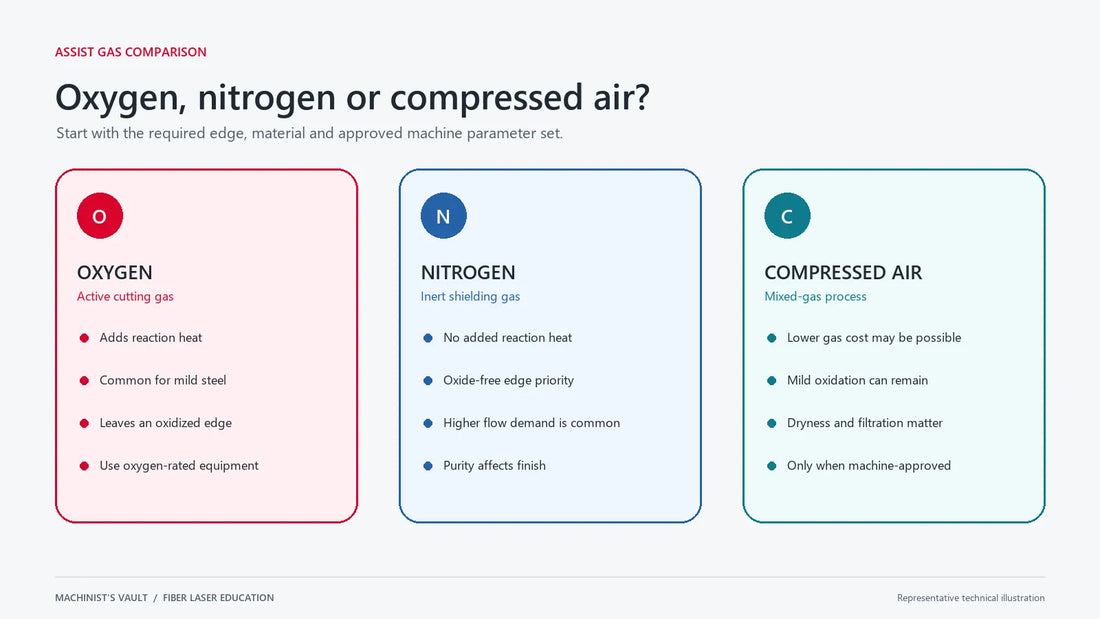

Oxygen, nitrogen and compressed air comparison for fiber laser cutting — representative technical illustration
Assist-gas roles at a glance. Actual results depend on the machine, cutting head, material, thickness, nozzle and approved process data.

Fiber laser assist gas comparison

Factor Oxygen (O2) Nitrogen (N2) Compressed air
Process role Active gas; supports cutting with an exothermic reaction Inert gas; melts and ejects material without added reaction heat Mixed-gas process; mostly nitrogen with oxygen present
Typical edge Oxidized edge Oxide-free edge when purity and parameters are correct Mild oxidation is possible; validate downstream requirements
Common starting use Mild or carbon steel on an approved oxygen table Stainless steel, aluminum and parts requiring a clean edge Approved applications where system capacity and cost justify it
System demand Oxygen-compatible supply, valves, piping and clean handling Often high pressure and high flow; purity matters Compressor, receiver, dryer and filtration sized for cutting demand
Main caution Oxide may affect coating, welding or appearance Gas consumption and supply capacity can drive cost Do not assume ordinary shop air is dry, clean or adequately sized

There is no single gas that wins every job. Material chemistry, thickness, laser power, focus, cutting speed, nozzle geometry and downstream finishing all change the answer. That is why this guide avoids universal pressure and thickness limits: the machine builder's current process database should control setup.

How oxygen assist gas works

Oxygen is an active cutting gas. Once the laser heats the steel to ignition temperature, oxygen reacts with the material and releases additional heat. That reaction supports the cut while the gas jet removes molten oxide from the kerf. This is why oxygen remains an important starting process for many mild-steel applications.

The tradeoff is oxidation. An oxygen-cut edge is chemically different from a nitrogen-cut edge, and that oxide layer may need removal before some coating, welding or appearance-critical operations. More pressure is not automatically better: excessive oxygen pressure or a poor parameter combination can increase sideways burning, dross or cut instability.

Oxygen safety: oxygen service requires compatible equipment and clean handling. Oil, grease and other readily oxidizable contamination must be kept out of oxygen systems. Follow your machine builder, gas supplier and applicable local safety rules for cylinders, bulk supply, piping, ventilation and maintenance.

How nitrogen assist gas works

Nitrogen is an inert shielding gas. The laser provides the cutting energy, and the nitrogen jet ejects molten metal while helping shield the kerf from the surrounding atmosphere. The result can be an oxide-free edge, which is valuable when parts move directly to bending, welding, coating or a cosmetic assembly.

That clean edge comes with system demands. Nitrogen cutting commonly needs substantially more flow than oxygen cutting, and the available pressure must remain stable at the machine while the cut is running. Purity also matters: oxygen contamination can discolour stainless edges and contribute to dross. Use the purity specified by the machine builder rather than assuming every industrial nitrogen grade is equivalent.

When compressed air can make sense

Compressed air is not an inert gas. Ambient air is primarily nitrogen but contains oxygen, so air cutting behaves as a mixed-gas process and can leave some oxidation. On a machine with a supported air-cutting package, suitable parameters and adequate gas preparation, it can reduce purchased-gas cost for selected jobs.

The limiting question is often not compressor horsepower alone. The complete system must hold the required flow and pressure at the cutting machine, through the dryer, filters, storage and piping, during real production. Oil, water and particles can affect valves, the cutting process and sensitive optical components. Test the finished edge against coating, welding and customer requirements before changing a production route.

Compressed-air readiness checklist for fiber laser cutting — representative technical illustration
A compressor is only one part of a production-ready air-cutting system.

Choose by material and required edge

Fiber laser assist gas material and edge-finish decision matrix — representative technical illustration
Finish-first assist-gas selection framework. Confirm the final choice against the machine's approved cutting data.

Mild steel

Oxygen is a common starting point when the process benefits from reaction heat. Nitrogen or approved gas-mix processes may be selected when an oxide-free edge or faster high-power process is required.

Stainless steel

Nitrogen is the usual starting point when edge colour, corrosion performance and minimal rework matter. Purity, flow and pressure capacity become critical as the process demand rises.

Aluminum

Nitrogen is a common clean-cut starting point. Approved compressed-air or gas-mix processes can be viable on some systems, but edge oxidation, burr and downstream requirements must be validated.

Assist gas, nozzle bore and nozzle layer work together

The nozzle shapes the gas jet that enters the kerf. Its bore size influences gas quantity and jet behaviour, while nozzle condition and concentricity affect how evenly that gas surrounds the beam. A damaged bore, spatter on the tip, an incorrect layer style or poor centering can imitate a gas-supply problem.

Do not choose a nozzle only by the word “oxygen” or “nitrogen.” Match the thread, body diameter, height, single- or double-layer construction and orifice to the cutting head and the OEM process table. If the required geometry is unknown, identify the cutting head and current nozzle marking before ordering.

Assist gas path through a fiber laser cutting head and nozzle — representative technical illustration
Stable assist-gas delivery depends on the full path from supply to kerf, not the regulator reading alone.
Read the nozzle selection guide Identify your cutting head

Five checks before changing assist gas

  1. Define the finished-edge requirement. Decide whether oxidation is acceptable and whether the part will be painted, welded, plated or left visible.
  2. Load an approved process. Use the machine builder's cutting database for the exact material, thickness, laser power, gas and nozzle.
  3. Verify supply under load. Confirm pressure and flow at the machine during a cut, not only static pressure at the source.
  4. Inspect the cutting head consumables. Check nozzle condition and centering, ceramic-ring integrity and protective-window cleanliness.
  5. Run and document a controlled test. Evaluate dross, striation, edge colour, cut consistency and the next manufacturing operation before releasing production.

Symptoms that can look like the wrong gas

Symptom Check before changing gas Why it matters
Dross or incomplete separation Approved speed/focus, actual flow under load, nozzle bore and nozzle centering The gas jet may not be removing melt uniformly
Edge discolouration Nitrogen purity, leaks, gas-line contamination and correct process selection Small oxygen content can affect appearance on stainless
Cut quality changes through the shift Supply capacity, receiver cycling, dryer performance, filters and nozzle heating A system can pass a short test but drift during sustained production
Sudden loss of cut quality Nozzle collision, bore damage, spatter, ceramic ring and protective window A consumable fault can change beam or gas delivery immediately
Good cut, poor coating adhesion Edge oxidation and the coating supplier's preparation requirement Cut appearance alone does not prove the edge is ready for coating

For a broader fault-isolation sequence, use the fiber laser cut-quality troubleshooting guide. It separates gas, nozzle, focus, optics and motion causes so you do not replace parts by guesswork.

Recommended laser consumables to check

These are genuine catalogue images and live product families. Confirm cutting-head compatibility and OEM nozzle geometry before ordering.

Bodor 17 mm fiber laser nozzle set

17 mm laser nozzle sets

Single- and double-layer options in multiple orifice sizes for compatible heads. Match the current nozzle marking before ordering.

View 17 mm nozzles
Bodor 25 mm fiber laser nozzle

25 mm laser nozzles

Live nozzle family with multiple bore and layer configurations for compatible cutting heads.

View 25 mm nozzles
Machinist's Vault fiber laser protective window

Protective windows

Dimensions and power-rated options for multiple cutting-head families. A contaminated window can create cut defects that resemble a process problem.

Shop protective windows

Not sure which nozzle fits?

Send the cutting-head brand and model, a clear photo of the current nozzle, its thread/body dimensions, or the part number. We will help narrow the compatible family before you order.

Request a nozzle recommendation Browse all laser nozzles

Fiber laser assist gas FAQ

Is oxygen or nitrogen better for laser cutting?

Neither is universally better. Oxygen is an active gas commonly used with approved mild-steel processes and leaves an oxidized edge. Nitrogen is inert and is the usual starting point when an oxide-free edge is required. Choose against the material, finish and OEM cutting table.

Can compressed air replace nitrogen on a fiber laser?

Only on applications and equipment approved for air cutting. The full air system must provide the required pressure and flow at the machine while also meeting dryness, oil and particle limits. The edge can show mild oxidation, so downstream coating and welding requirements need validation.

Why does nitrogen use more gas than oxygen?

In nitrogen fusion cutting, the laser melts the material and the gas jet supplies the kinetic energy that ejects the melt without help from an exothermic oxygen reaction. This often requires higher flow and pressure, depending on the machine, material and nozzle.

Does assist-gas purity affect cut quality?

Yes. Oxygen purity can influence oxygen-cut productivity, while oxygen contamination in nitrogen can discolour stainless edges and contribute to dross. Use the grade and supply specification required by the machine builder.

Does nozzle size change assist-gas flow?

Yes. Nozzle bore and geometry influence gas quantity and jet shape. The correct bore, single- or double-layer design, stand-off and centering must match the cutting head and approved process.

What should I check before increasing gas pressure?

Check the approved parameter set, gas supply under load, nozzle bore and centering, nozzle damage, ceramic-ring condition and protective-window cleanliness. Increasing pressure cannot correct a damaged or off-centre nozzle.
