Fiber Laser Cut Quality Troubleshooting Guide
When a familiar program suddenly produces dross, burrs, rough striations or an incomplete cut, random parameter changes usually make diagnosis slower. A better fiber laser cut quality troubleshooting process starts with the visible defect, checks the consumables and machine condition, then changes one approved process variable at a time.
This guide gives fabrication teams a practical order for investigating poor fiber laser cut quality. Use it together with the machine manufacturer's cutting chart and service procedure. Material grade, thickness, laser power, cutting head, assist gas and software strategy all affect the correct settings, so there is no universal pressure, focus or speed value that is safe for every machine.
Start With the Cut Defect, Not a Guess

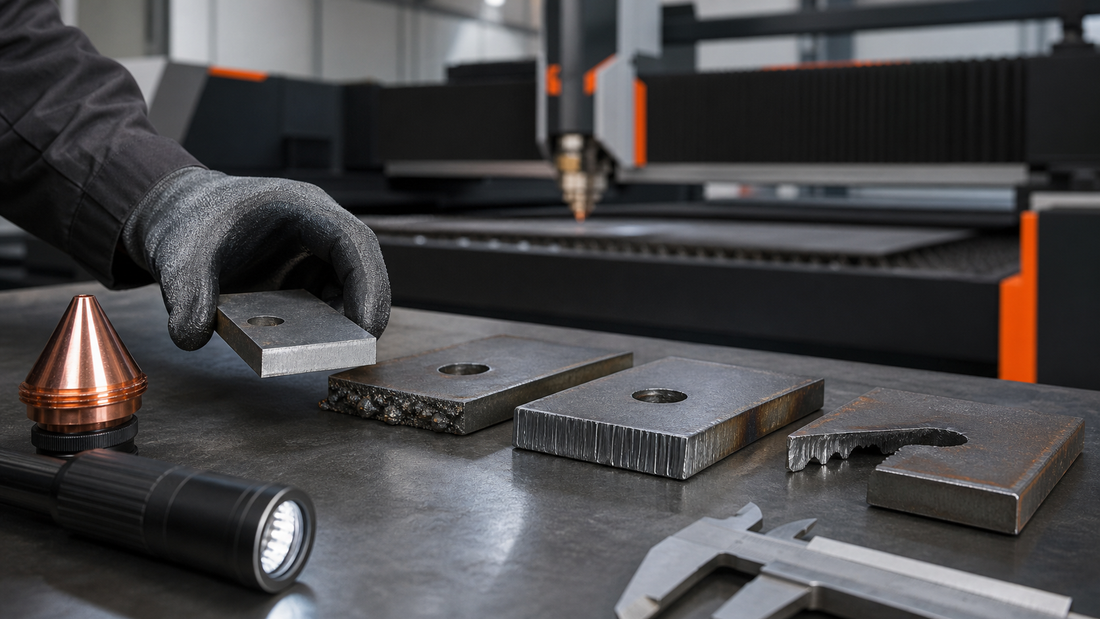

Keep the failed part and compare it with a known-good sample from the same material. Record the program, material grade and thickness, gas type, nozzle, focus value, cutting height and any alarms. Also note whether the defect appears around the entire profile, only on one side, only at corners or only after the machine has been running for a period.
That pattern matters. A defect that follows every direction can point toward material condition, nozzle damage, focus, speed or gas delivery. A defect that is much worse on one side of a square or circle can justify checking nozzle centring and alignment before rewriting the process. The Mate Precision laser cut quality guide shows how changing one variable affects the cut face and emphasizes checking nozzle condition and centring.
Fiber Laser Cut Quality Troubleshooting Chart
| Visible symptom | Check first | Then verify |
|---|---|---|
| Heavy dross under the part | Nozzle damage or contamination; material and gas supply | Approved focus, speed, height and gas settings for the exact job |
| Fine burr or sharp underside edge | Nozzle centring, orifice condition and gas delivery | Focus and feed rate against the manufacturer's parameter chart |
| Rough or unusually deep striations | Dirty material, nozzle condition and protective optic | Focus position, cutting height, speed and process stability |
| Good on one side, poor on another | Nozzle centring and head alignment | Nozzle seat, ceramic ring and cutting-height calibration |
| Incomplete cut or lost cut | Correct program, material, nozzle and gas availability | Optics, focus, height control, power delivery and service alarms |
| Cut quality degrades during the shift | Nozzle heat damage, spatter and protective-window contamination | Cooling, gas quality, head purge and machine condition |
Step 1: Confirm the Material and Program
Before touching the cutting head, verify that the loaded program matches the actual material grade and thickness. Check for mill scale, rust, oil, protective film, coatings or surface contamination that can change the cutting reaction. Confirm that the sheet is flat and supported correctly, and that slag on the slats is not lifting the workpiece or interfering with height control.
Material condition can produce a poor edge even when the machine is healthy. SSAB's laser cutting process examples include dirty sheet, poor nozzle condition, nozzle misalignment and insufficient power among the conditions to evaluate. Start with the simplest physical evidence before assuming an internal optical failure.
Step 2: Inspect the Nozzle Before Changing Parameters
The nozzle is where the laser beam and assist gas meet the workpiece. A nicked edge, oval orifice, adhered spatter, damaged thread or poor seat can distort the gas jet and produce dross, burrs or directional cut quality. TRUMPF's cutting-nozzle guidance connects nozzle geometry and gas flow with part quality, burr formation and gas consumption.
- Place the machine in the approved safe maintenance state.
- Remove the nozzle without touching or opening unrelated optical components.
- Inspect the orifice under bright magnification for spatter, dents, heat damage or loss of roundness.
- Confirm the nozzle type, layer, thread, height and orifice match the program and cutting head.
- Inspect the nozzle seat and ceramic ring for damage, looseness or contamination.
- Install a verified replacement when the orifice or seating surface is damaged.
- Perform the manufacturer's nozzle-centring procedure before returning to production.
For layer and diameter selection, use the related fiber laser nozzle selection guide. Do not treat a visually similar nozzle as interchangeable; small differences in thread, height, seat or internal geometry can matter.
Step 3: Check the Protective Window and Clean Handling
A contaminated protective window can reduce delivered energy, create local heating and make a previously stable process inconsistent. Look for haze, spatter, fingerprints, burn spots or coating damage using the manufacturer-approved inspection method. If the window is permanently marked, cracked or discoloured, replace it instead of polishing aggressively.
Follow the complete protective window cleaning and replacement guide before opening the optical drawer. A dirty bench, reused swab or unfiltered shop air can introduce new contamination during maintenance.
Step 4: Verify Assist Gas Delivery
Assist gas must reach the cut zone at the correct type, purity, pressure and flow for the programmed process. Check the selected gas, supply pressure, regulator condition, valves, hoses, restrictions and alarms. Verify that the nozzle and orifice size match the manufacturer's process chart.
Do not compensate for a damaged nozzle or restricted supply by repeatedly increasing pressure. Excessive or insufficient delivery can both destabilize the process, and the correct value depends on the material, thickness, gas, nozzle and machine. Restore the hardware and supply condition first, then return to the approved baseline.
Step 5: Check Focus, Height, Speed and Power Systematically
Only after the material, nozzle, centring, optic and gas system have been checked should process variables be adjusted. Save the known baseline and change one variable at a time within the manufacturer's permitted range. Cut the same small test geometry in the same area of the sheet, then record the result.
- Focus position: compare the cut face and dross pattern with the machine's focus test procedure.
- Cutting height: verify capacitive calibration, nozzle condition and stable standoff.
- Cutting speed: return to the approved chart before making a controlled test.
- Laser power and duty strategy: confirm the correct process layer and check for source or head alarms.
- Corner and small-feature strategy: separate a geometry-specific issue from a defect affecting straight cuts.
When the Problem Is Probably Not a Consumable
Escalate to qualified service support when verified consumables and approved baseline settings do not restore quality, or when the machine reports optical-temperature, height-control, cooling, gas, head-communication or source alarms. Also stop when contamination appears beyond the normal protective-window location, centring will not remain stable, cut quality changes as the machine warms, or the defect repeats after a known-good cutting head setup.
Document sample parts, alarm history, material details, the program layer, photos of the nozzle and protective window, and every controlled test. That evidence helps service personnel distinguish between a process issue and a mechanical, optical, electrical or calibration problem.
Build a Repeatable Cut Quality Check
- Keep a labelled known-good sample for common materials.
- Photograph the failed edge before deburring it.
- Record the nozzle specification and replacement date.
- Track protective-window inspection and replacement.
- Log the baseline process values and one-variable test results.
- Keep verified spare nozzles, windows and clean optical supplies available.
Combine this process with the fiber laser consumable replacement interval guide so recurring defects become maintenance data instead of repeated guesswork.
Recommended Troubleshooting Spares
Keep verified consumables available so a quick substitution can separate a worn part from a process or machine issue.
Raytools-compatible D28 Nozzles
Single- and double-layer options across multiple orifice sizes for supported heads.
Fiber Laser Protective Windows
Confirm the cutting-head model, position, dimensions and coating before purchase.
Lens Cleaning Swabs - 100 Pack
Use a fresh purpose-selected swab for each controlled optical cleaning pass.
Compatibility help: Send the cutting-head model, current part number, dimensions and a clear photo.
Get Help Matching a PartFrequently Asked Questions
What causes dross on the bottom of a fiber laser cut?
Common categories include nozzle damage or misalignment, material condition, assist-gas delivery, focus, cutting height and speed. Check the physical consumables and approved baseline before changing process values.
Why is a laser cut good on one side and poor on the other?
A strong directional difference can justify checking nozzle centring, the nozzle seat, ceramic ring and cutting-head alignment. Follow the manufacturer's centring and calibration procedures.
Should I increase gas pressure to remove burrs?
Not automatically. First confirm the nozzle, gas type, supply condition and approved process chart. Both insufficient and unsuitable gas delivery can create poor results, and the correct value depends on the complete application.
Can a dirty protective window cause poor cut quality?
Yes. Contamination or optical damage can reduce transmitted energy and cause unstable performance. Inspect and service it using the cutting-head manufacturer's procedure.
When should I call for service?
Escalate when known-good consumables and approved baseline settings do not restore quality, when centring will not remain stable, when contamination appears beyond the serviceable protective window, or when the machine reports head, source, cooling, height-control or gas alarms.
Troubleshoot in a Known Order
Good troubleshooting protects uptime because it turns a visible cut defect into a controlled sequence. Preserve the sample, verify the material and program, inspect the nozzle and centring, check the protective window and gas system, then test one approved variable at a time. Browse our fiber laser consumables or request compatibility help when a verified replacement is needed.
