Fiber Laser Protective Window Selection Guide

A fiber laser protective window—also called a protective lens or protective glass—is a replaceable optical barrier that helps keep spatter, smoke residue and process contamination away from more expensive optics inside the cutting head. Correct selection requires the cutting-head model, window position, outside diameter, thickness, optical specification and approved power/application. Size alone is not enough.

What Does a Fiber Laser Protective Window Do?

The protective window is a serviceable barrier in the cutting head’s beam path. It is designed to help isolate sensitive focusing or collimating optics from contamination generated by cutting, welding or cleaning. Depending on the head, it may also be part of a pressure boundary for assist gas. That means the window must meet more than a simple diameter requirement.

TRUMPF describes protective glass as both a barrier that keeps spatter, smoke and vapour away from the lens and a pressure window for cutting gas. Precitec lists protective windows by head compatibility, outside diameter, thickness, wavelength range and cutting-head position. These manufacturer examples support the practical rule: treat the window as an optical and mechanical component, not generic round glass.

A contaminated or incorrect window can absorb more energy, distort the process, trigger monitoring alarms or expose expensive internal optics. A clean, correctly specified window helps preserve beam transmission and gives the operator a replaceable first line of defence.

Five Checks Before Ordering a Protective Window

The most common ordering error is matching only one attribute—usually machine brand or diameter. Use all five checks below as an evidence chain.

1. Cutting-head manufacturer and model

Photograph the complete label on the cutting head, including its model and serial number. Do not rely only on the machine badge. The same machine brand may use different head families across power levels, production years and configurations. A retrofitted machine may use a head from another manufacturer.

2. Position inside the head

Confirm whether the window is the lower or process-side barrier, an upper or collimation-side barrier, or part of a welding or cleaning head. Two windows with similar dimensions may not be approved for the same position.

3. Outside diameter and thickness

Use the approved drawing whenever possible. If a measurement is required, report it in millimetres as diameter × thickness—for example, D30 × 5 mm. Use calibrated equipment and avoid handling the optical surfaces. Measuring an old part proves only its dimensions; it does not establish coating, material or power rating.

4. Optical specification and application

Match the specified wavelength range, coating, optical material, application and permitted power. Protective windows used with fiber and disk lasers are normally designed for near-infrared laser wavelengths, but the approved range and power level are head-specific. Never infer high-power suitability from thickness or colour.

5. Original part, cartridge or holder identification

Record the OEM part number and the cartridge or drawer that retains the window. Some heads use dedicated exchange cartridges, seals or monitoring features. Confirm whether the replacement is supplied as bare glass, installed in a holder or intended for an existing cartridge.

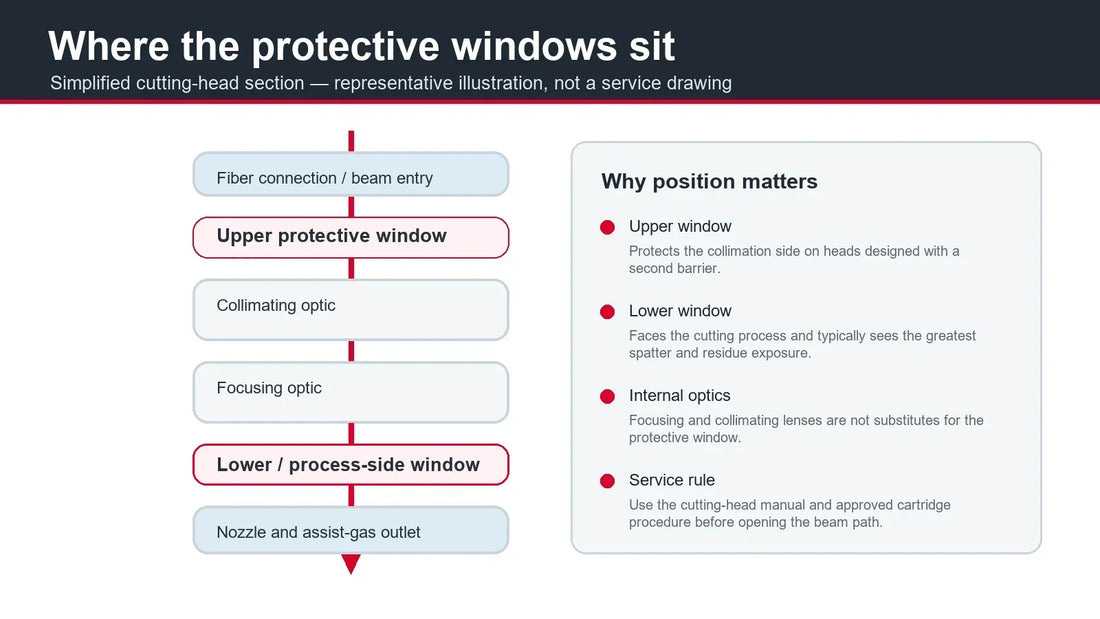

Upper vs. Lower Protective Windows

The lower or process-side window faces the cutting zone and is commonly exposed to spatter, smoke residue and contamination entering near the nozzle. It often requires frequent inspection. The upper window, when present, protects the collimation side or another part of the beam path. Its exposure pattern and service procedure can differ.

Position matters because a cutting head may specify different dimensions, holders, coatings or power limits for each barrier. For example, Precitec lists a 24.4 × 2 mm window for the collimation side of particular ProCutter 2.0 and ProCutter Zoom configurations, while other protective glasses are identified as process-side parts for defined head families. Use the exact head documentation rather than transferring a specification from one location to another.

Focusing and collimating lenses are internal optics, not routine substitutes for protective windows. If contamination is visible beyond the protective barrier, stop and use the manufacturer’s service procedure. Continuing to operate can turn an inexpensive consumable issue into an optical-assembly repair.

How to Measure a Fiber Laser Protective Window

1. Work from documentation first. Check the cutting-head manual, parts list, cartridge label and original packaging.
2. Record the exact position. Note upper, lower/process-side, welding, cleaning or another specified location.
3. Measure the outside diameter. Report the value in millimetres and do not round a close measurement to a common nominal size.
4. Measure thickness carefully. Use a suitable gauge without scratching or contaminating the optic.
5. Photograph the part and holder. Take square-on photos of both faces, the edge, cartridge and cutting-head label.
6. Keep optical properties separate. Dimensions do not identify coating, grade, wavelength or power capability.

If the old window is cracked, overheated or heavily contaminated, do not use it as the only reference. Damage and residue can distort measurements, while a previously installed wrong part can perpetuate the original error.

Common Protective-Window Sizes in the Machinist’s Vault Catalogue

The following examples show the range of dimensions carried in the current catalogue. They are not universal cross-references. Confirm the head, position, material/coating and power option before choosing a variant.

Machinist’s Vault’s main protective-window product currently groups dozens of size and power combinations in one selector. That makes it useful when the required dimensions and specification are already known. If they are not, use the recommendation form instead of guessing.

When Should a Protective Window Be Replaced?

There is no reliable universal hour count. Inspection frequency and service life depend on the process, material, head design, piercing conditions, maintenance discipline and the amount of contamination reaching the cartridge. Condition and cutting results matter more than a calendar alone.

Replace the window when the approved inspection identifies haze, pits, scratches, coating damage, burn marks, cracks or contamination that cannot be removed safely. Also investigate the window when cut quality changes suddenly without a material or parameter change, monitoring values drift, or the head reports protective-glass contamination.

Do not polish a laser protective window, use shop towels, wipe dry particles across the surface or substitute a household cleaner. TRUMPF’s published cleaning guidance calls for a clean environment, careful handling and removal of loose particles before solvent cleaning. Precitec’s optics manual likewise warns that improper cleaning, poor-quality agents and aggressive cleaning can cause damage.

Repeated contamination is not solved by consuming windows faster. Check the cartridge, seals, purge or cutting gas, nozzle condition, process stability and whether contamination has moved deeper into the head. Escalate to qualified service when the approved operator-level checks do not identify the cause.

For the full handling procedure, read How to Clean a Fiber Laser Protective Window. For a broader spare-parts schedule, use the Fiber Laser Consumable Replacement Intervals guide.

Protective-Window Products

These are genuine Machinist’s Vault catalogue listings. Product photos show the listings themselves; the diagrams above are educational illustrations.

Multi-Brand Protective Windows

Dozens of diameter, thickness and power combinations for compatible cutting-head applications.

View Size Options

Bodor Protective Lens Options

Part-numbered diameter and thickness variants for supported Bodor configurations.

View Bodor Options

Bystronic-Compatible Windows

Catalogue variants include 34 × 3, 36 × 5 and 50 × 2 mm options for specified power levels.

View Compatible Windows

Shop All Protective WindowsRequest a Recommendation

Protective Window Buying Checklist

• Machine manufacturer, model and production year
• Cutting-head manufacturer, model and serial number
• Upper, lower/process-side or other approved position
• Original part number and cartridge/holder number
• Outside diameter × thickness in millimetres
• Specified wavelength, coating/material and permitted power
• Application: cutting, welding or cleaning
• Photos of the head label, window, edge and holder
• Quantity required and any recurring contamination symptoms

Sending this information with the first request reduces back-and-forth and makes it easier to compare compatible catalogue options. Machinist’s Vault supplies shops across Canada and the United States; availability and pricing should be checked on the current product listing.
