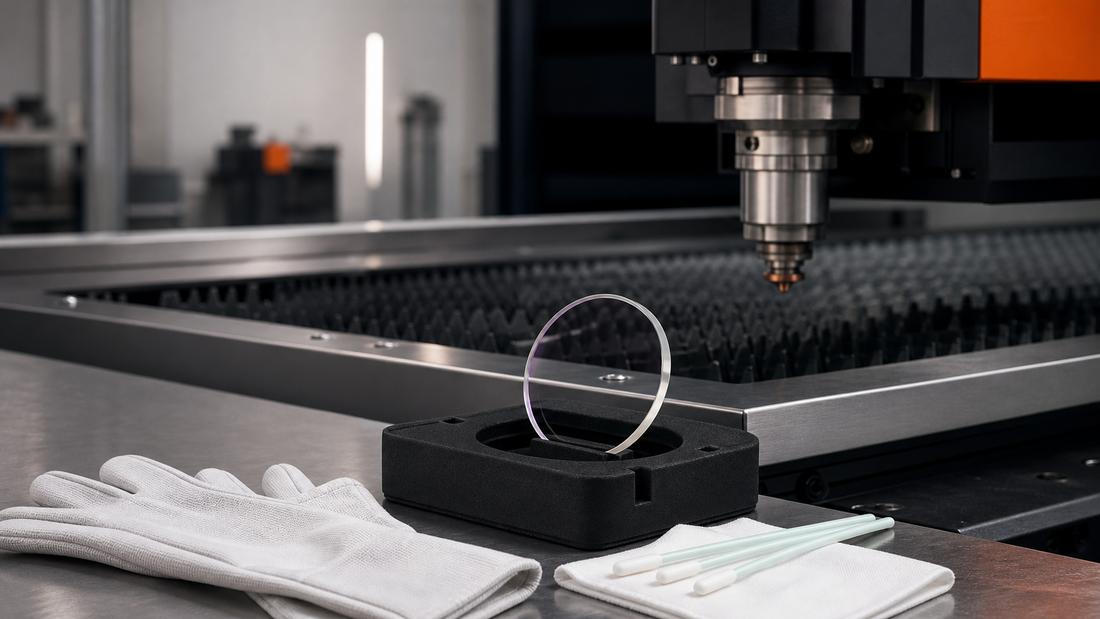

How to Clean a Fiber Laser Protective Window
A clean fiber laser protective window helps shield the cutting head's more expensive focusing and collimating optics from smoke, dust, metal spatter and process residue. Because this coated optic sits close to the cutting process, it is also one of the first consumables to inspect when cut quality changes, pierces become unstable or the cutting head reports an optical-temperature warning.
This guide explains how to inspect, clean and replace a protective window without introducing new contamination. Always follow the cutting-head manufacturer's procedure first: drawer design, approved cleaning fluid, orientation, torque and interlock steps can vary by machine.
What Does a Fiber Laser Protective Window Do?
The protective window - also called protective glass, cover glass or a debris shield - is a replaceable optical barrier between the cutting process and the internal lens system. It must transmit the laser wavelength with very low absorption while keeping contamination away from components that are more difficult and expensive to service.
That is why the window is not ordinary glass. Its substrate, anti-reflective coating, dimensions and installation position must suit the cutting head and power level. TRUMPF's protective-glass reference explains that the component also acts as a pressure window for cutting gas and must meet the optical and process requirements of the system.
Clean or Replace? Inspect Before You Touch It
Use bright, angled inspection light in a clean area. Loose dust or a removable film may justify cleaning if the machine manufacturer permits it. Replace the window when you find a crack, chip, burn mark, coating discoloration, permanent haze, embedded spatter or a hot spot that returns after cleaning. Repeated wiping cannot repair damaged coating and may make the surface worse.
| What you see | Practical response |
|---|---|
| A few loose particles, coating otherwise clear | Use the approved non-contact or optical-cleaning method |
| Light film or fingerprint | Clean only with approved fluid and lint-free optical material |
| Burn spot, rainbow discoloration or persistent haze | Replace the window and investigate the cause |
| Crack, edge chip or coating scratch | Do not reuse; install a verified replacement |
Before You Start: Build a Clean Maintenance Area
Most failed cleaning jobs begin before the optic is removed. Airborne grinding dust, oily gloves, a dirty workbench or an open cutting-head port can contaminate a window immediately. Prepare the area before placing the machine in its maintenance state.
- Use a clean, well-lit work surface away from welding, grinding and compressed-air blow-off.
- Have clean powder-free gloves or finger cots ready.
- Use only lint-free optical wipes or swabs approved for the optic.
- Confirm the approved cleaning fluid in the cutting-head manual. Do not substitute shop degreaser, glass cleaner or an unknown solvent.
- Keep the replacement window sealed until it is needed.
- Prepare a clean covered tray for the drawer, retaining ring and seal.
- Cap or close the cutting-head opening as instructed so dust cannot enter while the drawer is out.
How to Clean a Fiber Laser Protective Window
- Make the machine safe. Follow the machine's shutdown, maintenance-mode and lockout instructions. Confirm the beam cannot fire.
- Put on clean gloves. Touch only the drawer, holder or uncoated edge. Fingerprints can increase absorption and create a hot spot.
- Remove the window drawer carefully. Keep it level and note its orientation. Do not place it directly on a dirty bench.
- Protect the open cutting head. Use the manufacturer's cap, cover or prescribed method immediately.
- Inspect under angled light. Check both surfaces, the edge, the coating, the seal and the holder. A bright reflection makes haze and particles easier to see.
- Remove loose particles first. Use the non-contact method approved by the manufacturer. Do not blast the surface with unfiltered shop air.
- Use minimal approved fluid. Apply it to the optical wipe or swab as directed - not into the cutting head. Avoid flooding the holder or seal.
- Make one controlled pass. Move from the clean centre toward the edge or use the pattern specified by the manufacturer. Rotate to a fresh surface rather than dragging contamination back across the coating.
- Reinspect. If haze, a burn mark, a scratch or residue remains, replace the optic instead of polishing aggressively.
- Reinstall in the correct orientation. Verify the seal, retaining mechanism and drawer position. Remove tools and cleaning material before restoring the machine.
- Run the prescribed check. Complete the manufacturer's beam-centre, nozzle, optical-temperature or test-cut procedure before returning to production.
Five Protective Window Cleaning Mistakes to Avoid
- Using ordinary paper towel or shop rag. Fibres and abrasive particles can scratch optical coating.
- Using unfiltered compressed air. Shop air can carry oil, water and debris directly onto the optic or into the head.
- Cleaning in the fabrication area. An open drawer beside grinding or welding work can collect new particles faster than they are removed.
- Reusing wipes and swabs. A contaminated tip can drag grit across the coating.
- Trying to rescue a burned optic. Cleaning removes contamination; it does not repair thermal or coating damage.
Why Does a New Protective Window Get Dirty Quickly?
Rapid repeat contamination usually indicates a process or sealing problem rather than a bad cleaning schedule. Inspect the nozzle, ceramic ring, cutting parameters, piercing height, assist-gas quality, drawer seal and head purge according to the equipment manual. A damaged nozzle or poor beam centring can increase spatter. A worn seal or careless drawer change can allow ambient dust into the head.
Review the related fiber laser nozzle selection guide and our consumable replacement interval guide when contamination appears with burrs, unstable piercing or shortened nozzle life.
How to Choose the Correct Replacement Window
Do not order by diameter alone. Confirm the complete cutting-head model and every required specification:
- upper, middle or lower window position;
- diameter or length and width;
- thickness;
- holder or drawer type;
- laser power and wavelength requirements;
- coating specification and orientation;
- seal or retaining-ring requirements; and
- manufacturer part number, when available.
Protect the More Expensive Internal Optics
A protective window is designed to be the serviceable barrier. If contamination passes the seal or an operator leaves the head open, focusing and collimating lenses can become affected. Those internal optics are not routine operator consumables on many cutting heads. Stop and follow the manufacturer's service procedure when contamination appears beyond the protective-window location.
Shop Fiber Laser Optics and Cleaning Supplies
Build a clean, model-matched maintenance kit
Machinist's Vault supplies fiber laser protective optics, lens-cleaning swabs, nozzles and related cutting-head consumables. If you are unsure about compatibility, send the cutting-head brand and model, current part number, dimensions, laser power and a clear photo of the existing package or holder.
Recommended Products
Use the machine manual first, then confirm window dimensions, coating and installation position before purchase.
Fiber Laser Protective Windows
Confirm the complete cutting-head model, dimensions and installation position.
Lens Cleaning Swabs - 100 Pack
Use a fresh, purpose-selected swab for each controlled cleaning pass.
Bodor 30kW Upper Protective Lens
A model-specific upper protective optic for supported Bodor cutting heads.
Compatibility help: Not sure which part fits? Send us the model, dimensions and a photo.
Get Help Matching a PartFrequently Asked Questions
Can I clean a burned fiber laser protective window?
No cleaning method can repair a burned coating, crack, chip or permanent hot spot. Replace the window and investigate the reason for the damage before resuming production.
Can I use regular compressed air on laser optics?
Do not use general shop air unless the cutting-head manufacturer explicitly approves the air source and method. Oil, water and debris from the air system can contaminate the optic or the inside of the head.
How often should a protective window be cleaned?
Inspect according to the machine manufacturer's maintenance schedule and whenever cut quality, piercing stability or optical-temperature behaviour changes. Condition-based inspection is more reliable than an arbitrary universal interval.
Are protective windows and focusing lenses the same part?
No. The protective window is a serviceable barrier that shields the focusing and collimating optics. Verify the part name and installation position before ordering.
Make Clean Handling Part of Every Window Change
The safest maintenance routine is simple: prepare a clean area, make the machine safe, protect the open cutting head, touch only the optic's edge or holder, use approved optical-cleaning materials and replace any window with permanent damage. Keep the exact cutting-head specification with your maintenance log so the correct replacement can be identified quickly. For a broader parts map, continue with the complete fiber laser consumables guide.
