How to Identify a Fiber Laser Cutting Head
Before ordering a fiber laser nozzle, ceramic ring, protective window or seal, identify the installed cutting head rather than relying on the machine brand alone. The most useful evidence is a readable head data plate, exact model and generation, the old part number, installation position, dimensions, laser power and clear photographs of the assembly.
Find the data plate on the cutting head and record its manufacturer, complete model designation, generation and serial number. Then identify the consumable's position, copy every marking from the old part and verify its dimensions and interface. If any of those details conflict, stop and request a compatibility review instead of ordering by appearance.
Why the Machine Brand Is Not Enough
A fiber laser machine and its cutting head are related but separate assemblies. A machine builder may install different cutting-head families across model years, power levels or regional configurations. A replacement head may also have been installed during the machine's service life. As a result, two machines with the same badge can require different nozzles, ceramic rings or optics.
Head generations matter too. Precitec's own catalogue separates ProCutter, ProCutter 2.0, ProCutter Thunder, ProCutter Zoom and ProCutter Zoom 2.0. Within the ProCutter 2.0 family, its listings show different ceramic and nozzle interfaces, including KT X with an M15×1 thread and KT XB with an M11×0.75 thread. This is a useful real-world example: even a correct head-family name may need a generation, interface or original part number before the consumable is confirmed.

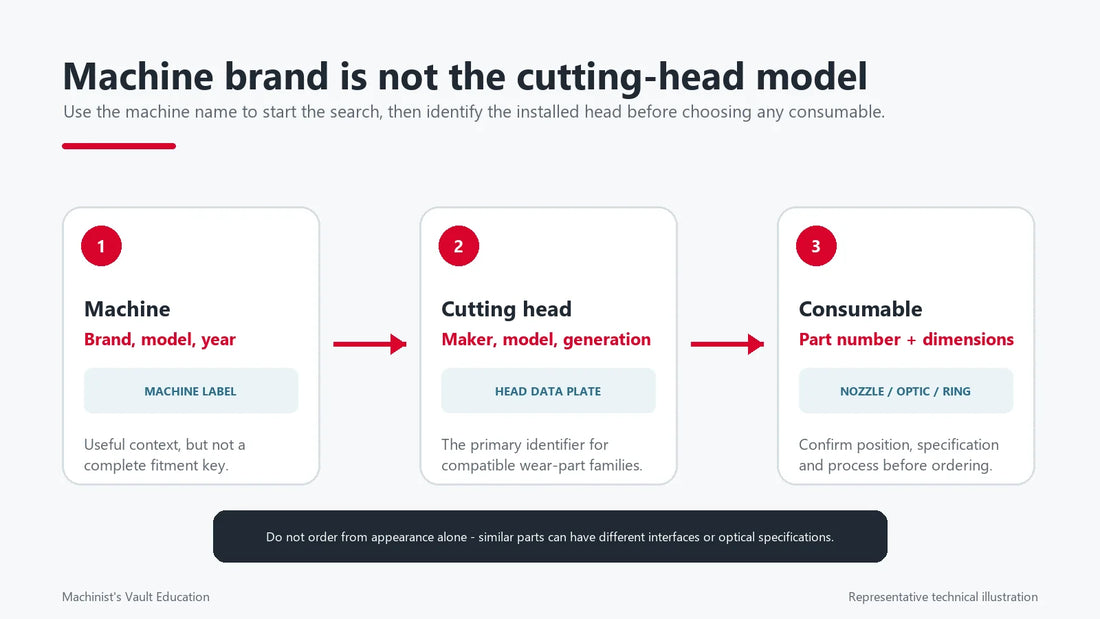

The safest identification chain is:
- Machine: manufacturer, model, production year and serial number.
- Cutting head: manufacturer, exact model, generation, serial number and rated configuration.
- Consumable: part type, installed position, original part number, dimensions and interface.
- Process: laser power, material, thickness, assist gas and any manufacturer-approved specification.
Where to Find the Fiber Laser Cutting-Head Model
Look for a permanent data plate, engraved label or printed identification label on the body of the cutting head. It may be visible from the front or side of the machine, or it may require moving the head to an approved service position. Follow the machine manufacturer's shutdown and access procedure; do not reach into an active enclosure or move guarded components simply to take a photograph.
Record the label exactly as shown. Do not shorten a model name or omit suffixes. A suffix can identify a power class, head generation, regional version, sensor arrangement or optical configuration. If the head has separate labels on the body, motor, sensor or cartridge, photograph all of them and let the supplier determine which fields affect fitment.
| Information | Why it matters | Best evidence |
|---|---|---|
| Head manufacturer | Establishes the compatible product family. | Head data plate, not the machine badge. |
| Exact model and generation | Separates similar-looking heads and revised interfaces. | Clear square-on label photograph. |
| Serial number | Can help resolve production revisions or service history. | Full serial field with no cropped digits. |
| Laser power | Important for approved optical and process specifications. | Machine documentation and head configuration. |
| Original part number | Usually stronger evidence than appearance or dimensions alone. | Part, package, service record or approved parts list. |
| Installed position | Upper and lower windows or seals can differ within one head. | Photograph the cartridge, drawer or assembly before removal. |
Take These Six Photos Before Requesting a Match
- Cutting-head data plate: photograph the entire label square-on, without glare.
- Machine data plate: include machine model, production year and serial context.
- Installed lower assembly: show how the nozzle, ceramic and holder connect before disassembly.
- Old part markings: photograph both sides and every number, letter, dash and suffix.
- Part beside measuring tools: provide caliper readings rather than a ruler-only estimate.
- Cartridge or drawer: document the protective window's position, orientation and holder style.
How to Identify Each Cutting-Head Consumable
Fiber laser nozzles
For a nozzle, record the thread or interface, overall height, outside diameter, orifice diameter and whether it is a single- or double-layer design. The nozzle must also suit the approved process. A nozzle that screws into the holder is not automatically correct: outlet geometry, centering, layer construction and height can affect gas delivery and the relationship between the beam and kerf.
Start with the head model and approved nozzle family, then choose orifice size from the machine's process data. Our fiber laser nozzle selection guide explains single versus double layer and process considerations after the head family has been identified.
Ceramic rings and nozzle holders
Record the head family, outer and inner diameters, height, thread, electrical contact arrangement and holder profile. The ceramic is part of the nozzle-support and capacitive-sensing assembly; the correct shape and electrical/mechanical interface matter. Do not replace it with a similar-looking ring based only on outside diameter.
Machinist's Vault carries separate fiber laser ceramic-ring families for common cutting heads. For example, catalogue variants for Raytools-compatible rings map different diameters to specific BM and BS head families. That relationship should be verified against the installed head and old part, not inferred from the machine brand.
Protective windows
Identify whether the window is process-side or collimation-side, then record outside diameter × thickness, original part number, cartridge or drawer, coating or optical specification, application and approved power. Two windows can share dimensions and still differ by position, coating or permitted laser power.
Precitec's official catalogue illustrates this clearly: it lists a 24.4 × 2 mm collimation-side protective glass for ProCutter 2.0 and ProCutter Zoom 2.0, while other ProCutter protective glasses are process-side and have different dimensions and power/wavelength specifications. Use our protective-window selection guide for the full matching process.
O-rings, seals and locking rings
Record the exact assembly location, original part number, inside diameter, cross-section, material and condition. Do not treat cutting-head O-rings as generic shop hardware. A seal's dimensions and material affect fit, gas sealing and contamination control. Locking rings also require the correct thread and head generation; a ring intended for one ProCutter generation should not be assumed compatible with another.
Internal focusing and collimating optics
Internal optics require the head model, focal specification, dimensions, coating, wavelength/application and power information specified by the head manufacturer. These are not selected by visual similarity. If contamination is beyond a serviceable protective window, follow the manufacturer's service procedure or use qualified support rather than opening the optical train in a dusty production area.
Use This Fitment Decision Tree Before Ordering
- Read the cutting-head label. If the label is missing or unclear, stop and request help.
- Name the part and its position. “Protective window” is incomplete if the head uses both process-side and collimation-side windows.
- Match the old part. Compare the complete part number, dimensions, thread/interface and holder or cartridge.
- Confirm the process specification. Check power, optical requirements, material and assist gas where relevant.
- Resolve every conflict. Do not choose whichever detail seems closest. Conflicting evidence means the match is not yet confirmed.
Worked Example: Why the Head Generation Changes the Order
Suppose a shop reports only that it has a “Precitec head” and needs a ceramic ring plus nozzles. That is not enough. The operator photographs the head label and confirms ProCutter 2.0. The old ceramic then shows the KT XB interface and M11×0.75 thread. Precitec's catalogue pairs that ceramic with specific classic HP/CS/DS nozzle electrodes, while its KT X ceramic uses an M15×1 interface and another nozzle family.
The correct action is to order from the confirmed head-and-interface combination—not to choose the first ceramic labelled “for ProCutter 2.0.” The same logic applies to a Raytools, Bodor, Bystronic, Trumpf, Amada or other cutting-head system: exact model and installed configuration beat a broad brand match.
Common Identification Mistakes
Shop Real Consumable Families After Identification
These are genuine Machinist's Vault catalogue examples, not generated product images. Confirm compatibility before ordering.
17 mm Fiber Laser Nozzles
Single- and double-layer catalogue variants with specific orifice sizes and part numbers.
View Nozzle Options
Fiber Laser Ceramic Rings
Multiple part-numbered diameters and connection-seat options for specified applications.
View Ceramic Rings
Multi-Brand Protective Windows
Diameter, thickness and power combinations for compatible cutting-head applications.
Choose a WindowBrowse all nozzles · Browse ceramic rings · Browse protective windows · Browse all fiber laser parts
Fiber Laser Cutting-Head Identification FAQ
Where is the model number on a fiber laser cutting head?
It is normally shown on a data plate, engraved label or printed identification label on the head body. Photograph the entire label and record every suffix. Follow the machine's approved shutdown and access procedure before entering the enclosure.
Can I order laser consumables using only the machine brand and model?
Not reliably. A machine model may use different heads across power levels, years or service replacements. Confirm the installed cutting-head maker, exact model and old consumable before ordering.
Are two nozzles compatible if they have the same diameter?
No. Thread, height, orifice, layer construction, outlet geometry and approved head family can differ even when the outside diameter matches.
What if the cutting-head label is missing or unreadable?
Do not guess. Send clear photographs of the full head, lower assembly, connectors, cartridges and existing consumables, plus accurate measurements and the machine's service records. A supplier or service provider may be able to identify the family, but confirmation is required before installation.
Is a protective window part number better than its dimensions?
The approved part number is usually stronger evidence because it can encode position, coating and application. Dimensions remain important for cross-checking. Both should agree with the cutting-head documentation.
What should I send Machinist's Vault for a compatibility recommendation?
Send the machine and cutting-head labels, head serial number, laser power, part type and position, original part number, measured dimensions and clear photos of the installed assembly and removed part.
Technical Sources
- Precitec — products organized by cutting-head family
- Precitec — ProCutter 2.0 consumable and interface listings
- Precitec — optics manual
- TRUMPF — genuine spare-parts guidance
