What Is Perlite Powder in Filtration?
Perlite powder can be processed into a lightweight filter aid that forms a porous, permeable cake. In liquid filtration it is commonly used as a precoat, body feed or both. In selected air-filtration systems, a compatible perlite precoat can help protect filter media from difficult dust.
Perlite is not a substitute for correctly selected filter media, and it should not be added to a collector without confirming the equipment, process, dust hazards and operating procedure.
Quick answer: Perlite filter aid is made from expanded volcanic glass that is milled and classified into controlled particle-size grades. Its irregular particles build a porous cake that captures suspended solids while maintaining flow. The grade, dosage and method must be proven for the specific filtration process.
What Is Perlite Powder?
Perlite is a naturally occurring volcanic glass. When suitable ore is heated, water trapped in the structure expands and produces a lightweight, cellular mineral. Filter-aid grades are then milled and classified so their particle-size distribution and permeability can be matched to a filtration task.
The term perlite powder is broad. Horticultural perlite, construction aggregate and filtration-grade perlite are not interchangeable. Filtration requires a grade manufactured and documented for that use.
Low bulk density
Expanded perlite provides a large cake volume from relatively little mass, which can simplify handling and reduce spent-cake weight in suitable processes.
Open flow paths
Irregular particles interlock while leaving many small passages through the filter cake.
Clarity versus flow
Finer grades generally target finer solids at lower permeability; coarser grades generally support faster flow with less fine-particle capture.
How Perlite Filter Aid Works
A filter septum - commonly a screen, cloth, leaf, candle or other support - is not always intended to capture all process solids by itself. Fine or compressible solids can quickly blind its surface. A filter aid builds a more permeable cake above that support.
- Precoat: A slurry of filter aid is circulated onto the clean septum before the process liquid begins. The deposited layer protects the support and establishes the initial filtering surface.
- Body feed: A controlled amount of filter aid is mixed into the process stream. As solids accumulate, the added particles help keep the growing cake porous.
- Cake removal: At the end of the cycle, the cake is discharged, scraped or otherwise removed according to the equipment design and process requirements.
The Perlite Institute's technical overview describes precoat and body-feed operation and emphasizes that realistic trials are needed to establish the correct grade and quantity.
Perlite in Liquid Filtration
Perlite filter aids are used with pressure and vacuum filtration equipment in applications such as beverages, edible oils, chemicals, water treatment and process-liquid clarification. The goal is usually to improve filtrate clarity, maintain an economical flow rate, extend the cycle before blinding or make the cake easier to release.
| Process decision | Why it matters | What to verify |
|---|---|---|
| Perlite grade | Controls the balance between particle retention and permeability | Target solids, required clarity, viscosity, flow rate and cycle length |
| Precoat quantity | Must cover and protect the septum without adding unnecessary resistance | Filter area, equipment instructions and trial data |
| Body-feed rate | Helps prevent a dense, compressible process cake | Solids loading, compressibility, feed consistency and pressure trend |
| Slurry mixing | Excessive shear can break down particles and change filtration behaviour | Agitator, pump and recirculation conditions |
| Food or beverage use | Processing aids require appropriate documentation and controls | Food-grade status, supplier documents and applicable regulations |
For food-processing context, the FDA has reviewed a composite filtration medium containing perlite for use as a processing filter aid. That does not make every perlite product food grade; the exact material and application still require proper documentation.
Can Perlite Be Used With Baghouse or Cartridge Filters?

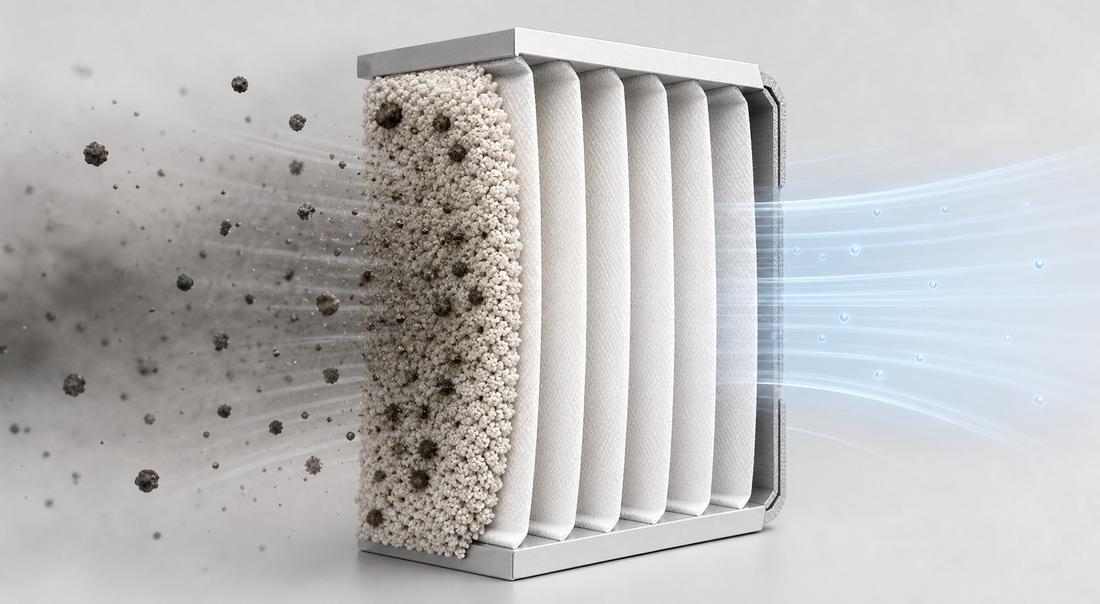

In some baghouse and cartridge-filter applications, filtration-grade perlite is introduced upstream as a precoat. The intent is to establish a sacrificial layer on new or cleaned media before difficult process dust reaches it.
A suitable precoat may help reduce direct contact between the media and sticky, oily, hygroscopic or very fine material. It can also help form a more releasable dust cake. The Perlite Institute's baghouse precoat guide discusses this use for fabric and cartridge filters.
Do not treat precoat as a universal fix. Added powder changes the collector's dust loading and differential-pressure behaviour. It can affect pulse cleaning, emissions, hopper loading, waste characterization and combustible-dust controls. Obtain approval from the collector manufacturer and the responsible process-safety or industrial-hygiene personnel before use.
When a precoat discussion may be appropriate
- New filters are exposed to a dust known to blind untreated media quickly.
- The process produces sticky, oily or moisture-sensitive particulate.
- The collector manufacturer provides an approved precoat procedure.
- A controlled trial can monitor airflow, differential pressure, emissions and cleaning response.
When to stop and obtain specialist review
- The dust is combustible, reactive, toxic or otherwise highly hazardous.
- The effect on the explosion-protection or suppression design is unknown.
- The cartridge warranty or collector documentation prohibits additives.
- The powder source and filtration grade cannot be verified.
- There is no safe injection, ventilation or exposure-control procedure.
Perlite vs. Diatomaceous Earth and Cellulose Filter Aids
| Filter aid | General characteristic | Selection consideration |
|---|---|---|
| Perlite | Lightweight expanded mineral with a range of permeability grades | Useful where cake volume, flow and release are important; test the grade under real conditions |
| Diatomaceous earth | Mineral filter aid with established fine-filtration applications and many grades | Compare clarity, flow, cake density, crystalline-silica documentation and disposal requirements |
| Cellulose | Fibrous organic filter aid that can help bridge and build structure | Consider temperature, chemistry, moisture, biodegradability and desired cake behaviour |
No filter aid is automatically best. Compare performance by volume as well as by mass, and evaluate filtrate quality, throughput, pressure rise, cake release, disposal and worker exposure.
Handling Perlite Powder Safely
Expanded perlite is a lightweight dust. Avoid creating airborne clouds during bag opening, transfer, mixing and injection. Use the supplier's current safety data sheet, enclosed transfer or local exhaust where practical, suitable eye protection and respiratory protection selected through the site's exposure-control program.
The NIOSH Pocket Guide entry for perlite identifies inhalation and eye, skin and upper-respiratory irritation as exposure concerns and lists current occupational exposure information. Product-specific crystalline-silica content and local requirements must also be reviewed.
Before approving a perlite filter aid
- Confirm it is a filtration grade with a current technical data sheet and safety data sheet.
- Define the process objective: clarity, flow, cycle length, media protection or cake release.
- Confirm chemical, temperature and food-process compatibility where applicable.
- Review dust, fire, explosion, emissions and disposal implications.
- Establish a controlled trial with baseline and post-application pressure and flow data.
- Train operators on transfer, mixing, injection, housekeeping and spill response.
Need Help With Cartridge Media or a Difficult Dust?
Machinist's Vault does not currently list perlite powder as a catalog product. We can still help review the cartridge geometry and media information involved in your collector application.
Application Review
Send the collector, cartridge and dust information for review.
Request Filter HelpPerlite Filtration FAQs
Is perlite itself the filter?
It becomes the active porous cake in filter-aid filtration, but it still needs a compatible support or septum. In an air collector it is normally a sacrificial precoat over the installed media.
Is horticultural perlite suitable for filtration?
No assumption should be made. Use a documented filtration grade with the particle-size and purity controls required by the process.
What is the difference between precoat and body feed?
Precoat is deposited on the filter before the process feed begins. Body feed is metered into the process stream so the growing cake stays porous.
Can perlite improve cartridge filter life?
In a suitable, approved application, a precoat can reduce direct contact between difficult dust and the media. Results depend on the dust, collector, cleaning system and procedure, so performance should be confirmed with operating data.
Does perlite change MERV efficiency?
A temporary dust cake may change field capture behaviour and pressure drop, but it does not change the cartridge's certified media rating. See our MERV guide.
How do I know when the cartridge still needs replacement?
Track differential pressure, airflow, cleaning recovery, leakage and physical condition using the cartridge replacement guide.
Evaluate the Whole Filtration System
Filter aid, cartridge media, cleaning settings and dust hazards must be reviewed together.
Technical references: Perlite Institute: Filter Aids Explained; Perlite Institute: Baghouse Precoat; NIOSH Pocket Guide: Perlite.
