When Should Dust Collector Cartridge Filters Be Replaced?
Dust collector cartridge filters should be replaced when they can no longer maintain the collector's required airflow and filtration performance within the approved operating range. Calendar age and operating hours can support planning, but pressure-drop trends, cleaning recovery, downstream leakage and physical condition provide better evidence.
This guide explains the most reliable replacement signs, how to distinguish a spent cartridge from a collector problem and what to document before installing a new filter set.
Quick answer: Replace cartridge filters when differential pressure stays outside the collector's normal range after approved cleaning, capture airflow remains low, dust bypass is visible, the media or gasket is damaged, or the filter no longer recovers after pulse cleaning.
Inspect the collector first. Failed pulse valves, air leaks, blocked hoppers, damaged seals and sensing problems can imitate a spent filter.
Is There a Standard Cartridge Filter Replacement Interval?
No single replacement interval works for every industrial dust collector. Two collectors with the same cartridge can experience very different filter life because production hours, dust concentration, particle behaviour, moisture, airflow, cleaning settings and maintenance practices vary.
A planned inspection interval is still useful, but it should trigger an evaluation rather than an automatic replacement based only on age. Establish a clean-filter pressure-drop baseline after installation, then trend the collector under comparable production conditions.
Seven Signs a Dust Collector Cartridge Needs Replacement
Pressure drop stays high
Differential pressure remains above the normal operating range after the collector completes its approved cleaning cycle and other restrictions are ruled out.
Capture airflow has declined
The hood or enclosure no longer captures dust effectively even after dampers, duct restrictions, fan condition and process changes are checked.
Dust appears downstream
Visible dust, emissions or contamination downstream can indicate torn media, failed seals, damaged end caps or an incorrectly seated cartridge.
Media is physically damaged
Torn, collapsed, abraded, burned, wet or oil-saturated pleats cannot be restored through routine pulse cleaning.
Cleaning recovery is shrinking
Each approved cleaning cycle produces less pressure-drop recovery, suggesting dust is embedded, the media is blinded or the pulse system needs attention.
Gaskets or end caps have failed
Cracked seals, separated end caps, corrosion or damaged mounting features can create bypass even when the media still looks usable.
The process has changed
New material, higher production, more moisture or a different dust profile may make the existing media or cartridge specification unsuitable.
Several signs agree
A replacement decision is strongest when operating data, physical inspection and cleaning response point to the same conclusion.
How to Use Differential Pressure for Replacement Decisions
Differential pressure is the resistance across the filter section. As dust accumulates, resistance usually increases. Pulse cleaning should remove part of the accumulated dust and recover some airflow, but the exact pattern depends on the collector, media and process.
| Observed condition | Possible meaning | Next check |
|---|---|---|
| Stable within normal range | The filter and cleaning system may be operating normally | Continue trending under comparable production conditions |
| Gradual increase with useful cleaning recovery | Normal dust loading may be occurring | Confirm pulse settings, hopper discharge and airflow |
| High with little recovery | Media may be blinded or cleaning may be ineffective | Inspect valves, compressed air, dust characteristics and filter condition |
| Sudden increase | Heavy loading, moisture, process upset or duct restriction may be present | Investigate the process and system before replacing filters |
| Unexpectedly low | Torn media, missing filter, bypass leak or sensing problem is possible | Stop and inspect according to the facility's safety procedure |
| New-filter value differs from baseline | Media, airflow, installation or instrument conditions may have changed | Verify fitment, seals, fan operation and the selected cartridge specification |
Trend readings at similar airflow and production conditions. A value taken during idle operation cannot be compared directly with a reading taken during peak dust loading without context.
Inspect the Collector Before Condemning the Filters
Replacing cartridges will not correct a mechanical or controls problem. Before ordering a new set, inspect the systems that affect loading and cleaning:
- Pulse valves, solenoids, manifolds and compressed-air supply
- Cleaning sequence, duration and pressure settings
- Differential-pressure tubing, ports and instruments
- Hopper, rotary airlock or dust-discharge system
- Duct blockages, closed dampers and fan or drive condition
- Door seals, tubesheet surfaces and cartridge mounting hardware
- Moisture, oil, sparks or process changes reaching the collector
If the existing filter specification is unclear, compare the cartridge dimensions using our filter measurement guide and review cellulose, polyester and nanofiber media before reordering.

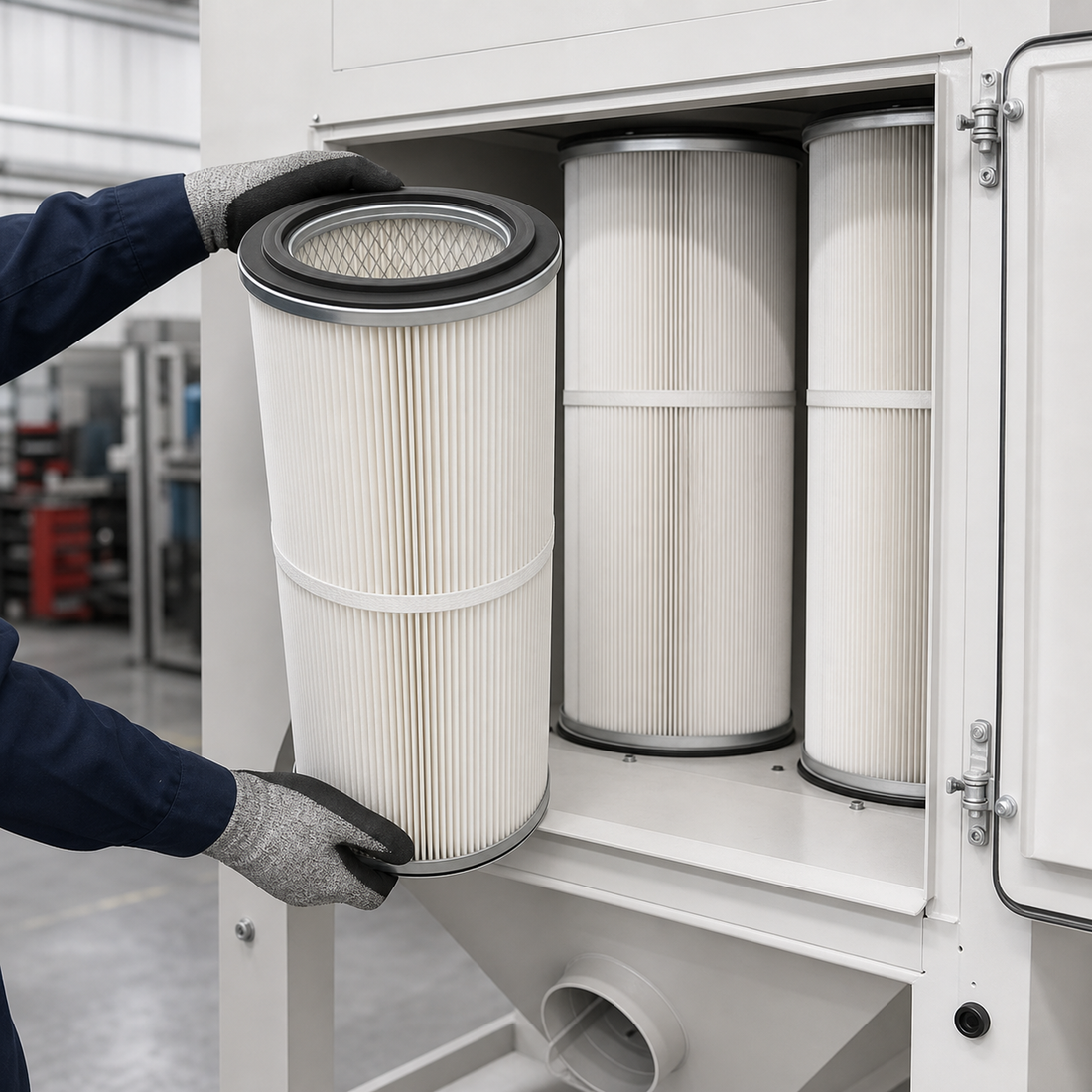

Cartridge Filter Replacement Workflow
- Plan the shutdown. Follow the facility's approved isolation, lockout, dust-handling and protective-equipment procedures.
- Record the old set. Note pressure drop, service history, observed failure, part numbers and which cartridges show abnormal loading.
- Inspect the collector. Correct pulse, discharge, sealing or sensing faults that could damage the new filters.
- Verify the replacement. Confirm dimensions, end caps, gasket, media and quantity. Use the MERV guide when efficiency is part of the specification.
- Clean sealing surfaces. Remove debris using the approved method without damaging the tubesheet or mounting hardware.
- Install a matched set. Follow the collector's orientation and compression requirements. Mixed restrictions can unbalance airflow.
- Restart and verify. Check for leaks, abnormal noise and correct pulse operation, then record the clean-filter pressure-drop baseline.
What Shortens Cartridge Filter Service Life?
| Service-life factor | How it affects the cartridge | What to review |
|---|---|---|
| High dust loading or production increase | Raises loading rate and cleaning demand | Capture design, air-to-media ratio and production conditions |
| Moisture, oil or sticky particulate | Can blind pleats and prevent dust release | Source control and application-matched media |
| Incorrect pulse cleaning | Under-cleaning leaves dust; excessive energy can damage media | Approved valve sequence, pressure and maintenance |
| Air leaks or damaged gaskets | Creates bypass and uneven loading | Door seals, tubesheet, gasket compression and hardware |
| Wrong media or MERV selection | Can change pressure drop, capture or dust-release performance | Actual dust, airflow and tested cartridge data |
| Hopper or discharge problems | Allows dust to re-entrain and reload the filters | Hopper level, airlock and dust-removal schedule |
Replacement Cartridge Options
Round Filter Cartridges
Review supported replacement sizes, configurations and application-matched media options.
View Round Cartridges
DFO-Compatible Oval Cartridges
Confirm the collector configuration, dimensions, gasket and media before replacing an oval filter set.
View Oval Cartridges
Replacement Cross-Reference
Send the collector, current part number, dimensions and failure details for review.
Request Filter HelpDust Collector Cartridge Replacement FAQ
How often should dust collector cartridge filters be replaced?
There is no universal interval. Replace them based on the collector's pressure-drop limits, cleaning recovery, airflow, leakage and physical condition, supported by service history.
Does high differential pressure always mean the filters are spent?
No. Failed pulse cleaning, blocked ducts, moisture, heavy process loading, hopper problems or sensing faults can also produce high readings. Inspect the system before replacing filters.
Can cartridge filters be cleaned instead of replaced?
Use only the collector and cartridge manufacturer's approved cleaning method. Unapproved washing, vacuuming or high-pressure air can damage media and seals or create dust-exposure hazards.
Should all cartridge filters be replaced at the same time?
Many collectors are designed to operate with a matched set. Mixing cartridges with very different restriction or condition can unbalance airflow. Follow the collector manufacturer's instructions.
What does unexpectedly low pressure drop mean?
It can indicate torn media, missing or incorrectly seated filters, bypass leakage or a sensing problem. Treat it as an inspection signal rather than assuming the collector is performing better.
What should be recorded after installing new filters?
Record the cartridge part number, media, quantity, date, initial pressure drop, airflow checks and any pulse settings. This becomes the baseline for future replacement decisions.
Can Machinist's Vault help cross-reference a replacement?
Yes. Use the filter request popup and provide the collector model, current part number, dimensions, gasket, media, dust and reason for replacement.
Replace on Evidence, Not the Calendar Alone
Use operating trends and inspection together, then confirm the replacement with the complete cartridge filter selection guide.
