Why Do Fiber Laser Ceramic Rings Use O-Rings? Fit, Failure Signs & Replacement

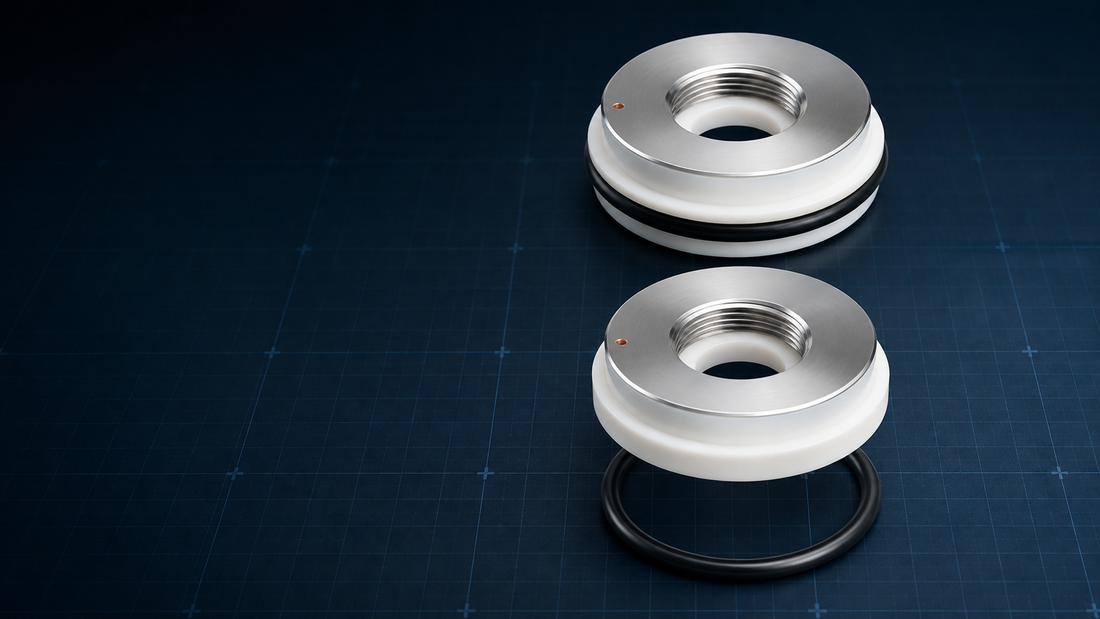

On the ceramic-ring assemblies used in many fiber laser cutting heads, the black O-ring sits around the outside circumference of the ceramic ring or nozzle holder. It is not an optical seal floating inside the cutting head. It forms the elastomer interface between the ceramic-ring assembly and the mating holder or bore.
This guide explains why fiber laser ceramic rings use O-rings, what happens when the seal is flattened or damaged, and how to identify the correct ring without relying on appearance alone.
Quick answer
The O-ring fits into the external groove around the ceramic ring. Depending on the cutting-head design, it helps the assembly seat consistently, provides a controlled circumferential seal and reduces unwanted movement or contamination paths at the mating interface. The ceramic ring itself still performs the electrical-insulation, nozzle-support and sensing-signal functions.
Where is the O-ring located?
The ceramic ring is installed near the nozzle at the lower end of the cutting head. Its white ceramic body electrically isolates the nozzle assembly, while its metal components and contact pin help pass the capacitive height-sensing signal. Ceramic manufacturer Innovacera describes the ceramic ring as a combination of the ceramic body, stainless-steel parts and copper contact components used for insulation, nozzle contact and signal transmission in its fiber laser nozzle-holder guide.
The black O-ring wraps around the ceramic ring's outer groove. When the ceramic-ring assembly is inserted into its holder, the O-ring is compressed between the outside of the ring and the mating bore. Exact groove geometry and seal function vary by cutting-head model, which is why the original part code and dimensions matter.
Why the ceramic-ring O-ring matters
| O-ring job | What correct fit supports | What can happen when it is wrong |
|---|---|---|
| Consistent seating | The ceramic-ring assembly sits repeatably in its intended bore or holder | A rolled or oversized seal can prevent the assembly from seating fully |
| Circumferential sealing | The outer interface closes as designed around the ceramic ring | A cut, flattened or undersized seal can leave an unintended path at the interface |
| Controlled fit | The assembly is supported without loose movement at the outer diameter | The wrong cross-section can make the fit either loose or excessively tight |
| Service protection | The ceramic and mating surfaces are installed without direct damage from a pinched seal | A trapped O-ring can crack, shear or load the ceramic unevenly |
The O-ring does not create the capacitive signal by itself. A cracked ceramic body, damaged copper contact, loose metal plate, contaminated nozzle or incorrect assembly can cause sensing problems even when the O-ring looks normal.
Signs the ceramic-ring O-ring needs attention
- Flattening or compression set: the ring no longer returns to a round cross-section after removal.
- Cracks or hardening: the surface looks brittle, checked or heat-aged.
- Cuts or missing material: the outer groove, a tool or forced installation has damaged the seal.
- Swelling: the ring has grown, softened or distorted after contact with an incompatible cleaner or lubricant.
- Rolling or pinching: part of the ring has escaped the groove during ceramic-ring installation.
- The ceramic ring will not seat fully: verify the O-ring size, groove cleanliness and assembly orientation before applying more force.
- Looseness after service: check that the specified seal and ceramic-ring dimensions are correct for the cutting-head model.
Why ceramic-ring O-rings fail
Compression set
Long service, excessive heat or an unsuitable elastomer can leave the O-ring permanently flattened. Parker identifies material choice, temperature, squeeze and service conditions as important factors in compression-set failures.
Incorrect diameter or cross-section
An O-ring can appear close to the right size but still be wrong. Too little cross-section may not provide the intended contact. Too much can prevent the ceramic ring from seating, roll the seal out of its groove or place uneven force on the assembly.
Installation over a dry or dirty surface
Dust, metal particles and hardened residue can cut the seal or hold it out of position. Use only the cleaning and lubrication method approved by the cutting-head manufacturer.
Sharp-tool damage
A pick or screwdriver can scratch the groove or nick the elastomer. A small cut may open further when the ceramic ring is inserted.
Reusing a flattened seal
If the removed O-ring has lost its round profile, feels hard or remains stretched, replace it. Reinstalling a service-aged seal can create a poor fit even when the ceramic ring itself is new.
How to inspect and replace it
Ceramic-ring O-ring checklist
- Stop the machine and follow the manufacturer's lockout and cutting-head service procedure.
- Remove the nozzle and ceramic-ring assembly only as directed for the exact head model.
- Photograph the installed O-ring and record the ceramic-ring or machine part code before removal.
- Inspect the white ceramic body for cracks or chips and check the metal plate and contact pin.
- Remove the O-ring without scratching the external groove.
- Clean the groove with the approved lint-free method.
- Compare the replacement's inside diameter, cross-section, material and part number.
- Seat the new ring evenly around the full circumference with no twist.
- Insert the ceramic ring without forcing it, then complete the machine builder's sensing and function checks.
Official Bodor parts listings separate ceramic rings and seal rings by material code. That is a useful reminder to match by the documented machine/head application rather than by colour or a visual estimate. See the Bodor GN3 accessories listing for an example of separate ceramic-ring and seal-ring part codes.
How to identify the correct O-ring
Send or record:
- Machine manufacturer, model and serial number
- Cutting-head model
- Ceramic-ring part number and dimensions
- O-ring part number, inside diameter and cross-section
- Clear photos of the ceramic ring, outside groove and removed O-ring
- The symptom that started after maintenance
The two listed Machinist's Vault O-ring specifications are not universal replacements. Confirm the documented part code and fit before ordering.
Bodor O-Ring Set
Replacement O-ring specifications for supported Bodor ceramic-ring applications. Match the part code and dimensions.
View O-Ring Options →
Bodor-Compatible Ceramic Rings
D32 M14, D28 M11, D31 M11 and D20.6 M8 options for supported cutting-head applications.
View Ceramic Rings →Related fiber laser guides
- Fiber laser consumable replacement intervals
- Fiber laser cut-quality troubleshooting
- Fiber laser nozzle selection guide
- Complete fiber laser consumables guide
Ceramic-ring O-ring FAQ
Does the O-ring go inside the ceramic ring?
No. On the assemblies covered here, it fits around the outside circumference in the external groove.
Can I replace the ceramic ring without replacing the O-ring?
Follow the cutting-head service instructions. If the old O-ring is flattened, cut, swollen, hardened or no longer fits the groove evenly, replace it with the approved specification.
Can the wrong O-ring affect height sensing?
Indirectly, it can prevent the ceramic-ring assembly from seating correctly. The sensing signal itself depends on the nozzle, ceramic-ring conductive components, wiring and control system, so diagnose the complete assembly.
