Fiber Laser Consumables Maintenance Checklist

Fiber laser maintenance guide

A repeatable fiber laser consumables maintenance checklist helps operators catch a damaged nozzle, cracked ceramic ring, contaminated protective window or low spare-parts level before it becomes scrap or unplanned downtime. Use this daily, weekly and monthly framework as a starting point, then align it with your machine builder and cutting-head manuals.

Quick answer: What should a fiber laser consumables maintenance checklist include? Before each shift, inspect the nozzle, protective-window status, cutting-head area, gas supply and first-cut result. Weekly, check nozzle centering trends, the ceramic ring, filters, gas lines and spare-part storage. Monthly, review calibration repeatability, connections, replacement records and minimum stock. After any collision or abnormal cut, stop, inspect the full consumable stack, correct the cause, recalibrate and make a controlled test cut.

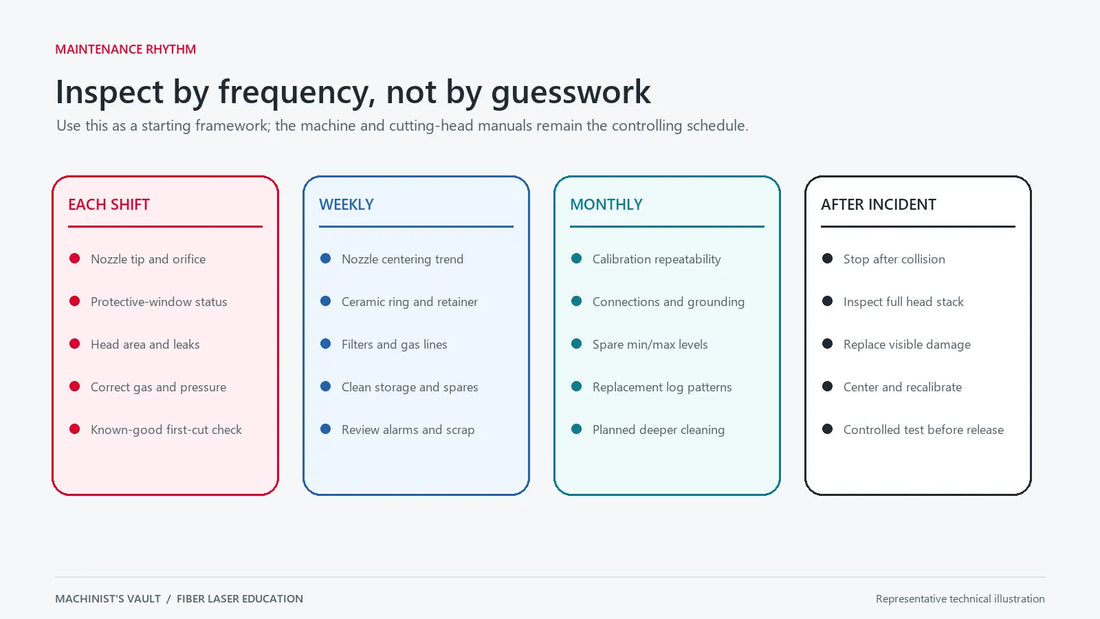

Fiber laser maintenance frequency map — representative technical illustration
A practical inspection rhythm. Increase frequency for heavy piercing, dirty material, long shifts or repeated collisions, and follow the OEM schedule where it is more specific.
Safety and scope: put the machine in the safe state required by its manufacturer before approaching the cutting head. Never bypass interlocks or open an optics area that requires trained service or clean-room handling. This checklist does not replace the machine, cutting-head or lens manufacturer's maintenance instructions.

Fiber laser consumables maintenance checklist

Frequency Operator checks Action or record
Before the first cut / each shift Inspect nozzle tip and orifice; confirm correct nozzle family; review protective-window status; check head area, gas selection and pressure; verify the first cut against a known-good result. Clean only by the approved method. Replace visible damage. Record any deviation before changing several parameters at once.
At shift change / daily Look for spatter, orifice distortion, loose seating, cracked ceramic, gas leakage, coolant leakage, unusual alarms and changes in cut edge or piercing. Quarantine questionable parts rather than returning them to a clean spare bin.
Weekly Review nozzle centering trend, ceramic-ring condition, retainer fit, gas lines, filters, lubrication points specified by the machine builder and clean storage practices. Compare alarm, scrap and consumable-use patterns by machine and shift.
Monthly Review calibration repeatability, electrical connections and grounding in the approved service scope, spare min/max levels, part identification and recurring causes in the maintenance log. Schedule deeper cleaning or service instead of waiting for a quality failure.
After a collision, failed pierce or abnormal cut Stop and inspect the complete stack: nozzle, ceramic ring, retainer, protective-window status, seating and visible head-side damage. Replace damaged parts, center and calibrate, then make a controlled test before production resumes.
Quarterly / annually Follow the machine builder's planned maintenance, safety-system checks, calibration, diagnostics, software updates and professional service requirements. Use the OEM interval even when it is more frequent than this general framework.

Bystronic's published maintenance guidance similarly separates daily visual/cleanliness checks, weekly gas/filter/lubrication checks, monthly calibration and electrical review, and deeper planned service. The important principle is not a universal hour count; it is a documented rhythm that reflects the machine's real workload.

Inspect the consumable stack, not one part in isolation

Fiber laser consumable inspection stack — representative technical illustration
Nozzle, ceramic ring, protective window, seals and storage practices interact. A fault in one layer can create a symptom elsewhere.

1. Nozzle inspection and centering

  • Inspect the tip and orifice for spatter, impact marks, distortion, thread damage and abnormal wear.
  • Confirm diameter, layer type and geometry match the approved cutting process. Use the fiber laser nozzle selection guide when identifying a replacement.
  • Confirm secure, clean seating. Do not force a nozzle across damaged or mismatched threads.
  • Check beam/nozzle centering by the machine builder's method after a nozzle change, collision or unexplained cut shift.

A nozzle can look usable while an oval or damaged orifice changes gas flow. If dross, burning, piercing or edge quality changes suddenly, use the nozzle problem and replacement guide before compensating with repeated process changes.

2. Ceramic ring and capacitive connection

  • Inspect the full circumference for cracks, chips, collision marks and repair attempts.
  • Check that the ring, metal contact surfaces and retainer are clean, secure and correctly seated.
  • Recalibrate through the approved procedure after the nozzle or related connection is moved or replaced.
  • Escalate repeated calibration failure; cable, grounding, preamplifier or controller faults can imitate a ring failure.

For fault isolation, see the fiber laser ceramic ring failure guide. Friendess notes that moving connection parts or changing the nozzle can require renewed capacitance calibration; the exact procedure and acceptable result remain machine-specific.

3. Protective-window inspection

  • Inspect through the machine's approved method for haze, dots, spatter, pitting, edge damage and thermal evidence.
  • Do not remove or clean a window automatically just because a shift ended. Unnecessary handling can introduce contamination.
  • Use only approved, lint-free supplies and cleaning fluid where cleaning is permitted.
  • Replace rather than polish or reuse a damaged optical surface.

Use the protective-window selection guide to confirm dimensions, thickness, coating and cutting-head compatibility. Internal optics and sealed head areas may require a trained technician.

4. Seals, O-rings and clean storage

Inspect accessible seals for cuts, flattening, swelling, hardness, contamination or a poor fit. Use the exact material and dimensions specified for the head or cartridge; a visually similar O-ring is not automatically compatible with the gas, temperature or groove. Keep windows sealed in original or clean protective packaging, separate verified nozzles by type and label ceramic rings by the exact compatible head.

What to do after a collision or sudden cut-quality change

Fiber laser consumables maintenance workflow — representative technical illustration
A controlled workflow protects the cutting head and creates a useful record instead of hiding the original cause.
  1. Stop and make safe. Do not keep cutting to see if the condition clears itself.
  2. Inspect before changing settings. Capture the alarm, material, thickness, gas, nozzle and defect while the evidence is fresh.
  3. Correct one confirmed cause. Clean only where approved; replace parts with visible or measured damage.
  4. Restore setup. Seat the parts correctly, center the nozzle and perform required calibration.
  5. Test against a baseline. Use a known material/process and confirm piercing, edge, dross and stand-off.
  6. Record the result. Note the installed part, cause, corrective action and test outcome.

If the defect remains, use the fiber laser cut-quality troubleshooting guide to separate consumable, gas, focus, optics, motion and material causes.

Stop-work and escalation conditions

Finding Operator response Why not to continue
Cracked/chipped ceramic ring or displaced contact Replace with the exact compatible component; center and calibrate Height sensing and seating can be unstable even if the head still moves
Distorted nozzle or visibly damaged orifice Replace; inspect collision cause and related stack Gas flow and beam clearance are no longer controlled
Pitted, burned or damaged protective window Replace by the approved clean procedure; inspect upstream cause Continued heat absorption can risk quality loss and more expensive optics
Calibration will not stabilize after reseating Escalate to trained service and diagnose cable, ground, contact and controller Changing process parameters does not repair an unstable sensing loop
Gas, coolant or head-area leak Stop and follow the builder's leak/service procedure Leaks can affect process stability and equipment safety
Damage appears beyond the operator-serviceable consumable area Protect the open assembly and call qualified service Uncontrolled access can contaminate or damage internal optics

Build a spare-parts system around the cutting head

Fiber laser spare consumables min max board — representative technical illustration
Identify, protect, control, reorder and record. A spare is useful only when it is clean, compatible and available.

Precitec identifies nozzles, protective glasses and ceramic parts as wear parts where correct supply matters. TRUMPF likewise notes that nozzle holder, nozzle and distance-sensor system must be coordinated. For every machine, maintain a verified bill of consumables tied to cutting-head model, wattage where relevant, OEM/reference number and measured dimensions.

Set minimum stock

Base the minimum on actual issue rate, lead time, shift intensity and the consequence of a stockout—not on a generic quantity.

Protect cleanliness

Keep optics sealed, nozzles separated and parts away from grinding dust, oil mist, fingerprints and mixed unidentified bins.

Use FIFO and a quarantine bin

Issue older sealed stock first. Move questionable or opened parts to a labelled review area instead of returning them to good stock.

Maintenance log template

Print this section or reproduce it in your maintenance system. One line per event is more useful than an undocumented box of failed parts.

Date / shift Machine + head Material / process Symptom or trigger Part inspected / replaced Part ID / lot Calibration + test result Operator



Review replacement intervals

Shop replacement consumables

Match parts to the exact cutting head and dimensions before ordering. Product photographs below show real Machinist's Vault catalogue items; compatibility varies by machine and head configuration.

Bodor compatible D28 H15 M11 fiber laser nozzles

D28 H15 M11 fiber laser nozzles

Single- and double-layer compatible options for supported cutting heads. Confirm bore and layer type before ordering.

View nozzles
Bodor compatible fiber laser ceramic ring

Fiber laser ceramic ring

A head-specific replacement component for the nozzle and sensing assembly. Verify geometry and reference number.

View ceramic ring
Fiber laser cutting protective window

Fiber laser protective windows

Replacement protective windows in multiple sizes. Match diameter, thickness, coating and head location.

View protective windows
Not sure which consumables fit? Send the cutting-head brand/model, machine model and wattage, current part number, dimensions and clear photos. We can help narrow the replacement before you order.
Open the full RFQ page

Fiber laser maintenance checklist FAQs

How often should fiber laser nozzles be inspected?

Inspect the nozzle before the first cut of each shift and after a collision, failed pierce or sudden cut-quality change. Increase frequency for long shifts, high piercing load or dirty material. Replace based on condition and the OEM process, not a universal time alone.

Should a protective window be cleaned every day?

Inspect it at the interval required by the machine and head manufacturer, but do not remove or clean it automatically when it is not needed. Unnecessary handling can introduce contamination. Use only the approved clean procedure, supplies and environment.

When should a ceramic ring be replaced?

Replace a ring with a crack, chip, burn mark, displaced contact, damaged seating surface or unstable fit. Also investigate it after a collision or repeated capacitance-calibration problem, while ruling out cable, grounding and controller faults.

Do I need to recalibrate after changing a nozzle?

Many capacitive height-control systems require calibration after the nozzle or sensing connection is changed or moved. Follow the machine's approved centering and calibration sequence; do not assume one procedure applies to every cutting head.

What fiber laser consumables should a shop keep in stock?

Common spares include verified nozzles, ceramic rings, protective windows and specified seals. Set minimum quantities from actual consumption, supplier lead time and downtime risk. Tie each part to a head model or approved reference so clean but incompatible stock does not create a false sense of coverage.

What should be recorded after a consumable replacement?

Record the date, machine and head, process, symptom or trigger, part and lot/reference, reason for replacement, centering/calibration result, controlled test result and operator. That history helps separate random damage from recurring setup, material or handling problems.

Need a verified replacement now? Use the recommendation form and include the head label, the removed component and measured dimensions.
